AC Ground Resistance Tester
- Range (Current): AC 5A~40A
- Current Resolution: 0.1A
- Accuracy: ±(2%+5d)
- Resistance Test Range: 0~600mΩ
- Resistance Test Resolution: 0.1mΩ
- Resistance Accuracy: ±(2%+5d)
- Frequency: 50Hz, 60Hz
- Output Voltage: ≤ 5V
- Output Power:
- 75VA (for input voltage of 110V)
- 150VA (for input voltage of 220V)
- Time: 0~999.9s
- Interface: HANDLER, RS-232C
- Power Supply: AC 110V/220V, 50Hz/60Hz
- Dimensions: 320x250x120mm
- Weight: 7kg
Includes (Standard Delivery):
- Main Unit: 1 piece
- Test Clamps: 2 pieces
Description:

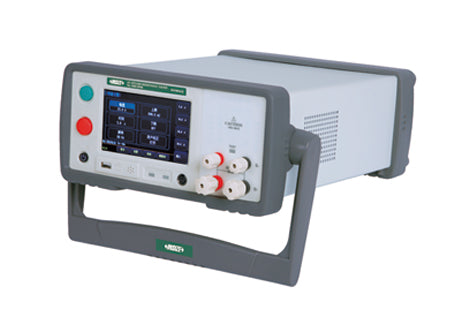

The AC ground resistance tester 9460-GR40 is used to measure ground resistance in electrical circuits. It features a 5-inch touch screen display and a comparator function with sound and light alarms for upper and lower limit warnings. It also includes correction and keyboard lock functions for enhanced safety during operation.
