Flow Cup Viscometer
| Κωδικός | Τιμή | Στοκ | |
|---|---|---|---|
| PCE-125/5 | €271,00 | Κ.Π. 5-8 εργάσιμες * |
* Κ.Π. : Κατόπιν Παραγγελίας
Τιμές χωρίς ΦΠΑ 24%
| Specifications |
|
| Model | PCE-125/5 |
| Internal vertical height | 43 ±0.1 mm |
| Nozzle internal Ø | 5.2 mm |
| Nozzle externally Ø | 7.6 ±0.5 mm |
| Measuring range (mm²/s) | 214 ... 1413 |
| Flow time (sec) ±0.2 | 20 ... 105 |
| Material |
cup: anodized aluminum nozzle: stainless steel |
| Role model | ASTM International Standard D1200, D333 and D365 |
| Dimension |
Ø inside 50 mm Ø outside 85 mm height 76 mm |
| Weight | about 320 g |

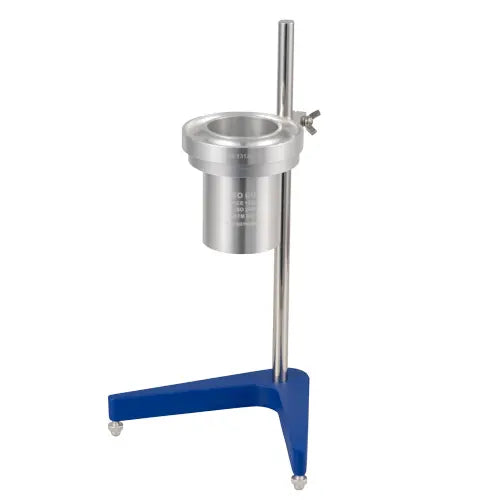

Ford Flow Cup Viscometer / International Standard ASTM D1200, D333 and D365 /

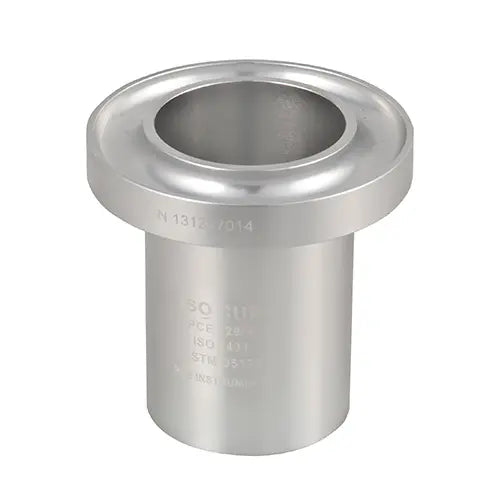

Anodized aluminum cup with replaceable stainless steel nozzle
Anodized aluminum cup with replaceable stainless steel nozzle

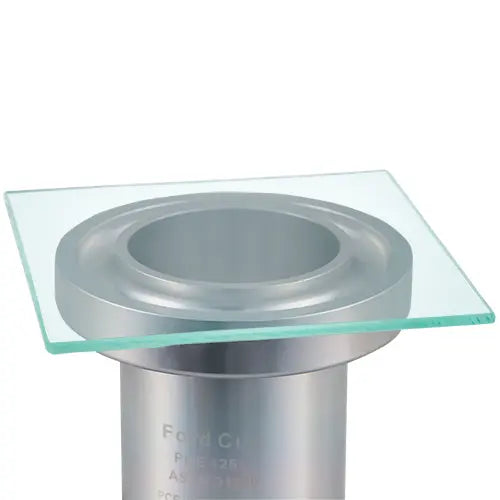

Flow cup viscosity meters are suitable for determining the flow time of Newtonian / marginally Newtonian fluids according to international standards and are often used in laboratories and industrial production. For measurement, the nozzle must be closed and the fluid to be measured must be poured into the flow cup. By placing the glass plate on the top of the cup, a gap is created which does not allow the flow of liquid and serves to place the cup on the tripod in order to measure the time. When the glass plate is then pulled from the flow cup, liquid flow from the nozzle begins and timing begins. Once the flow stops, the time measurement must also stop. For a relative price, this method is perfectly adequate in many areas. To ensure the accuracy of the cup, it is important to clean it thoroughly after each use. It is important to ensure that the surface inside the cup has not suffered any wear. Any scratches or remnants of dry material will affect further measurements.
- Anodized aluminum - satin finish
- Factory calibration certificate included
- Overflow channel
- Complies with international standards
- Base available optionally
- Factory calibration certificate included
- Overflow channel
- Complies with international standards
- Base available optionally
Package contents
1 x PCE-125/5 Flow Cup Viscometer
1 x Factory Calibration Certificate
1 x Glass plate
1 x User Manual
1 x Factory Calibration Certificate
1 x Glass plate
1 x User Manual
