HSS hand reamers are used for smoothing and finishing holes, offering H7 accuracy. The left-hand groove helps eject chips outward, while the right-hand cutting ensures smooth machining. Suitable for various metallic and non-metallic materials.
Technical Specifications
-
Material: HSS (High-Speed Steel)
-
Standards: DIN 206, DIN 1420 for Ø tolerances (H7)
-
Cutting type: Left-hand spiral groove, right-hand cutting
-
Shank diameter: Equal to the nominal diameter
-
Edge shape: Tapered (Chamfer Angle - tapered)
-
Centering type:
-
Up to Ø3.75: external centers
-
Upper Ø3.75: internal centers
-
-
Finish: Bright
-
Recommended retention: ER Collet Chuck
-
Use: Suitable for steel, stainless steel, cast iron, aluminum alloys, bronze, plastics, etc.
YG-1 Factory
The YG-1 is one of the leading and fastest-growing global forces in the field of cutting tool manufacturing, with headquarters in Incheon, South Korea. The company was founded in 1981, now counting more than four decades of experience and development, and has established itself as the largest manufacturer in South Korea and one of the top five worldwide in the specialized field of end mills. The company operates 15 production plants and more than 30 subsidiaries worldwide, serving customers in more than 75 countries.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of YG-1 in Greece. We have more than 3,000 YG-1 product codes in stock, a number that continues to increase. In addition, we can support the entire range of the YG-1 catalog, which includes more than 50,000 different product codes.
The YG-1 offers one of the most comprehensive ranges of cutting tools worldwide, covering every metal machining requirement. Its production is based on modern technology and advanced materials for maximum performance and service life.

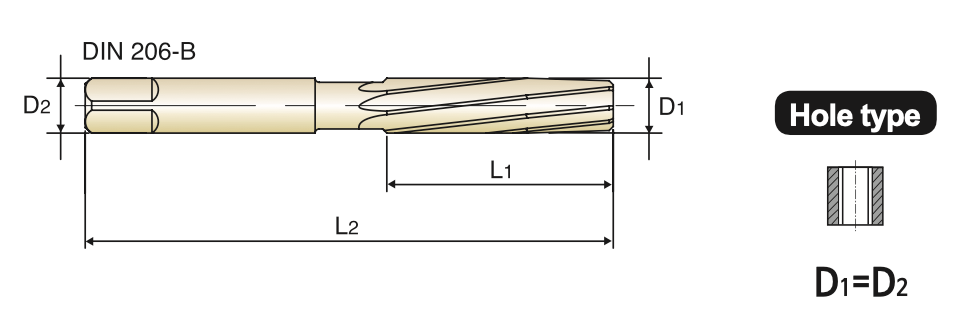

| SKU | D1 (mm) | D2 (mm) | L2(mm) - L1(mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| RH-2 | 2 mm | 2 mm | 50 mm - 25 mm | 2 available |
+VAT
€14,30
|
|
| RH-2.2 | 2.2 mm | 2.2 mm | 54 mm - 27 mm | 1 available |
+VAT
€14,30
|
|
| RH-2.25 | 2.25 mm | 2.25 mm | 54 mm - 27 mm | 1 available |
+VAT
€17,70
|
|
| RH-2.5 | 2.5 mm | 2.5 mm | 58 mm - 29 mm | 1 available |
+VAT
€14,30
|
|
| RH-2.8 | 2.8 mm | 2.8 mm | 62 mm - 31 mm | 1 available |
+VAT
€15,50
|
|
| RH-3 | 3 mm | 3 mm | 62 mm - 31 mm | 4 available |
+VAT
€15,50
|
|
| RH-3.2 | 3.2 mm | 3.2 mm | 66 mm - 33 mm | 1 available |
+VAT
€15,50
|
|
| RH-3.5 | 3.5 mm | 3.5 mm | 71 mm - 35 mm | 1 available |
+VAT
€15,50
|
|
| RH-4 | 4 mm | 4 mm | 76 mm - 38 mm | 3 available |
+VAT
€15,20
|
|
| RH-4.5 | 4.5 mm | 4.5 mm | 81 mm - 41 mm | 1 available |
+VAT
€15,20
|
|
| RH-4.98 | 4.98 mm | 4.98 mm | 87 mm - 44 mm | 1 available |
+VAT
€43,50
|
|
| RH-4.99 | 4.99 mm | 4.99 mm | 87 mm - 44 mm | 1 available |
+VAT
€43,50
|
|
| RH-5 | 5 mm | 5 mm | 87 mm - 44 mm | 3 available |
+VAT
€14,90
|
|
| RH-5.02 | 5.02 mm | 5.02 mm | 87 mm - 44 mm | 1 available |
+VAT
€43,50
|
|
| RH-5.1 | 5.1 mm | 5.1 mm | 87 mm - 44 mm | 3 available |
+VAT
€43,50
|
|
| RH-5.18 | 5.18 mm | 5.18 mm | 87 mm - 44 mm | 3 available |
+VAT
€43,50
|
|
| RH-5.2 | 5.2 mm | 5.2 mm | 87 mm - 44 mm | 2 available |
+VAT
€43,50
|
|
| RH-5.5 | 5.5 mm | 5.5 mm | 93 mm - 47 mm | 4 available |
+VAT
€16,00
|
|
| RH-5.52 | 5.52 mm | 5.52 mm | 93 mm - 47 mm | 2 available |
+VAT
€43,50
|
|
| RH-5.98 | 5.98 mm | 5.98 mm | 93 mm - 47 mm | 1 available |
+VAT
€43,50
|
|
| RH-6 | 6 mm | 6 mm | 93 mm - 47 mm | 2 available |
+VAT
€16,60
|
|
| RH-6.01 | 6.01 mm | 6.01 mm | 93 mm - 47 mm | 1 available |
+VAT
€43,50
|
|
| RH-6.02 | 6.02 mm | 6.02 mm | 93 mm - 47 mm | 2 available |
+VAT
€43,50
|
|
| RH-6.5 | 6.5 mm | 6.5 mm | 93 mm - 47 mm | 3 available |
+VAT
€16,80
|
|
| RH-6.98 | 6.98 mm | 6.98 mm | 93 mm - 47 mm | 1 available |
+VAT
€43,50
|
|
| RH-7 | 7 mm | 7 mm | 107 mm - 54 mm | 2 available |
+VAT
€17,40
|
|
| RH-7.5 | 7.5 mm | 7.5 mm | 107 mm - 54 mm | 3 available |
+VAT
€17,70
|
|
| RH-8 | 8 mm | 8 mm | 115 mm - 58 mm | 2 available |
+VAT
€17,90
|
|
| RH-8.02 | 8.02 mm | 8.02 mm | 115 mm - 58 mm | 1 available |
+VAT
€51,00
|
|
| RH-8.25 | 8.25 mm | 8.25 mm | 115 mm - 58 mm | 2 available |
+VAT
€46,40
|
|
| RH-8.5 | 8.5 mm | 8.5 mm | 115 mm - 58 mm | 2 available |
+VAT
€18,60
|
|
| RH-9 | 9 mm | 9 mm | 124 mm - 62 mm | 1 available |
+VAT
€23,70
|
|
| RH-9.5 | 9.5 mm | 9.5 mm | 124 mm - 62 mm | 2 available |
+VAT
€19,40
|
|
| RH-10 | 10 mm | 10 mm | 133 mm - 66 mm | 5 available |
+VAT
€23,70
|
|
| RH-10.5 | 10.5 mm | 10.5 mm | 133 mm - 66 mm | 1 available |
+VAT
€24,60
|
|
| RH-11 | 11 mm | 11 mm | 142 mm - 71 mm | 1 available |
+VAT
€23,80
|
|
| RH-11.5 | 11.5 mm | 11.5 mm | 142 mm - 71 mm | 1 available |
+VAT
€89,00
|
|
| RH-12 | 12 mm | 12 mm | 152 mm - 76 mm | 2 available |
+VAT
€26,30
|
|
| RH-12.5 | 12.5 mm | 12.5 mm | 152 mm - 76 mm | 2 available |
+VAT
€33,70
|
|
| RH-13 | 13 mm | 13 mm | 152 mm - 76 mm | 1 available |
+VAT
€38,90
|
|
| RH-14 | 14 mm | 14 mm | 163 mm - 81 mm | 1 available |
+VAT
€44,20
|
|
| RH-15 | 15 mm | 15 mm | 163 mm - 81 mm | 1 available |
+VAT
€48,90
|
|
| RH-16 | 16 mm | 16 mm | 175 mm - 87 mm | 3 available |
+VAT
€50,30
|
|
| RH-17 | 17 mm | 17 mm | 175 mm - 87 mm | 1 available |
+VAT
€53,30
|
|
| RH-18 | 18 mm | 18 mm | 188 mm - 93 mm | 1 available |
+VAT
€59,80
|
|
| RH-19 | 19 mm | 19 mm | 188 mm - 93 mm | 1 available |
+VAT
€59,80
|
|
| RH-20 | 20 mm | 20 mm | 201 mm - 100 mm | 1 available |
+VAT
€65,00
|
|
| RH-22 | 22 mm | 22 mm | 215 mm - 107 mm | 1 available |
+VAT
€71,00
|
|
| RH-24 | 24 mm | 24 mm | 231 mm - 115 mm | 1 available |
+VAT
€86,00
|
|
| RH-25 | 25 mm | 25 mm | 231 mm - 115 mm | 1 available |
+VAT
€88,00
|
|
| RH-26 | 26 mm | 26 mm | 231 mm - 115 mm | 1 available |
+VAT
€91,00
|
|
| RH-27 | 27 mm | 27 mm | 247 mm - 124 mm | 5-8 business days |
+VAT
€121,00
|
|
| RH-28 | 28 mm | 28 mm | 247 mm - 124 mm | 1 available |
+VAT
€121,00
|
|
| RH-29 | 29 mm | 29 mm | 247 mm - 124 mm | 5-8 business days |
+VAT
€126,00
|
|
| RH-30 | 30 mm | 30 mm | 247 mm - 124 mm | 2 available |
+VAT
€126,00
|
|
| RH-31 | 31 mm | 31 mm | 265 mm - 133 mm | 5-8 business days |
+VAT
€139,00
|
|
| RH-32 | 32 mm | 32 mm | 265 mm - 133 mm | 5-8 business days |
+VAT
€139,00
|
|
| RH-33 | 33 mm | 33 mm | 265 mm - 133 mm | 5-8 business days |
+VAT
€142,00
|
|
| RH-34 | 34 mm | 34 mm | 284 mm - 142 mm | 5-8 business days |
+VAT
€142,00
|
|
| RH-35 | 35 mm | 35 mm | 284 mm - 142 mm | On Order |
+VAT
€169,00
|
|
| RH-36 | 36 mm | 36 mm | 284 mm - 142 mm | 5-8 business days |
+VAT
€169,00
|
|
| RH-37 | 37 mm | 37 mm | 284 mm - 142 mm | 1 available |
+VAT
€170,00
|
|
| RH-38 | 38 mm | 38 mm | 305 mm - 152 mm | 5-8 business days |
+VAT
€176,00
|
|
| RH-38.1 | 38.1 mm | 38.1 mm | 305 mm - 152 mm | 5-8 business days |
+VAT
€178,00
|
|
| RH-39 | 39 mm | 39 mm | 305 mm - 152 mm | 5-8 business days |
+VAT
€184,00
|
|
| RH-40 | 40 mm | 40 mm | 305 mm - 152 mm | 1 available |
+VAT
€188,00
|
|
| RH-41 | 41 mm | 41 mm | 305 mm - 152 mm | 5-8 business days |
+VAT
€200,00
|
|
| RH-42 | 42 mm | 42 mm | 305 mm - 152 mm | 5-8 business days |
+VAT
€209,00
|
|
| RH-43 | 43 mm | 43 mm | 326 mm - 163 mm | 5-8 business days |
+VAT
€217,00
|
|
| RH-44 | 44 mm | 44 mm | 326 mm - 163 mm | On Order |
+VAT
€229,00
|
|
| RH-45 | 45 mm | 45 mm | 326 mm - 163 mm | 5-8 business days |
+VAT
€243,00
|
|
| RH-46 | 46 mm | 46 mm | 326 mm - 163 mm | 5-8 business days |
+VAT
€251,00
|
|
| RH-47 | 47 mm | 47 mm | 326 mm - 163 mm | 5-8 business days |
+VAT
€267,00
|
|
| RH-48 | 48 mm | 48 mm | 347 mm - 174 mm | 5-8 business days |
+VAT
€279,00
|
|
| RH-49 | 49 mm | 49 mm | 347 mm - 174 mm | 5-8 business days |
+VAT
€288,00
|
|
| RH-52 | 52 mm | 52 mm | 347 mm - 174 mm | 5-8 business days |
+VAT
€335,00
|
|
| RH-60 | 60 mm | 60 mm | 367 mm - 184 mm | On Order |
+VAT
€472,00
|
