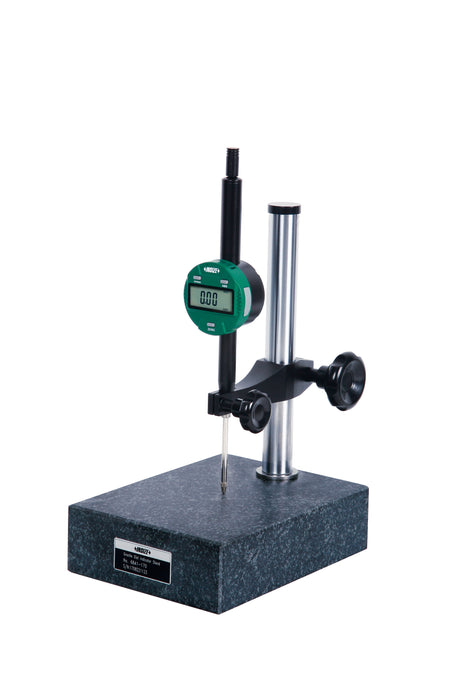

Granite Dial Indicator Stand (Basic Type)
| Κωδικός | Dimensions (mm) | Material | Micro-adjustment | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 6841-170 | 200 x 150 | Granite | - | €230,00 | 1 διαθέσιμo | ||
| 6841-170D | 200 x 150 | Granite | with a width of 3 mm | €298,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%

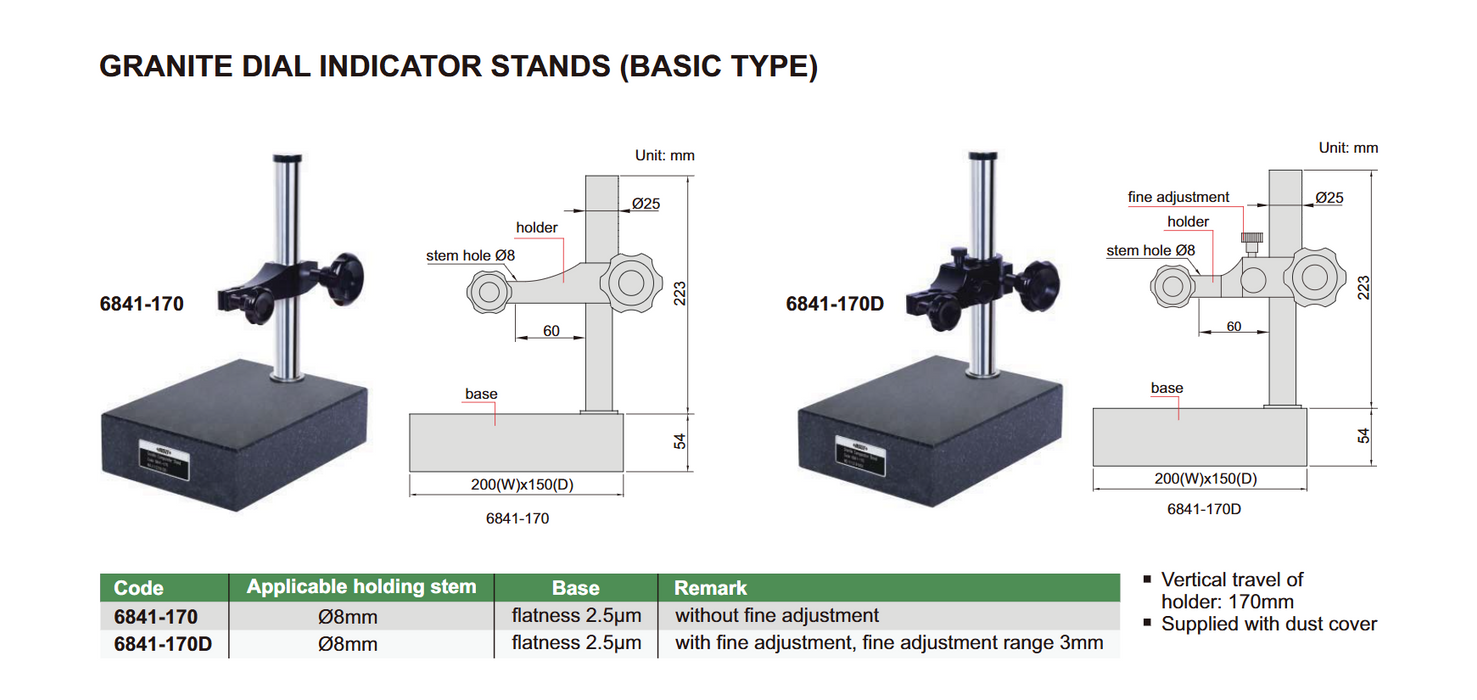

Technical Specifications
Vertical travel of holder: 170 mm
Applicable holding stem: Ø8 mm
Base: Granite, flatness 2.5 μm
Base dimensions: 200 mm (W) × 150 mm (D), height 54 mm
Overall height: 223 mm

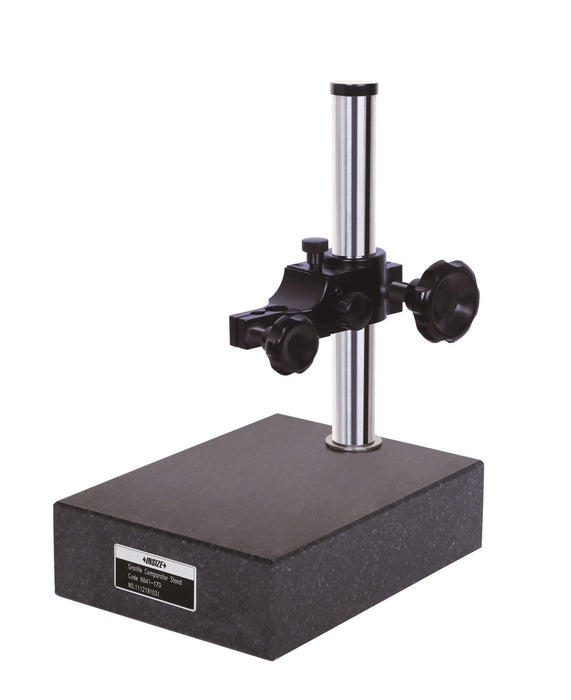

Fine adjustment: Present on 6841-170D only, adjustment range 3 mm
Supplied with dust cover
Description
Granite dial indicator stand 6841 feature a high-flatness granite base and Ø8 mm stem holder. Model 6841-170D includes a fine adjustment mechanism for precise vertical setting. Suitable for precision measurement applications in mechanical environments.
