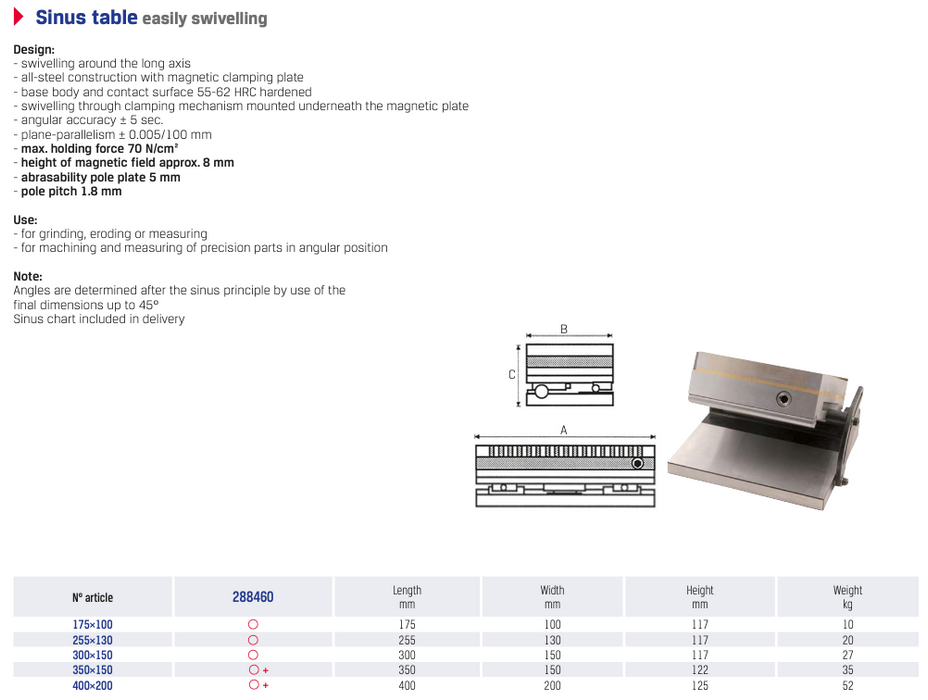

Technical Specifications
-
Rotation around the longitudinal axis
-
Entirely steel construction with magnetic clamping surface
-
Base body and contact surface hardened 55-62 HRC
-
Rotation via clamping mechanism under the magnetic plate
-
Angular accuracy ± 5 arc sec
-
Flatness ± 0.005/100 mm
-
Maximum holding force 70 N/cm²
-
Magnetic field height approximately 8 mm
-
Pole surface wear 5 mm
-
Pole pitch 1.8 mm
Description
Rotary sine table, designed for grinding, rectifying, or measuring tasks, as well as for precision machining and measurement at angles up to 45°. Angles are determined based on the sine principle. Includes sine table.
Quote
| SKU | Dimensions | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|
| 288460 175X100 | 175 x 100 x 117 mm | On Order |
+VAT
€1.933,00
|
|
| 288460 255X130 | 255 x 130 x 117 mm | On Order |
+VAT
€2.242,00
|
|
| 288460 300X150 | 300 x 150 x 117 mm | On Order |
+VAT
€2.686,00
|
|
| 288460 350X150 | 350 x 150 x 117 mm | On Order |
+VAT
€3.092,00
|
|
| 288460 400X200 | 400 x 200 x 117 mm | On Order |
+VAT
€4.385,00
|
