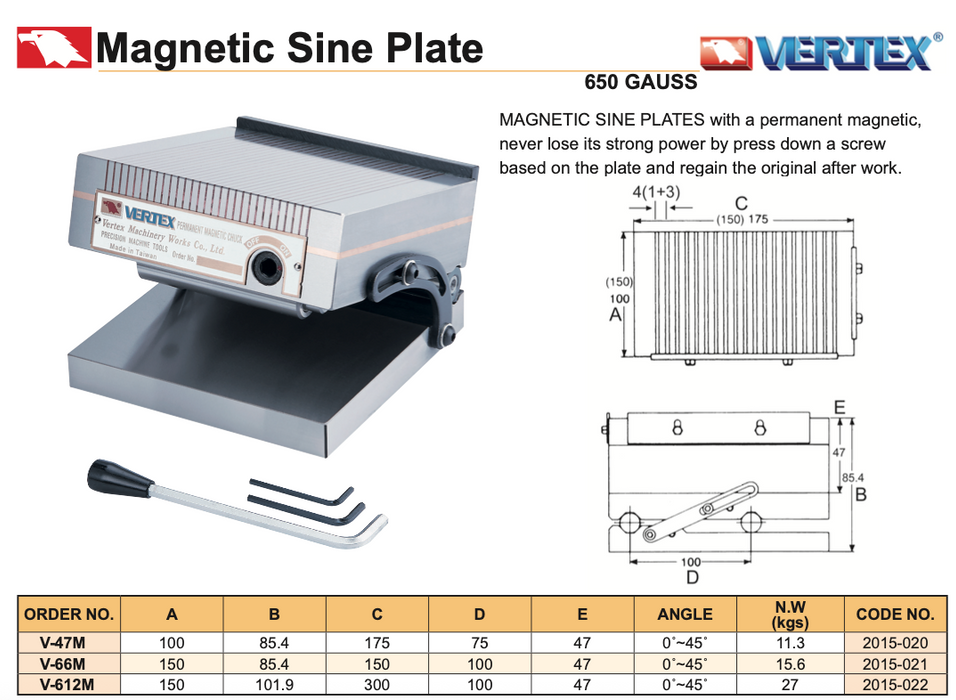

Technical Specifications
-
Permanent magnet with 650 Gauss strength
-
Does not lose magnetic strength during use
-
Magnetic force reset with adjustment screw
-
Angular adjustment range: 0° to 45°
-
Adjustment tools included (Allen keys & lever)
-
Types and dimensions:
-
V-47M: 175×100×85.4 mm, weight 11.3 kg
-
V-66M: 150×150×85.4 mm, weight 15.6 kg
-
V-612M: 300×150×101.9 mm, weight 27 kg
-
Description
Magnetic sine plate with permanent magnet for holding workpieces during angled machining. Ideal for grinding or measuring tasks at angular positions up to 45°. The magnetic strength remains stable and is restored after use via a screw mechanism.
Vertex Factory
Vertex (Vertex Machinery Works Co., Ltd.) is the largest manufacturer of machine tool accessories in Taiwan, headquartered in Taichung and founded in 1978. The company has established itself worldwide as a leading specialist in the production of a vast range of high-precision components for machine tools, such as milling machines, lathes, grinders, and machining centers (machining centers). Its specialization mainly includes vises (conventional, hydraulic, power vises), dividing heads, magnetic chucks, clamping systems (clamping kits), chucks, tool holders, and many other auxiliary accessories. With exports to more than 70 countries, Vertex is known for providing reliable and quality solutions that increase productivity and accuracy in machining operations.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of Vertex in Greece since 2017. We have more than 6,000 Vertex products in stock, a number that continues to increase. We can also support the entire range of its catalog.
| SKU | Dimensions (mm) | Height (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|
| V-47M | 100 x 175 | 85.4 | On Order |
+VAT
€807,00
|
|
| V-66M | 150 x 150 | 85.4 | On Order |
+VAT
€926,00
|
|
| V-612M | 150 x 300 | 101.9 | On Order |
+VAT
€1.246,00
|
