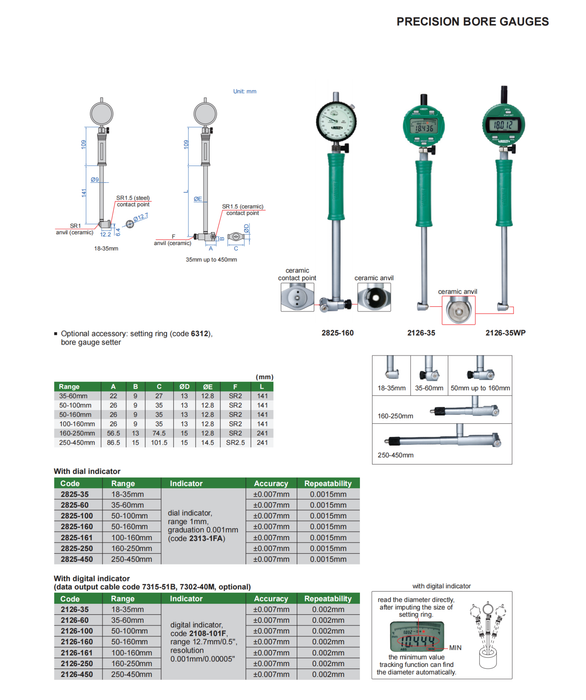

Technical Specifications
-
Types of Indicators:
-
Analog indicator
-

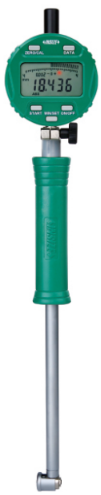

Digital indicator
-

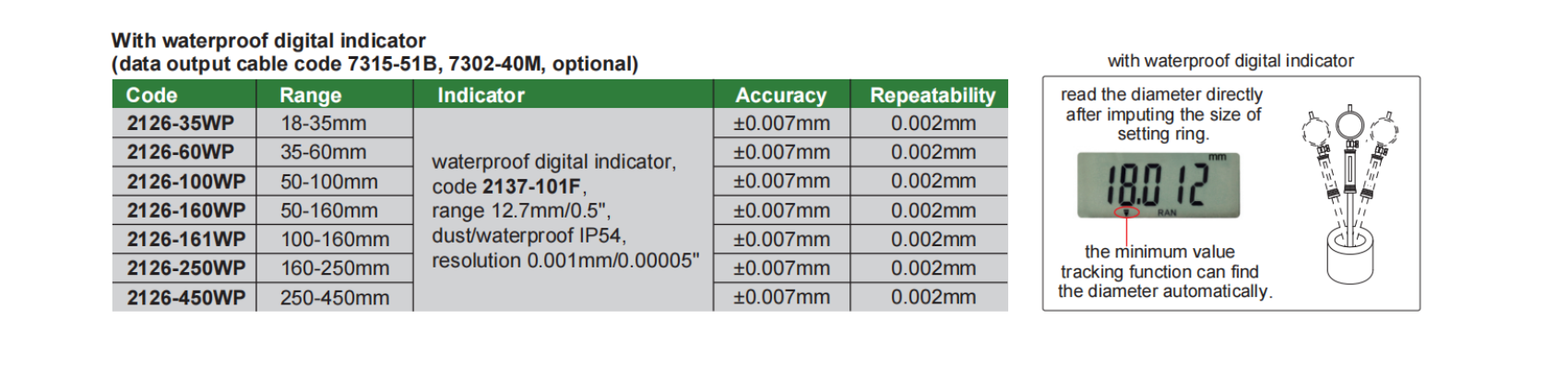

Waterproof digital indicator (code 2137-101F)
-
-
Accuracy: ±0.007 mm for all models
-
Repeatability: 0.0015 mm (with analog indicator) or 0.002 mm (with digital indicator)
-
Reading (on digital indicators): 0.001 mm / 0.00005"
-
Protection: IP54
-
Contact Material: Ceramic probe and anvils
-
Additional Accessories (optional): Adjustment rings (code 6312), diameter adjustment base
-
Data Output Capability: With cable (code 7315-51B, 7302-40M)
-
Automatic Minimum Value Detection Capability: Available on digital models
-
Suitable for: Internal measurement of hole diameters
Description

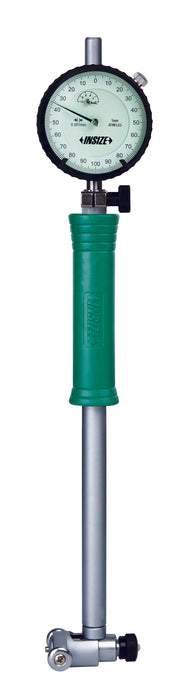

Precision instruments for measuring internal diameters (bore gauges), available with analog or digital indicators, as well as waterproof indicators with IP54 protection rating. They offer high accuracy and repeatability in ranges from 18 mm to 450 mm. Ideal for precise diameter inspection with data output capability and automatic minimum value detection function.
2 Years Warranty
| SKU | Travel | Reading | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|
| 2825-35 | 18-35 mm | 0.001 mm | 1 available |
+VAT
€268,00
|
5-8 business days
|
|
| 2825-60 | 35-60 mm | 0.001 mm | 1 available |
+VAT
€268,00
|
5-8 business days
|
|
| 2825-100 | 50-100 mm | 0.001 mm | 5-8 business days |
+VAT
€264,00
|
5-8 business days
|
|
| 2825-160 | 50-160 mm | 0.001 mm | 1 available |
+VAT
€268,00
|
5-8 business days
|
|
| 2825-161 | 100-160 mm | 0.001 mm | 5-8 business days |
+VAT
€268,00
|
5-8 business days
|
|
| 2825-250 | 160-250 mm | 0.001 mm | On Order |
+VAT
€403,00
|
5-8 business days
|
|
| 2825-450 | 250-450 mm | 0.001 mm | On Order |
+VAT
€435,00
|
5-8 business days
|
