Μαγνήτης Aνύψωσης
| Κωδικός | Ισχύς | Πάχος | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|
| HL-20 | 120 kg | 2 mm | €196,00 | 5-7 εργάσιμες | ||
| HL-10 | 60 kg | 2 mm | €154,00 | 5-7 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
The manual magnet transporter HL-series are ideal wherever conventional load lifting magnets are not used due to the low material thickness. They can be used to transport sheets vertically or horizontally directly from the sheet shelf directly to the workplace or on a transportation vehicle. They are used for the secure transportation of sharp steel sheets in sheet storage, burn cutting operations and stamping.
- Ideal for workpieces starting with a thickness of 2mm
- Workpieces can be swivelled by 90° (horizontally-vertically)
- Max. operation temperature 80°C

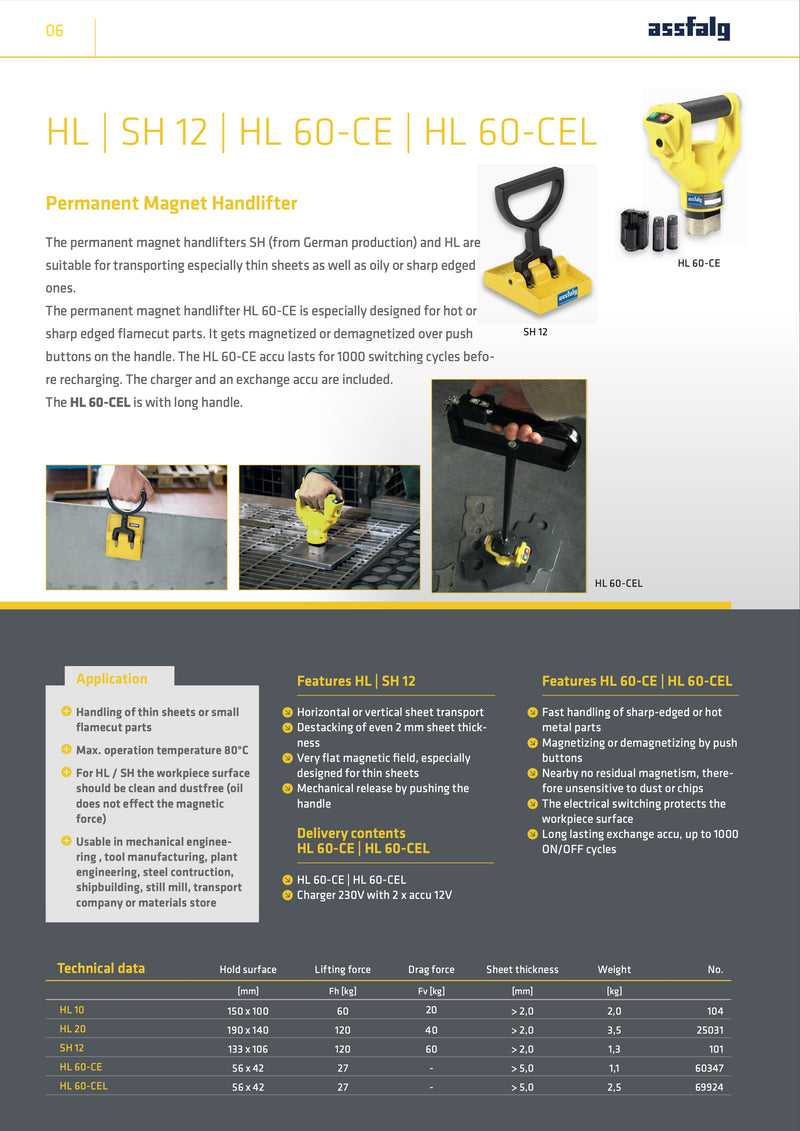

| Technical data | Hold surface [L x B] |
Lifting force SWL 3:1 | Drag force SWL 3:1 | Sheet thickness | Weight | Item No. | ||||
| [mm] | Fh [kg] | Fv [kg] | [mm] | [kg] | ||||||
| HL 10 | 150 x 100 | 60 | 20 | ab 2,0 | 2,0 | 104 | ||||
| HL 20 | 190 x 140 | 120 | 40 | ab 2,0 | 3,5 | 25031 | ||||
