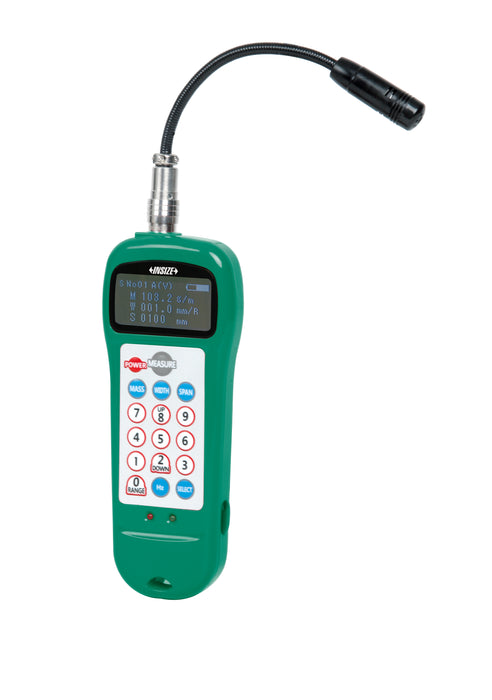

Ultrasonic belt tension meter
| Κωδικός | Τιμή | Στοκ | |
|---|---|---|---|
| 5910-HZ5K | €1.292,00 | Κ.Π. Ρωτήστε * |
* Κ.Π. : Κατόπιν Παραγγελίας
Τιμές χωρίς ΦΠΑ 24%

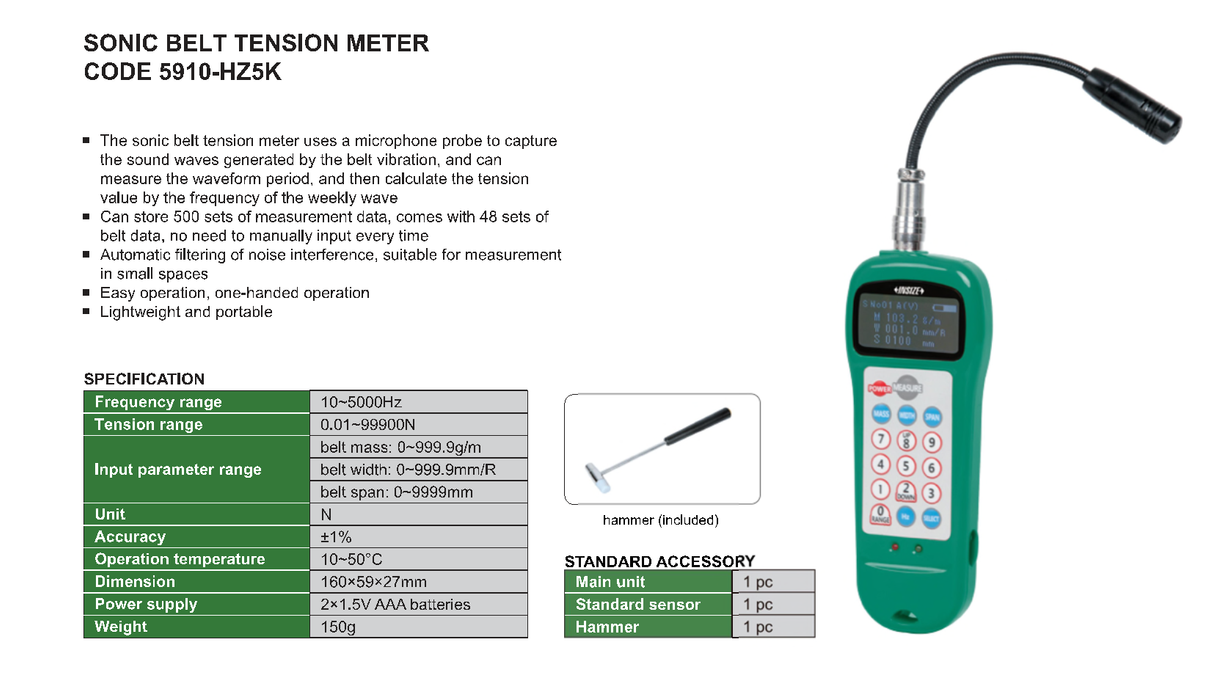

Technical Specifications
-
Parameter input range:
-
Belt mass: 0~999.9g/m
-
Belt width: 0~999.9mm/R
-
Belt opening: 0~9999mm
-
-
Unit of measurement: N
-
Accuracy: ±1%
-
Operating temperature: 10~50°C
-
Dimensions: 160×59×27mm
-
Power supply: 2×1.5V AAA batteries
-
Weight: 150g
Includes
-
Main unit: 1 pc
-
Standard sensor: 1 pc
-
Hammer: 1 pc.
Description
The ultrasonic belt tension meter uses a microphone to receive the sound waves generated by the vibration of the belt and calculates the tension through the frequency of the waves. It stores up to 500 sets of data and has 48 preset belt data sets. It filters out noise, suitable for measurement in confined spaces. It is lightweight, portable and can be used with one hand.
