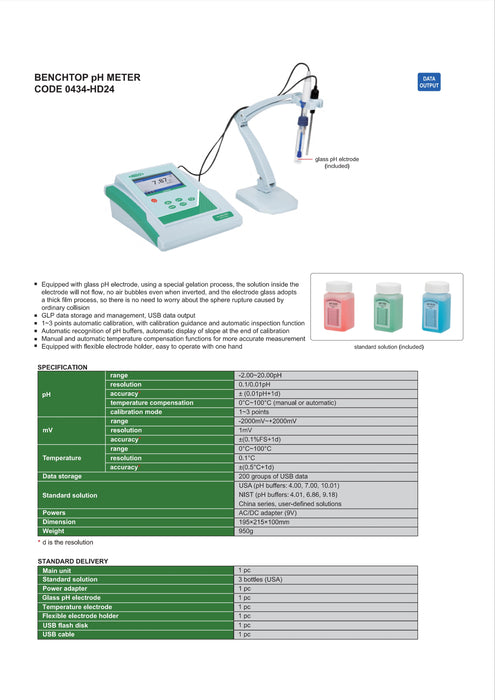

SPECIFICATIONS
-
pH
-
Range: -2.00~20.00pH
-
Resolution: 0.1/0.01pH
-
Accuracy: ± (0.01pH+1d)
-
Temperature compensation: 0°C~100°C (manual or automatic)
-
Calibration mode: 1~3 points
-
-
mV
-
Range: -2000mV~+2000mV
-
Resolution: 1mV
-
Accuracy: ±(0.1%FS+1d)
-
-
Temperature
-
Range: 0°C~100°C
-
Resolution: 0.1°C
-
Accuracy: ±(0.5°C+1d)
-
-
Data storage: 200 USB data sets
-
Standard solutions:
-
USA (pH buffer: 4.00, 7.00, 10.01)
-
NIST (pH buffer: 4.01, 6.86, 9.18)
-
Chinese series, user-defined solutions
-
-
Current: AC/DC power supply (9V)
-
Dimensions: 195×215×100mm
-
Weight: 950g
* d is the resolution
Includes
-
Main unit: 1 pc.
-
Standard solutions: 3 bottles (USA)
-
Power supply: 1 pc.
-
pH electrode (glass): 1 pc.
-
Temperature electrode: 1 pc.
-
Flexible electrode holder: 1 pc.
-
USB flash disk: 1 pc.
-
USB cable: 1 pc.
-

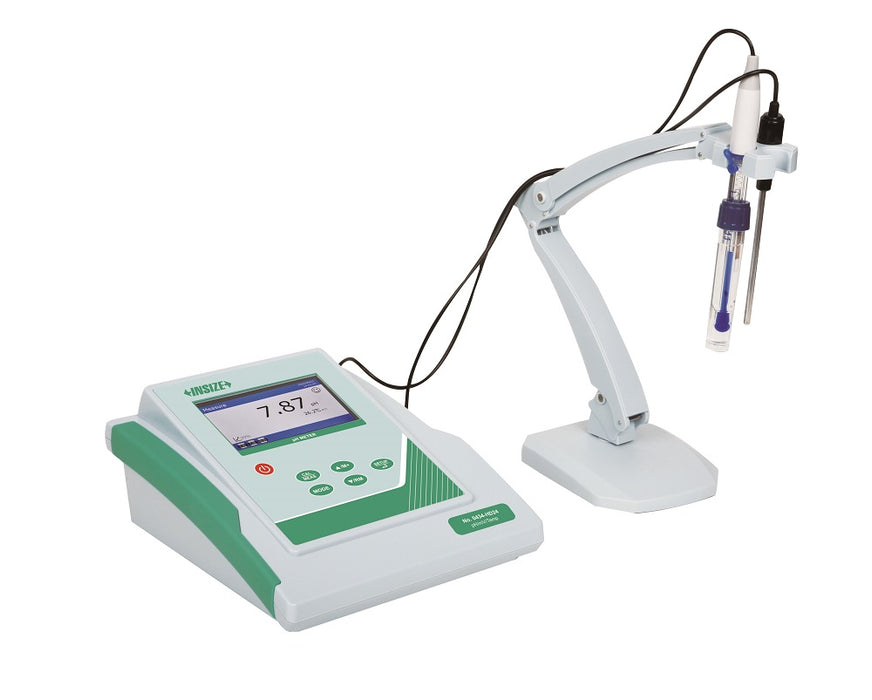

Equipped with a glass pH electrode, uses a special gelation process so that the solution inside the electrode does not flow and there are no bubbles even when inverted. The glass of the electrode is made with a thick coating process, preventing breakage due to common collisions.
-
GLP data storage and management, data output via USB
-
Automatic 1~3 point calibration, with calibration guidance and automatic inspection
-
Automatic recognition of pH buffer solutions, automatic display of slope at the end of calibration
-
Manual and automatic temperature compensation for more accurate measurements
-
Equipped with a flexible electrode holder, easy to use with one hand
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|
| 0434-HD24 | On Order |
+VAT
€879,00
|
5-8 business days
|
Added to cart!
