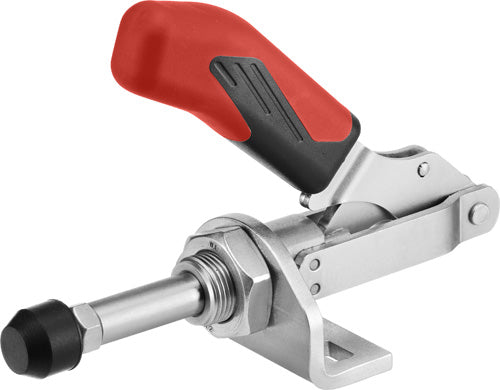

Push Pull Toggle Clamp
299500

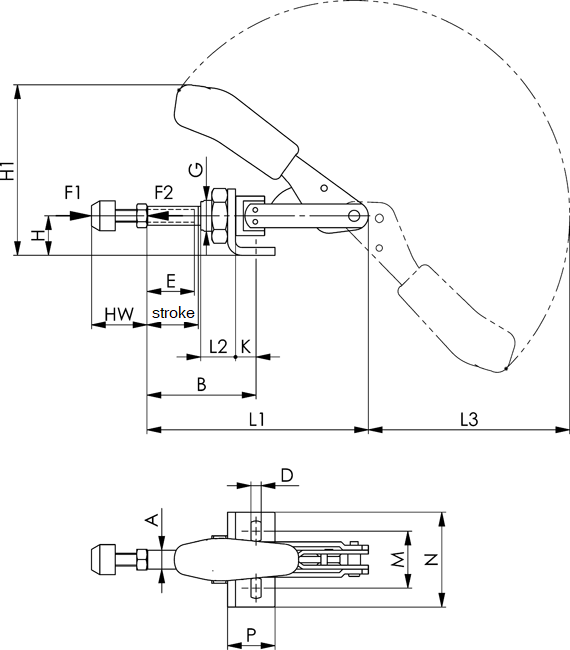

| Κωδικός | F1 (kN) | F2 (kN) | Screw | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 299500 0 | 0.8 | 0.8 | M4x20 | €42,00 | Κατόπιν Παραγγελίας | ||
| 299500 1 | 1 | 1 | M4x20 | €43,30 | Κατόπιν Παραγγελίας | ||
| 299500 2 | 2 | 2 | M6x25 | €45,80 | Κατόπιν Παραγγελίας | ||
| 299500 3 | 2.5 | 2.5 | M8x35 | €52,90 | Κατόπιν Παραγγελίας | ||
| 299500 5 | 4.5 | 4.5 | M12x50 | €83,00 | Κατόπιν Παραγγελίας | ||
Τιμές χωρίς ΦΠΑ 24%
with small angle base. For push- and pull-clamping.
(Equal operation of rod and lever).
Long rod-guide with attaching thread and nut. Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 and 3, run in hardened bushings. Lever-parts and rod of tempered steel. Bearings are pre-lubricated. Lever can be set to any angle relative to base. Ergonomic, oil-resistant handle with large grip surface and soft components.
Complete with tempered, galvanized clamping screw no. 6880.
