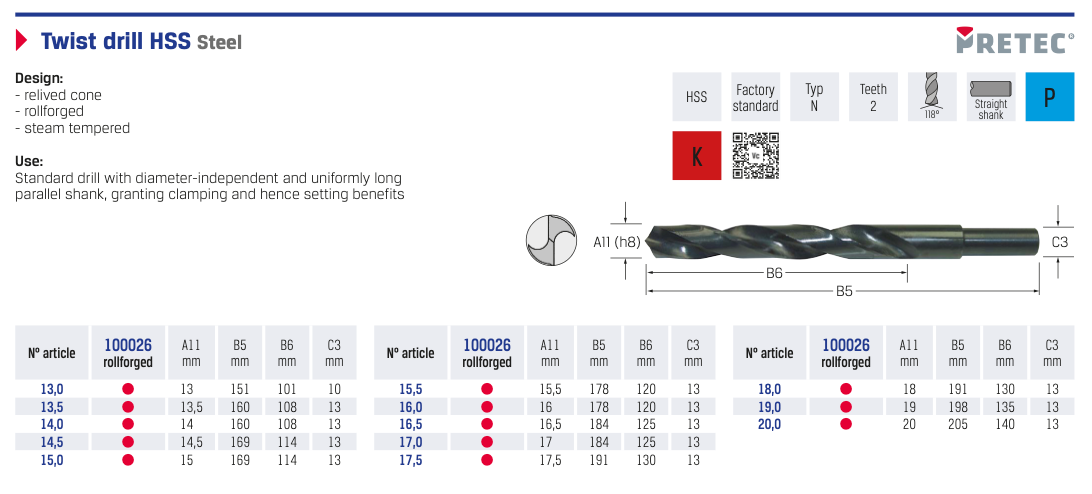

100026 HSS Drills with Small Shank ≤ 13 mm

HSS Drills with Small Shank ≤ 13 mm
HSS Drills with Small Shank ≤ 13 mm
Quote

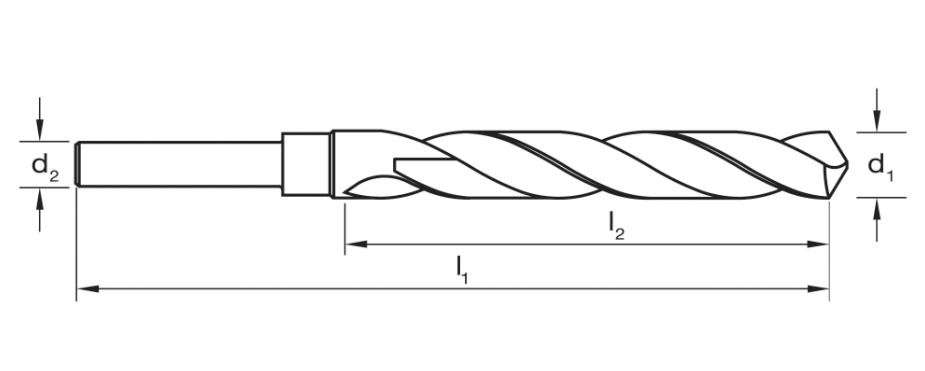

SKU d1(mm) d2(mm) l1 - l2(mm) Availability
Price
+VAT
Cart
Quote
100026 13.0 13 10 151 - 101 1 available
+VAT
€4,10
100026 13.5 13.5 13 160 - 108 On Order
+VAT
€4,60
100026 14.0 14 13 160 - 108 On Order
+VAT
€4,80
100026 14.5 14.5 13 114 - 13 On Order
+VAT
€5,40
100026 15.0 15 13 114 - 13 On Order
+VAT
€6,40
100026 15.5 15.5 13 178 - 120 On Order
+VAT
€6,30
100026 16.0 16 13 178 - 120 On Order
+VAT
€6,80
100026 16.5 16.5 13 184 - 125 On Order
+VAT
€7,10
100026 17.0 17 13 184 - 125 2 available
+VAT
€7,50
100026 17.5 17.5 13 191 - 130 2 available
+VAT
€7,80
100026 18.0 18 13 191 - 130 2 available
+VAT
€8,40
100026 19.0 19 13 198 - 135 1 available
+VAT
€9,30
100026 20.0 20 13 205 - 140 On Order
+VAT
€10,60
Drills
Wiki

Drills

The metal drill bits are cutting tools designed for drilling holes in a wide range of materials, from plain structural steel to hardened alloys and stainless steel. Their performance depends on the material of manufacture, the cutting edge angle and the coating they have.

  • Main Material Categories:HSS (High Speed Steel): Suitable for plain steel and soft metals. They are distinguished into HSS-R (rolled), HSS-G (ground for higher accuracy).HSS-Co (Cobalt): Contain 5% or 8% cobalt. They are highly resistant to high temperatures and ideal for stainless steel (Inox).Carbide (Solid Carbide): Top hardness for industrial use in CNC, allowing very high cutting speeds.
  • Tip Geometry: Most metal drill bits have an angle of 118° for general use or 135° (Split Point) for self-centering without the need for center punching.
  • Coatings: Layers such as TiN (Titanium Nitride - gold color) are used to reduce friction, or TiAlN for maximum thermal resistance.
