Technical Specifications
-
Accuracy: 1% FS
-
Overpressure: 120% (≤10MPa), 150% (<10MPa)
-
Pressure type: absolute pressure
-
Measurement units: MPa, kPa, psi, kgf/cm², bar
-
Power supply: 2×1.5V AAA batteries (12 months duration)
-
Operating temperature: -10~60°C
-
Operating humidity: 0~100% RH (non-condensing)
-
Storage temperature: -10~50°C
-
Diameter: 60 mm
-
Weight: 0.23 kg

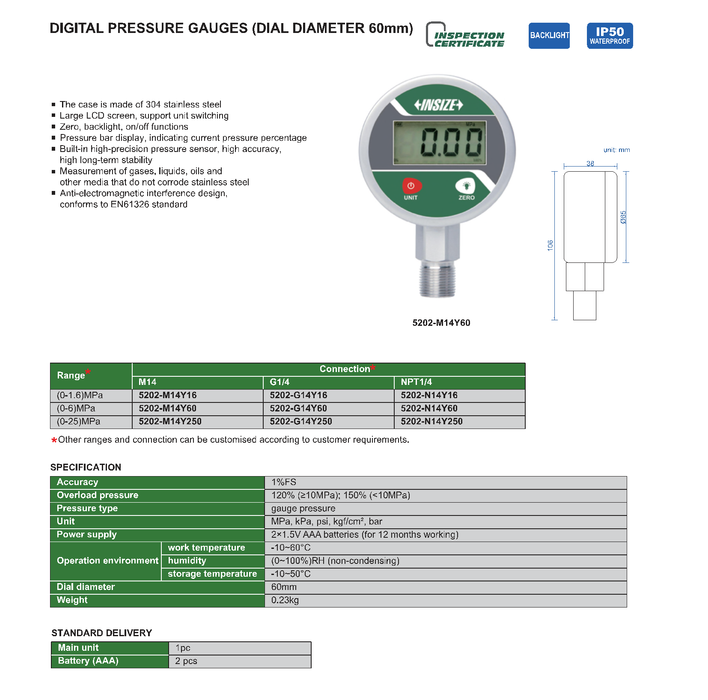

Description
Digital pressure gauge with a diameter of 60 mm, suitable for measuring the pressure of gases, liquids, and oils that do not corrode stainless steel. It incorporates a high-precision sensor with display in multiple units. Features a large LCD screen, zeroing capability, backlight, and on/off function. Complies with EN61326 standard for electromagnetic compatibility.
Includes
-
Main unit: 1 pc
-
Batteries (AAA): 2 pcs
| SKU | Width | Thread | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|
| 5202-G14Y16 | 0-16 bar | G1/4 | Expected |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
|
| 5202-N14Y16 | 0-16 bar | NPT1/4 | On Order |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
|
| 5202-M14Y16 | 0-16 bar | M14 | On Order |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
|
| 5202-G14Y60 | 0-60 bar | G1/4 | 1 available |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
|
| 5202-N14Y60 | 0-60 bar | NPT1/4 | On Order |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
|
| 5202-M14Y60 | 0-60 bar | M14 | On Order |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
|
| 5202-G14Y250 | 0-250 bar | G1/4 | 2 available |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
|
| 5202-N14Y250 | 0-250 bar | NPT1/4 | On Order |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
|
| 5202-M14Y250 | 0-250 bar | M14 | On Order |
+VAT
€85,00
|
+ €50,00
5-8 business days
|
