Technical Specifications
-
Material: HSS-E (High Speed Steel with cobalt)
-

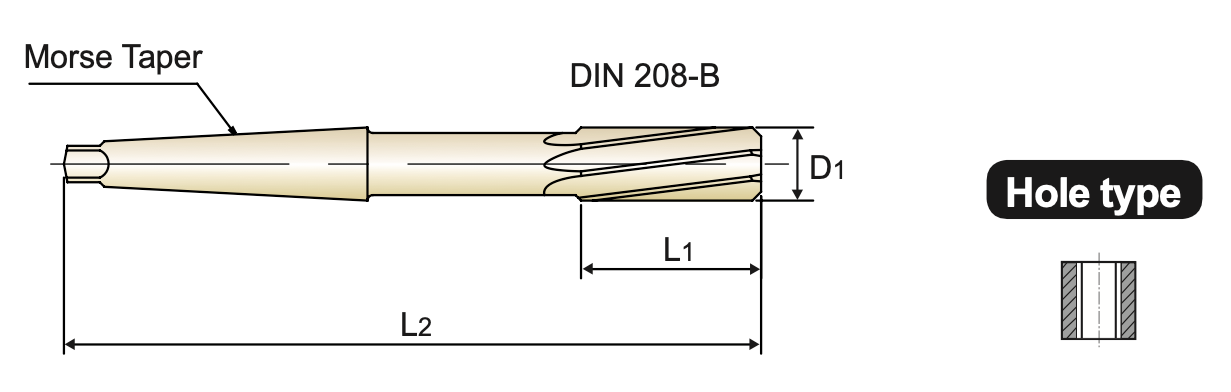

Form: Tapered shank according to DIN 208-B (Morse Taper)
-
Cutting angle: 45°
-
Type of helical flutes: Left-hand (LH Spiral Flutes)
-
Cutting direction: Right Hand Cut
-
Diameter tolerances: DIN 1420 for H7
-
Surface: Bright Finish
-
Groove type: Type B
-
Available diameters: From 10.0 mm to 50.0 mm
-
Cutting length (L1): From 38 mm to 79 mm
-
Overall length (L2): From 168 mm to 325 mm
-
Number of flutes: 6, 8, or 10 (depending on diameter)
-
Compatibility: Recommended for use with ER type chucks or straight shank
Description

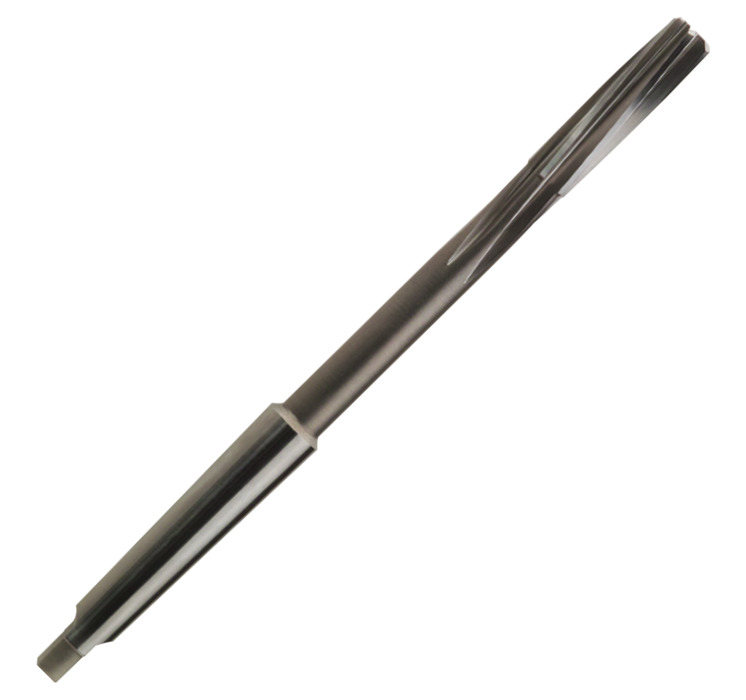

Machine reamers with Morse taper shank (HSS-E) are intended for finishing holes with high precision (H7) in various materials such as unalloyed and alloyed steel, stainless steel, cast iron, and non-ferrous metals. The left-hand helical flute combines with right-hand cutting for stable chip removal, ideal for blind holes.
YG-1 Factory
The YG-1 is one of the leading and fastest-growing global forces in the field of cutting tool manufacturing, with headquarters in Incheon, South Korea. The company was founded in 1981, now counting more than four decades of experience and development, and has established itself as the largest manufacturer in South Korea and one of the top five worldwide in the specialized field of end mills. The company operates 15 production plants and more than 30 subsidiaries worldwide, serving customers in more than 75 countries.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of YG-1 in Greece. We have more than 3,000 YG-1 product codes in stock, a number that continues to increase. In addition, we can support the entire range of the YG-1 catalog, which includes more than 50,000 different product codes.
The YG-1 offers one of the most comprehensive ranges of cutting tools worldwide, covering every metal machining requirement. Its production is based on modern technology and advanced materials for maximum performance and service life.
| SKU | D1 (mm) | Morse | L2 - L1 (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| RM-MT-4 | 4 mm | MT#1 mm | 129 mm - 19 mm | 1 available |
+VAT
€40,20
|
|
| RM-MT-5 | 5 mm | MT#1 mm | 133 mm - 23 mm | 1 available |
+VAT
€29,10
|
|
| RM-MT-6 | 6 mm | MT#1 mm | 138 mm - 26 mm | 1 available |
+VAT
€29,50
|
|
| RM-MT-8 | 8 mm | MT#1 mm | 156 mm - 33 mm | 1 available |
+VAT
€30,80
|
|
| RM-MT-10 | 10 mm | MT#1 mm | 38 mm | 1 available |
+VAT
€34,90
|
|
| RM-MT-11.5 | 11.5 mm | MT#1 mm | 175 mm - 41 mm | 1 available |
+VAT
€42,60
|
|
| RM-MT-11 | 11 mm | MT#1 mm | 41 mm | 5-8 business days |
+VAT
€41,10
|
|
| RM-MT-12 | 12 mm | MT#1 mm | 44 mm | 1 available |
+VAT
€41,10
|
|
| RM-MT-13 | 13 mm | MT#1 mm | 44 mm | 5-8 business days |
+VAT
€41,10
|
|
| RM-MT-14 | 14 mm | MT#1 mm | 47 mm | 5-8 business days |
+VAT
€41,10
|
|
| RM-MT-15 | 15 mm | MT#2 mm | 50 mm | 5-8 business days |
+VAT
€47,20
|
|
| RM-MT-16 | 16 mm | MT#2 mm | 52 mm | 5-8 business days |
+VAT
€49,60
|
|
| RM-MT-17 | 17 mm | MT#2 mm | 54 mm | 5-8 business days |
+VAT
€57,90
|
|
| RM-MT-18 | 18 mm | MT#2 mm | 56 mm | 5-8 business days |
+VAT
€57,90
|
|
| RM-MT-19 | 19 mm | MT#2 mm | 58 mm | 5-8 business days |
+VAT
€63,00
|
|
| RM-MT-20 | 20 mm | MT#2 mm | 60 mm | 5-8 business days |
+VAT
€63,00
|
|
| RM-MT-21 | 21 mm | MT#2 mm | 62 mm | 5-8 business days |
+VAT
€70,00
|
|
| RM-MT-22 | 22 mm | MT#2 mm | 64 mm | 5-8 business days |
+VAT
€70,00
|
|
| RM-MT-23 | 23 mm | MT#2 mm | 66 mm | 5-8 business days |
+VAT
€82,00
|
|
| RM-MT-24 | 24 mm | MT#3 mm | 68 mm | 5-8 business days |
+VAT
€86,00
|
|
| RM-MT-25 | 25 mm | MT#3 mm | 68 mm | 5-8 business days |
+VAT
€86,00
|
|
| RM-MT-26 | 26 mm | MT#3 mm | 70 mm | 5-8 business days |
+VAT
€107,00
|
|
| RM-MT-27 | 27 mm | MT#3 mm | 71 mm | 5-8 business days |
+VAT
€119,00
|
|
| RM-MT-28 | 28 mm | MT#3 mm | 71 mm | 5-8 business days |
+VAT
€119,00
|
|
| RM-MT-29 | 29 mm | MT#3 mm | 73 mm | On Order |
+VAT
€123,00
|
|
| RM-MT-30 | 30 mm | MT#3 mm | 73 mm | 5-8 business days |
+VAT
€123,00
|
|
| RM-MT-31 | 31 mm | MT#3 mm | 75 mm | 5-8 business days |
+VAT
€123,00
|
|
| RM-MT-32 | 32 mm | MT#4 mm | 77 mm | 5-8 business days |
+VAT
€145,00
|
|
| RM-MT-34 | 34 mm | MT#4 mm | 78 mm | 5-8 business days |
+VAT
€154,00
|
|
| RM-MT-35 | 35 mm | MT#4 mm | 78 mm | 5-8 business days |
+VAT
€154,00
|
|
| RM-MT-36 | 36 mm | MT#4 mm | 79 mm | 5-8 business days |
+VAT
€193,00
|
|
| RM-MT-38 | 38 mm | MT#4 mm | 81 mm | 5-8 business days |
+VAT
€214,00
|
|
| RM-MT-40 | 40 mm | MT#4 mm | 81 mm | On Order |
+VAT
€214,00
|
|
| RM-MT-41 | 41 mm | MT#4 mm | 82 mm | On Order |
+VAT
€300,00
|
|
| RM-MT-42 | 42 mm | MT#4 mm | 82 mm | 5-8 business days |
+VAT
€300,00
|
|
| RM-MT-43 | 43 mm | MT#4 mm | 83 mm | 5-8 business days |
+VAT
€311,00
|
|
| RM-MT-44 | 44 mm | MT#4 mm | 83 mm | 5-8 business days |
+VAT
€311,00
|
|
| RM-MT-45 | 45 mm | MT#4 mm | 83 mm | 5-8 business days |
+VAT
€311,00
|
|
| RM-MT-46 | 46 mm | MT#4 mm | 84 mm | 5-8 business days |
+VAT
€389,00
|
|
| RM-MT-47 | 47 mm | MT#4 mm | 84 mm | 5-8 business days |
+VAT
€389,00
|
|
| RM-MT-48 | 48 mm | MT#4 mm | 86 mm | 5-8 business days |
+VAT
€389,00
|
|
| RM-MT-50 | 50 mm | MT#4 mm | 86 mm | 5-8 business days |
+VAT
€389,00
|
