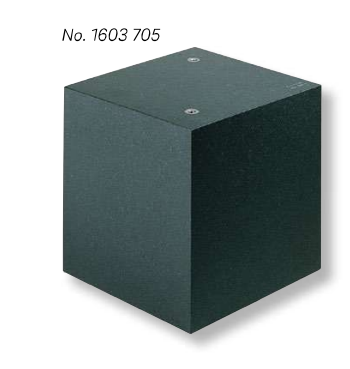

90° Reference Angle from Granite – Cube Type (Cube Design) - 6 Machined Sides - GG 000
1603701
| Κωδικός | Dimensions (mm) | Parallelism (μm) | Perpendicularity (μm) | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 1603701 | 300x150x150 | 2 / 2.5 | 1 / 1.5 | €3.700,00 | 1 μήνας | ||
| 1603702 | 500x250x250 | 2.5 / 3 | 1.5 / 2 | €5.516,00 | 1 μήνας | ||
| 1603703 | 1000x300x300 | 2.5 / 4 | 1.5 / 3 | €8.386,00 | 1 μήνας | ||
| 1603704 | 150x150x150 | 2 | 1 | €3.360,00 | 1 μήνας | ||
| 1603705 | 300x300x300 | 2.5 | 1.5 | €4.769,00 | 1 μήνας | ||
| 1603706 | 400x400x400 | 2.5 | 1.5 | €7.472,00 | 1 μήνας | ||
| 1603707 | 500x500x500 | 3 | 2 | €9.923,00 | 1 μήνας | ||
| 1603708 | 750x750x750 | 3.5 | 2.5 | €13.922,00 | 1 μήνας | ||
| 1603709 | 1000x1000x1000 | 4 | 3 | €23.909,00 | 1 μήνας | ||
Τιμές χωρίς ΦΠΑ 24%
Precision angle cube made of natural granite with an extremely low expansion coefficient. It features 6 diamond-lapped surfaces for multidimensional perpendicularity and angular alignment checks. Ideal for high-precision applications, laboratories, and metrology equipment facilities.
- Shape: Cube
- Available up to size 1000×1000×1000 mm.
- Complies with DIN 875 / DIN 876 standards.
