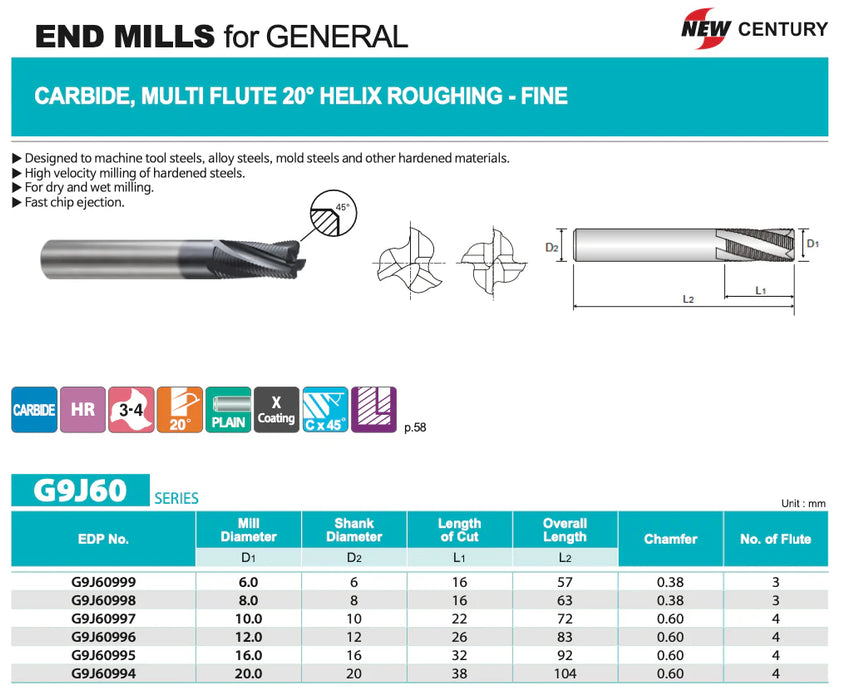

Technical Specifications
-
Material: Carbide
-
Type: Multiple flutes, for high feed machining
-
Helix angle: 20°
-
Number of flutes: 3 or 4 (depending on diameter)
-
Use: Dry and wet machining
-
Hard materials: Suitable for tool steels, alloy steels, mold steels, and other hardened materials
-
Special features: Fast chip removal, surface with X coating, machining with C x 45° edges
-

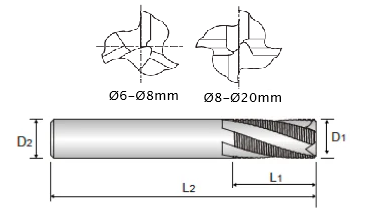

Diameters (D1): 6.0 mm to 20.0 mm
-
Cutting length (L1): 16 mm to 38 mm
-
Overall length (L2): 57 mm to 104 mm
-
Shank diameter (D2): Same as cutting diameter
-
Chamfer: 0.38 mm or 0.60 mm
Description
Two-flute endmill made of carbide with a 20° helix angle, suitable for machining hardened steels and other hard materials. Designed for high-speed machining with increased chip removal, supports both dry and wet cutting.
YG-1 Factory
The YG-1 is one of the leading and fastest-growing global forces in the field of cutting tool manufacturing, with headquarters in Incheon, South Korea. The company was founded in 1981, now counting more than four decades of experience and development, and has established itself as the largest manufacturer in South Korea and one of the top five worldwide in the specialized field of end mills. The company operates 15 production plants and more than 30 subsidiaries worldwide, serving customers in more than 75 countries.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of YG-1 in Greece. We have more than 3,000 YG-1 product codes in stock, a number that continues to increase. In addition, we can support the entire range of the YG-1 catalog, which includes more than 50,000 different product codes.
The YG-1 offers one of the most comprehensive ranges of cutting tools worldwide, covering every metal machining requirement. Its production is based on modern technology and advanced materials for maximum performance and service life.
| SKU | D1 (mm) | D2 (mm) | L2 - L1 (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| ET4RE-NC-6 | 6 | 6 | 57 - 16 | 1 available |
+VAT
€32,00
|
|
| ET4RE-NC-8 | 8 | 8 | 63 - 16 | 1 available |
+VAT
€35,40
|
|
| ET4RE-NC-10 | 10 | 10 | 72 - 22 | 1 available |
+VAT
€57,20
|
|
| ET4RE-NC-12 | 12 | 12 | 83 - 26 | 1 available |
+VAT
€78,00
|
|
| ET4RE-NC-16 | 16 | 16 | 92 - 32 | 1 available |
+VAT
€121,00
|
|
| ET4RE-NC-20 | 20 | 20 | 104 - 38 | 5-8 business days |
+VAT
€184,00
|
