Μαγνήτης Aνύψωσης
| Κωδικός | Ισχύς | Ισχύς Στρογγυλά τμχ | Διάμετρος τμχ | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| Elift-100 | 100 kg | 45 kg | 40-100 mm | €230,00 | 5-7 εργάσιμες | ||
| Elift-300 | 300 kg | 125 kg | 40-160 mm | €400,00 | 5-7 εργάσιμες | ||
| Elift-500 | 500 kg | 215 kg | 60-200 mm | €500,00 | 5-7 εργάσιμες | ||
| Elift-1000 | 1000 kg | 450 kg | 80-350 mm | €1.000,00 | 5-7 εργάσιμες | ||
| Elift-2000 | 2000 kg | 900 kg | 120-400 mm | €2.160,00 | 5-7 εργάσιμες | ||
| Elift-3000 | 3000 kg | 1350 kg | 150-400 mm | €3.360,00 | 5-7 εργάσιμες | ||
| Elift-5000 | 5000 kg | 2250 kg | 200-450 mm | €6.720,00 | 5-7 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%

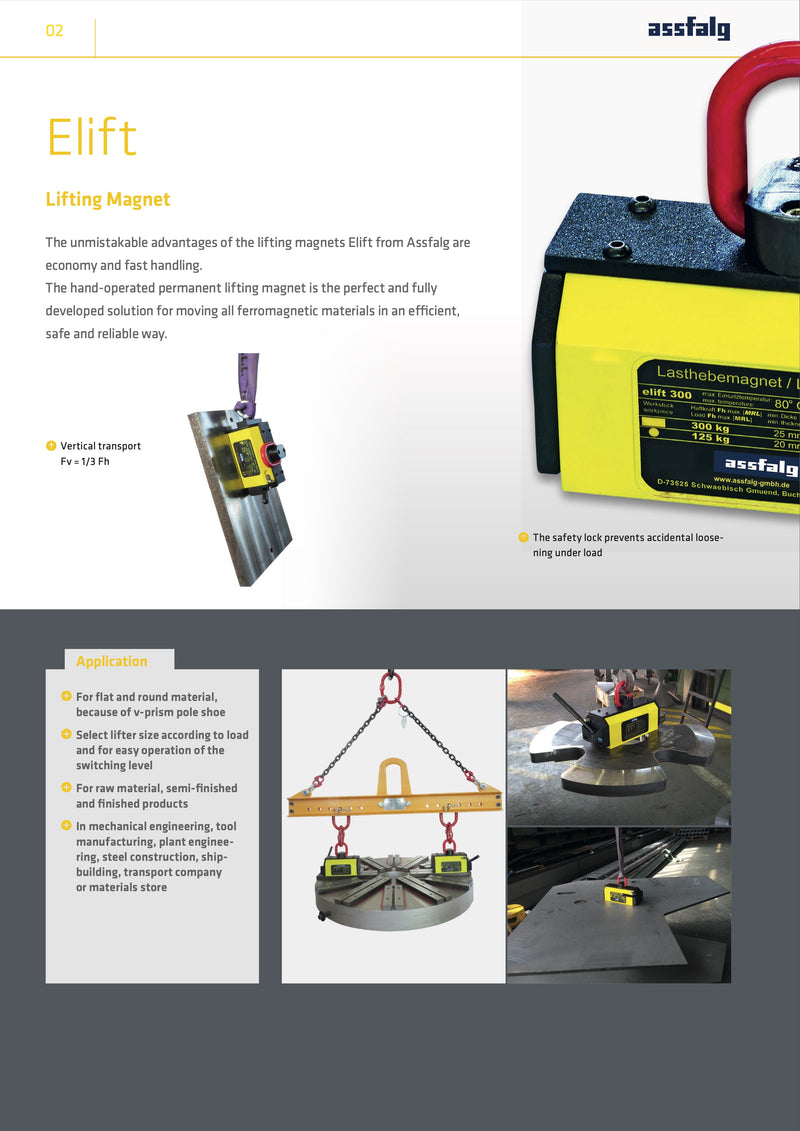

The unmistakable advantages of the load lifting magnets Elift from Assfalg are economy and fast handling.

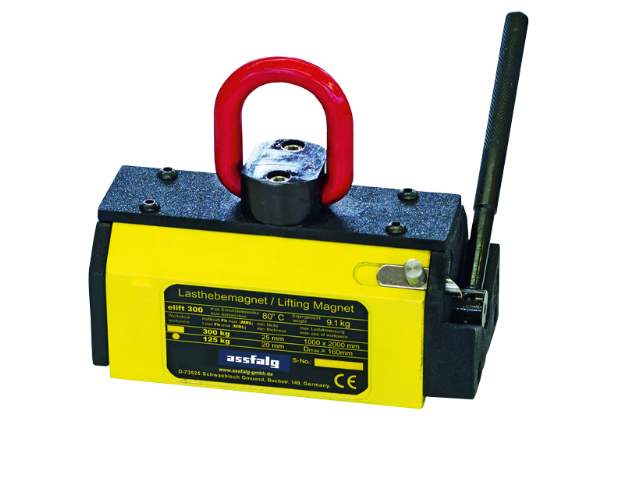

The hand-operated permanent load lifting magnet is the perfect and fully developed solution for moving all ferromagnetic materials in an efficient, safe and reliable way.

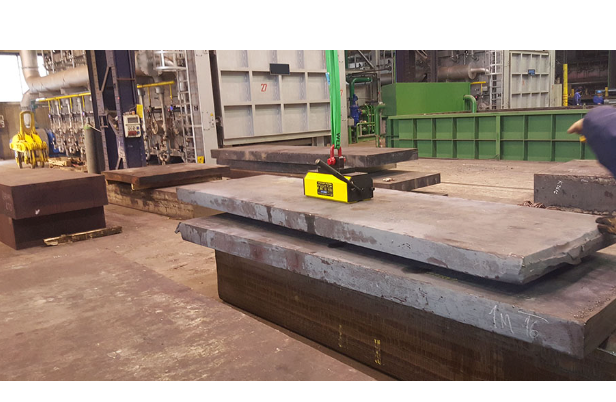

Usage during lifting and transportation includes a variety of flat and round workpieces, from pre-processed materials to raw material.
A wide range of models of the Elift lifting magnets are available with bearing loads between 100 kg and 5000 kg for different material thicknesses.
The Elift has become an irreplaceable helper in many areas of application.
ASSFALG offers an additional ring eyelet for the Elift 300 and Elift 500 allowing vertical transportation.
- Absolutely safe lifting - the pull-off strength is 3 times the recommended lifting force
- No restrictions for scaled, rough or oily surfaces
- No damaging of the work piece surface
- Smooth switching ON/OFF via switch lever
- No springing back of the switch lever
- Simple suspension on a crane

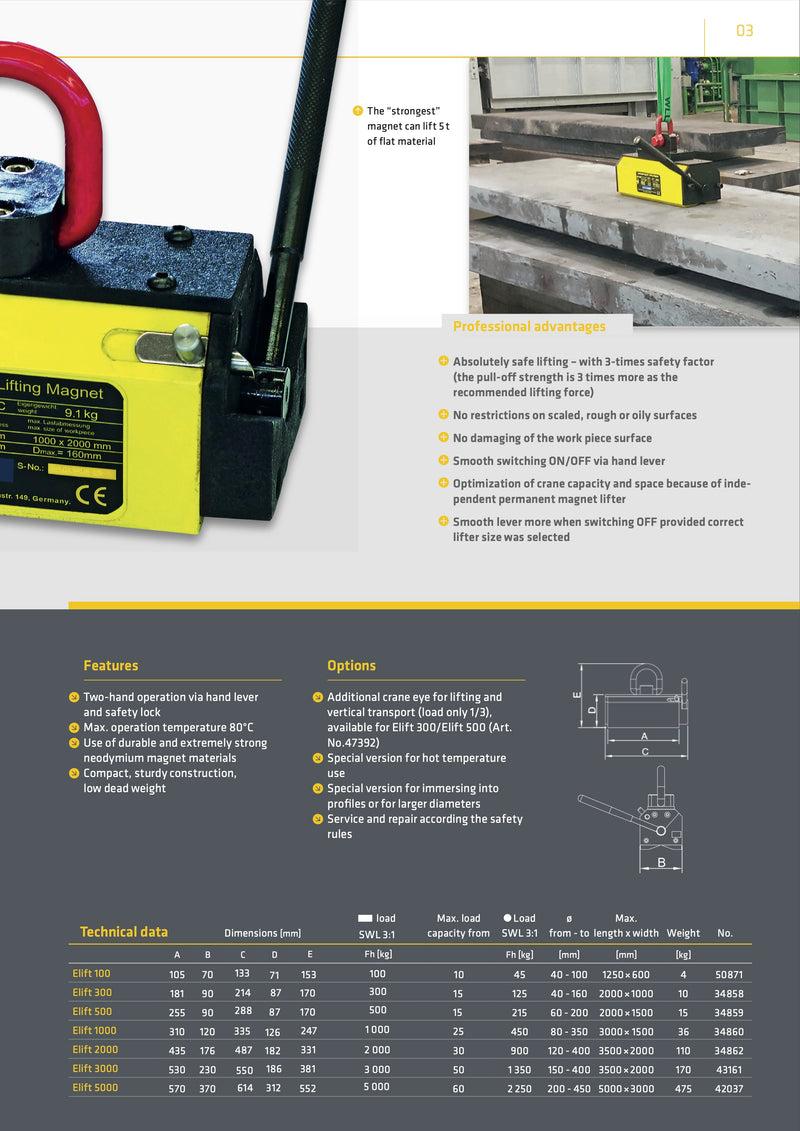

| Technical data | Dimensions [mm] | Flatload - SWL 3:1 | min. thickness | Roundload - SWL 3:1 | Ø from - to | max. length x width | Weight | Item No. | ||||
| A | B | C | D | E | Fh [kg] | [mm] | Fh [kg] | [mm] | [mm] | [kg] | ||
| Elift 100 | 105 | 70 | 133 | 71 | 153 | 100 | 4 - 15 | 45 | 40 - 100 | 1.250 x 600 | 4 | 50871 |
| Elift 300 | 181 | 90 | 214 | 87 | 170 | 300 | 6 - 25 | 125 | 40 - 160 | 2.000 x 1.000 | 10 | 34858 |
| Elift 500 | 255 | 90 | 288 | 87 | 170 | 500 | 8 - 30 | 215 | 60 - 200 | 2.000 x 1.500 | 15 | 34859 |
| Elift 1000 | 310 | 120 | 335 | 126 | 247 | 1.000 | 10 - 50 | 450 | 80 - 350 | 3.000 x 1.500 | 36 | 34860 |
| Elift 2000 | 435 | 176 | 487 | 182 | 331 | 2.000 | 20 - 50 | 900 | 120 - 400 | 3.500 x 2.000 | 110 | 34862 |
| Elift 3000 | 530 | 230 | 550 | 186 | 381 | 3.000 | 30 - 60 | 1.350 | 150 - 400 | 3.500 x 2.000 | 170 | 43161 |
| Elift 5000 | 570 | 370 | 614 | 312 | 552 | 5.000 | 40 - 80 | 2.250 | 200 - 450 | 5.000 x 3.000 | 475 | 42037 |
