Μαγνήτης Aνύψωσης
| Κωδικός | Ισχύς | Ισχύς Στρογγυλά τμχ | Διάμετρος τμχ | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| ELM-100 | 100 kg | 45 kg | 150 mm | €448,00 | 5-7 εργάσιμες | ||
| ELM-300 | 300 kg | 135 kg | 250 mm | €800,00 | 5-7 εργάσιμες | ||
| ELM-600 | 600 kg | 270 kg | 350 mm | €1.280,00 | 5-7 εργάσιμες | ||
| ELM-1000 | 1000 kg | 450 kg | 450 m | €2.080,00 | 5-7 εργάσιμες | ||
| ELM-2000 | 2000 kg | 900 kg | 550 mm | €4.480,00 | 5-7 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
The distinct advantages of the ELM load lifting magnets include their efficiency and quick handling.

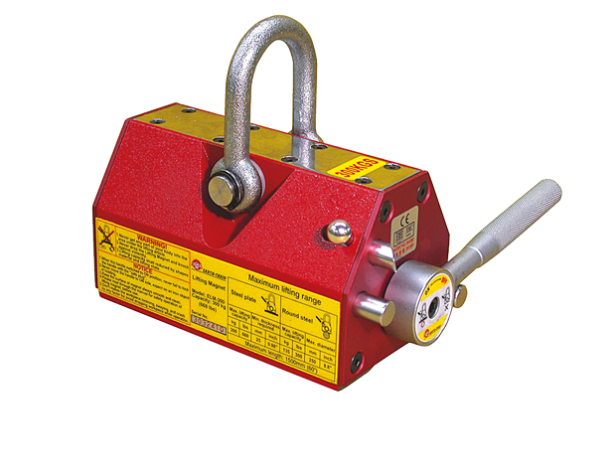

The hand-operated permanent load lifting magnet is the perfect and fully developed solution for moving all ferromagnetic materials in an efficient, safe and reliable way.

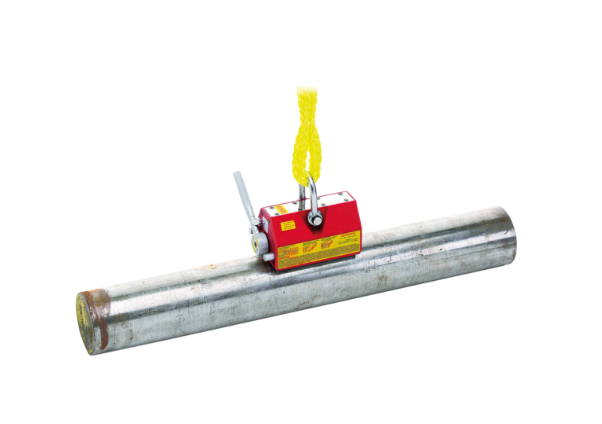

Usage during lifting and transportation includes a variety of flat and round workpieces, from pre-processed materials to raw material.
A wide range of models of the ELM lifting magnets are available with bearing loads between 100 kg and 2000 kg for different material thicknesses.
The ELM has become an irreplaceable helper in many areas of application.
- Absolutely safe lifting - the pull-off strength is 3.5 times the recommended lifting force
- No restrictions for scaled, rough or oily surfaces
- No damaging of the work piece surface
- Smooth switching ON/OFF via switch lever
- No springing back of the switch lever
- Simple suspension on a crane

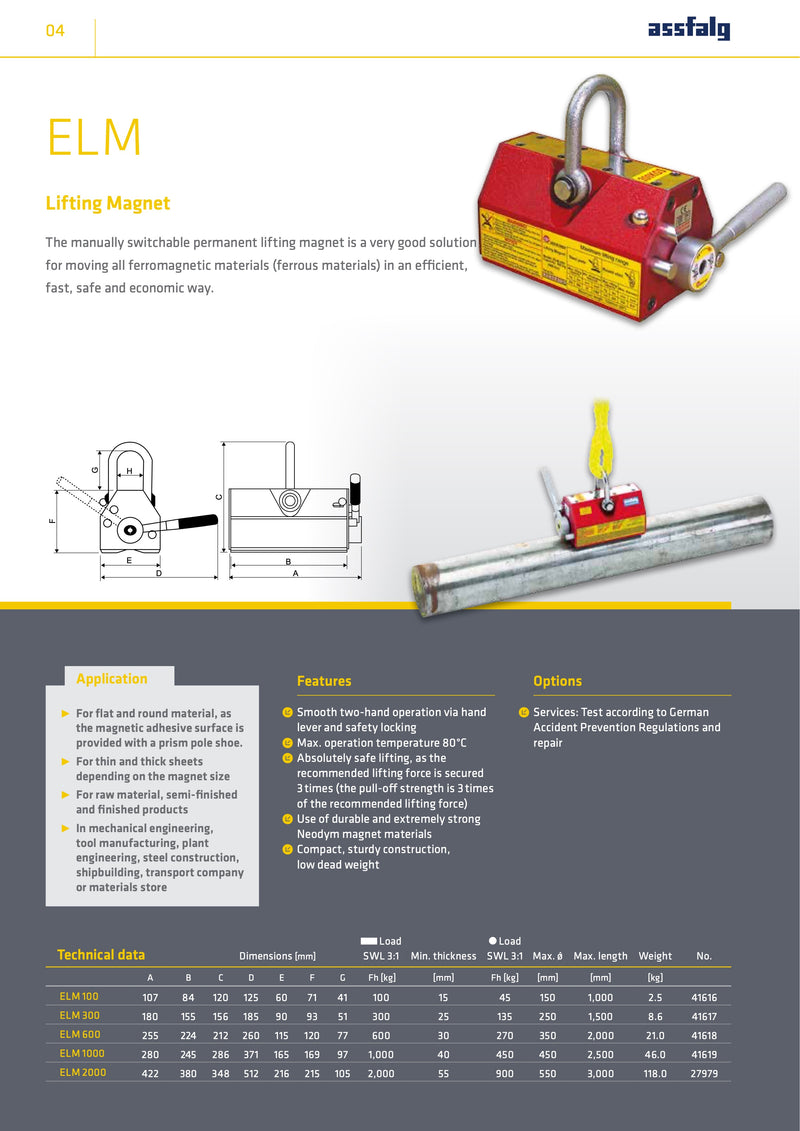

| Technical data | Dimensions[mm] | Flatload SWL 3:1 | min. thickness | Roundload SWL 3:1 | max. Ø | max. length | Weight | Item No. | ||||||
| A | B | C | D | E | F | G | Fh [kg] | [mm] | Fh [kg] | [mm] | [mm] | [kg] | ||
| ELM 100 | 107 | 84 | 120 | 125 | 60 | 71 | 41 | 100 | 15 | 45 | 150 | 1.000 | 2,5 | 41616 |
| ELM 300 | 180 | 155 | 156 | 185 | 90 | 93 | 51 | 300 | 25 | 135 | 250 | 1.500 | 8,6 | 41617 |
| ELM 600 | 255 | 224 | 212 | 260 | 115 | 120 | 77 | 600 | 30 | 270 | 350 | 2.000 | 21,0 | 41618 |
| ELM 1000 | 280 | 245 | 286 | 371 | 165 | 169 | 97 | 1.000 | 40 | 450 | 450 | 2.500 | 46,0 | 41619 |
| ELM 2000 | 422 | 380 | 348 | 512 | 216 | 215 | 105 | 2.000 | 55 | 900 | 550 | 3.000 | 118,0 | 27979 |
