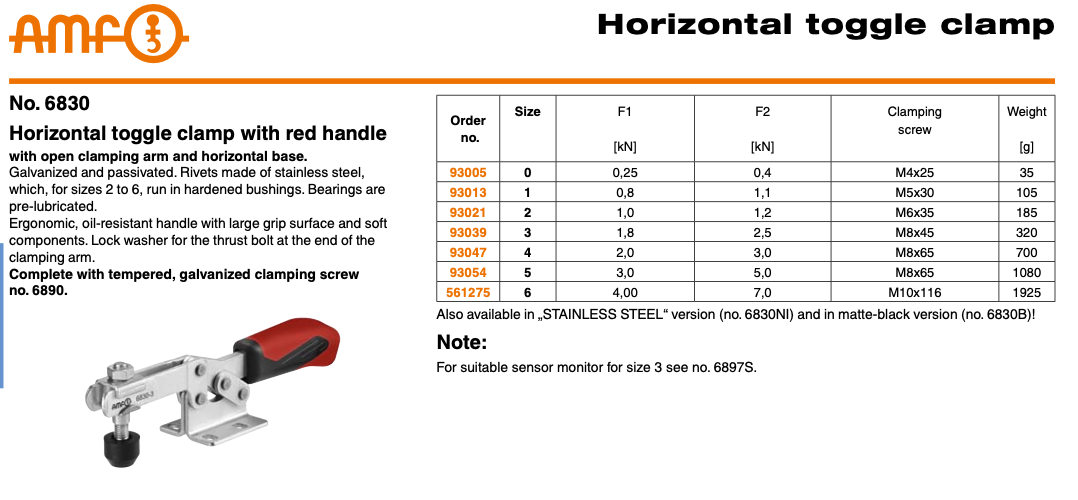

with open clamping arm and horizontal base.
Galvanized and passivated. Rivets made of stainless steel, which, for sizes 2 to 6, run in hardened bushings. Bearings are pre-lubricated.
Ergonomic, oil-resistant handle with large grip surface and soft components. Lock washer for the thrust bolt at the end of the clamping arm.
Complete with tempered, galvanized clamping screw no. 6890.
Quote
| SKU | F1 (kN) | F2 (kN) | Screw | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| 299300 0 | 0.25 | 0.4 | M4x25 | On Order |
+VAT
€18,00
|
|
| 299300 1 | 0.8 | 1.1 | M5x30 | 4 available |
+VAT
€26,70
|
|
| 299300 2 | 1 | 1.2 | M6x35 | 2 available |
+VAT
€29,90
|
|
| 299300 3 | 1.8 | 2.5 | M8x45 | On Order |
+VAT
€36,90
|
|
| 299300 4 | 2 | 3 | M8x65 | On Order |
+VAT
€50,70
|
|
| 299300 5 | 3 | 5 | M8x65 | On Order |
+VAT
€80,00
|
