Photometer for LED (Lux Meter) - Waterproofing IP 52

Photometer for LED (Lux Meter) - Waterproofing IP 52

PCE-LED 30

Κωδικός Range Accuracy Τιμή Στοκ
PCE-LED 30 40 / 400 / 4000 / 40000 / 400000 lux 3% €247,00 1 διαθέσιμo
Τιμές χωρίς ΦΠΑ 24%
1 Έτος Εγγύηση

Photometer for fast and accurate light measurement / 2.5 measurements per second / 1.5-meter sensor cable / Zeroing / Automatic range selection / Portable handheld device with batteries / Measurement in lux or footcandle

The LED photometer features an external light sensor with a 1.5 m cable for easy placement and accurate measurements. It offers immediate value display and functions HOLD, MIN/MAX, average value, zeroing, and automatic range selection.
Supports measurements in lux and footcandle, and operates on batteries for full portability.

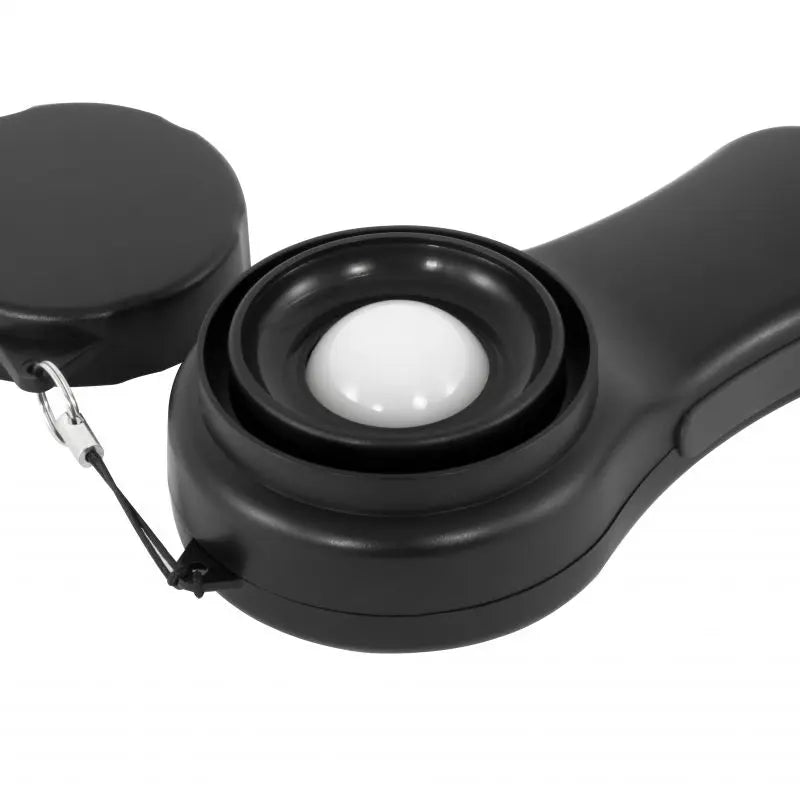

The sensor has a protective cap for safety and proper zeroing procedure.

Main Features

  • Ergonomic design

  • Accuracy adjusted for white LED

  • Battery status indicator

  • Automatic power off

  • Overload indication

  • Optional measurement in lux or fc

  • MIN / MAX / AVG / HOLD

  • 2.5 measurements per second

  • Tare

  • Automatic range selection

  • Suitable for measurements on LED light sources

Parameter Measuring Range Reading Accuracy
Illuminance (lux) 0 … 40 lx 0.01 lx ±3% of the value @ LED 2856 K, ±6% for other visible light
Illuminance (lux) 40 … 400 lx 0.1 lx ±3% of the value @ LED 2856 K, ±6% for other visible light
Illuminance (lux) 400 … 4000 lx 1 lx ±3% of the value @ LED 2856 K, ±6% for other visible light
Illuminance (lux) 4000 … 40000 lx 1 lx ±3% of the value @ LED 2856 K, ±6% for other visible light
Illuminance (lux) 40000 … 400000 lx 1 lx ±3% of the value @ LED 2856 K, ±6% for other visible light
Illuminance (fc) 0 … 40 fc 0.01 fc ±3% of the value @ LED 2856 K, ±6% for other visible light
Illuminance (fc) 40 … 400 fc 0.1 fc ±3% of the value @ LED 2856 K, ±6% for other visible light
Illuminance (fc) 400 … 4000 fc 1 fc ±3% of the value @ LED 2856 K, ±6% for other visible light
Illuminance (fc) 4000 … 40000 fc 1 fc ±3% of the value @ LED 2856 K, ±6% for other visible light

Technical specifications

Description Price
Measurement functions MIN, MAX, HOLD, average
Units lx, fc
Display type LCD
Screen size 2.8"
Measuring rate 2.5 s
Memory Internal
Memory capacity 99 values
Standards JIS C1609:1993, CNS 5519
Sensor Silicone photodiode with built-in filter
Automatic power off 5 minutes
Auto power-off disable function Yes
Sensor length 12 cm
Light sources White LED & other visible sources
Repeatability ±3% (LED & reference lamp 2856 K), ±6% for other visible light
Sensor cable length 1.5 m
Menu language English (US)
Protection rating IP52
Weight 311.5 g
Dimensions (L x W x H) 166 × 90 × 36 mm
Operating conditions 5 … 40°C, 0 … 70% r.H
Storage conditions -10 … 60°C, 0 … 70% r.H
Battery 3 × 1.5 V AA alkaline


Package contents

  • 1 × PCE-LED 30 photometer

  • 1 × Light sensor with protective cap

  • 3 × AA 1.5 V batteries

  • 1 × Carrying case

  • 1 × User manual
