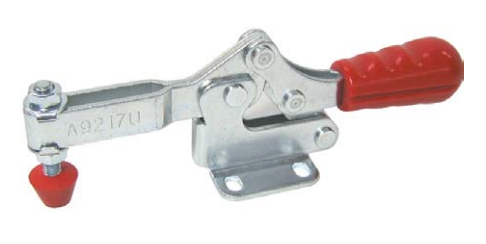

Horizontal Toggle Clamp
299301
| Κωδικός | F1 (kN) | F2 (kN) | L | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| 299301 0 | 0.25 | 0.38 | - | €13,70 | 6 διαθέσιμα | ||
| 299301 2 | 1 | 0.9 | - | €20,60 | 1 διαθέσιμo | ||
| 299301 3 | 1.8 | 2.2 | - | €25,10 | 2 διαθέσιμα | ||
| 299301 4 | 4 | 3.4 | - | €34,00 | 6 διαθέσιμα | ||

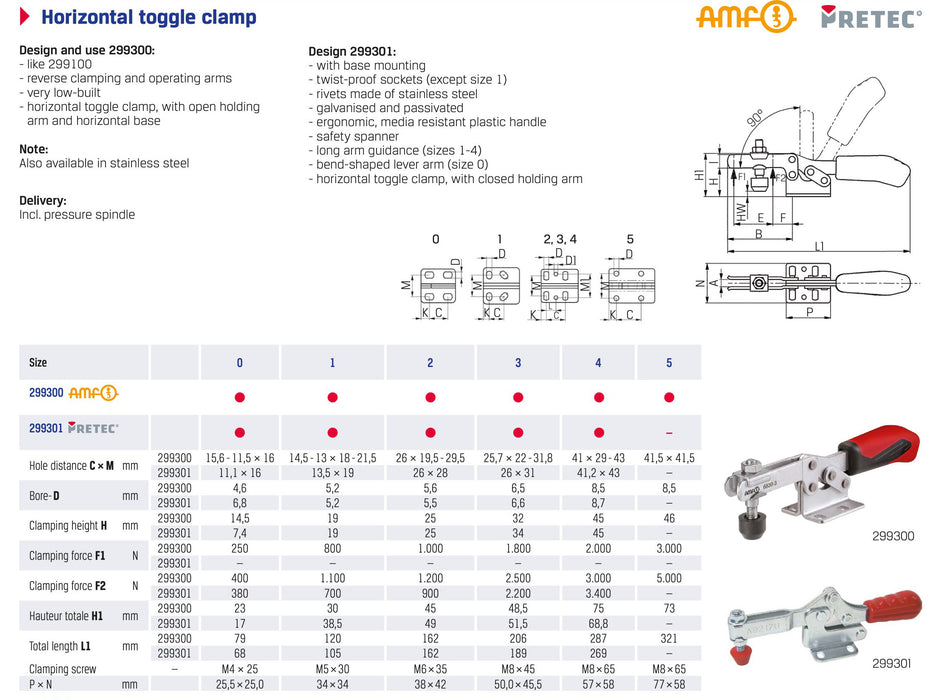

Technical Specifications
-
Available versions: 299300 (AMF), 299301 (PRETEC)
-
Type: Horizontal toggle clamp
-
Installation: Mounting base
-
Material: Stainless steel, galvanized and passivated
-
Handle: Plastic, ergonomic, chemical resistant
-
Arm type: Open (299300), closed (299301)
-
Reverse clamping operation
-
Overall height (per size): from 17 mm to 73 mm
-
Clamping force: up to 5,000 N
-
Clamping pressure adjustable via screw
-
Includes: Pressure spindle
-
Clamping screw thread: M4 to M8 (depending on size)
Description
The horizontal toggle clamp is used to hold components in a fixed position during machining or assembly. It is suitable for applications with limited height, offers strong and stable clamping, and is available in different sizes and holding forces. There are two basic versions, with an open or closed clamping arm.
