System for simultaneous measurement from Writing Clocks
| Κωδικός | Type | Τιμή | Στοκ | ||
|---|---|---|---|---|---|
| 7107-1 | Box 4 indicators | €196,00 | 1 διαθέσιμo | ||
| 7107-2 | Box 8 indicators | €329,00 | 5-8 εργάσιμες | ||
| 7309-C01M | Cable | €83,00 | 5-8 εργάσιμες | ||
| 7107-3 | connection for 4 Boxes | €184,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
Compatible with the clocks:
7107
2112 (Cable 7309-C01M is also needed)
2114 (Cable 7309-C01M is also needed)
2115 (Cable 7309-C01M is also needed)
2116 (Cable 7309-C01M is also needed)
2501 (Cable 7309-C01M is also needed)
2103 (Cable 7309-C01M is also needed)
2104 (Cable 7309-C01M is also needed)

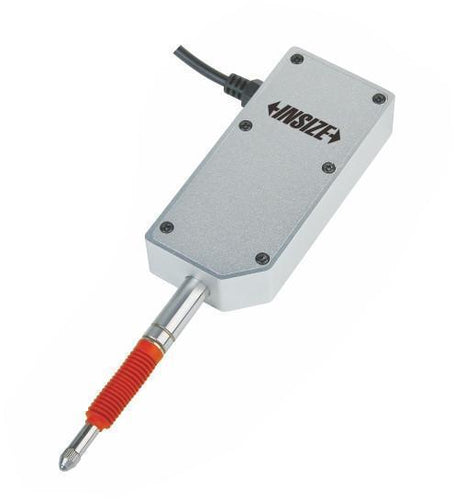

- Measuring range 12mm
- Resolution 0.01mm
- Accuracy 20μm
- Hysteresis 10μm
- Measuring principle capacity system
- Sampling frequency 100 times/sec
- Dust/waterproof IP65
- Measuring force 1.5N
- Software is supplied with interface boxes
- In the software, it is possible to set tolerance of each channel and show judgment (red when out of tolerance, green when within tolerance), set zero, collect data manually or automatically (time is adjustable), output data to Excel, print report.
