Premium Steel Lifting Magnet
PML
| Κωδικός | Power | Τιμή | Στοκ | ||
|---|---|---|---|---|---|
| PML-100 | 100 kg | €186,00 | Κατόπιν Παραγγελίας | ||
| PML-300 | 300 kg | €384,00 | 1 διαθέσιμo | ||
| PML-600 | 600 kg | €575,00 | 1 διαθέσιμo | ||
| PML-1000 | 1000 kg | €1.016,00 | Κατόπιν Παραγγελίας | ||
| PML-2000 | 2000 kg | €1.937,00 | Κατόπιν Παραγγελίας | ||

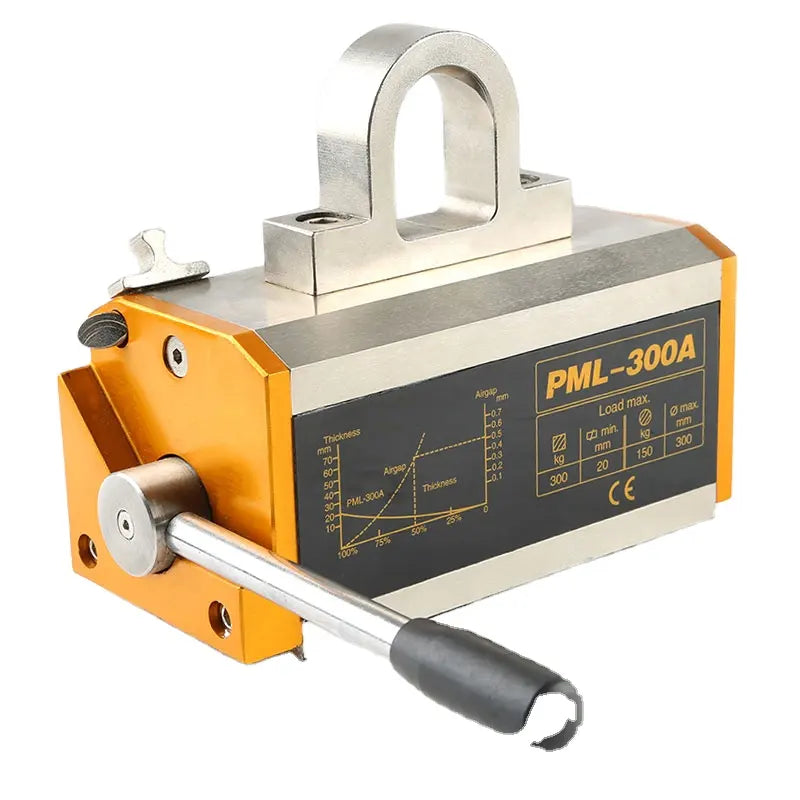

PML Magnetic Crane Lifter Permanent Magnetic Plate Lifter
Main uses and characteristics
1. The PML magnetic lifter is composed of Nd-Fe-B permanent magnet with high performance.
2. The handle’s movement changes the magnetic force to achieve adsorption or release of the workpiece.
3. There is a steel ring on top of the magnetic lifter for hoisting objects, and a V-shaped groove at the bottom for holding corresponding cylindrical objects. The force magnet guarantees an indefinitely high degree of concentration and stable strength.
4. The safe load coefficient is 3.5 times; even if hung between the workpiece and the lifter with a larger air gap, it can still guarantee the best active status.
5. Mainly used in the hoisting process by connecting the hoisting workpiece; used to move steel plates and other magnetically induced workpieces.
6. Safe and reliable operation, the compact lightweight design is widely applied in factories, wharfs, warehouses, and the transportation industry.
7. The improvement of loading, unloading, and transporting working conditions enhances working efficiency.
PML Magnetic Crane Lifter Permanent Magnetic Plate Lifter
Main uses and characteristics
1. The PML series permanent magnetic lifter is composed of Nd-Fe-B permanent magnetic material with a high-performance ferromagnetic system.
2. The handle’s movement changes the magnetic force of the ferromagnetic system to achieve adsorption and release of the workpiece.
3. There is a steel ring on top of the magnetic lifter for hoisting objects, and a V-shaped groove at the bottom for holding corresponding cylindrical objects. The force magnet guarantees an indefinitely high degree of concentration and stable strength.
4. The safe load coefficient is 3.5 times; even if hung between the workpiece and the lifter with a larger air gap, it can still guarantee the best active status.
5. Mainly used in the hoisting process by connecting the hoisting workpiece; used to move steel plates and other magnetically induced workpieces.
6. Safe and reliable operation, the compact lightweight design is widely applied in factories, wharfs, warehouses, and the transportation industry.
7. The improvement of loading, unloading, and transporting working conditions enhances working efficiency.

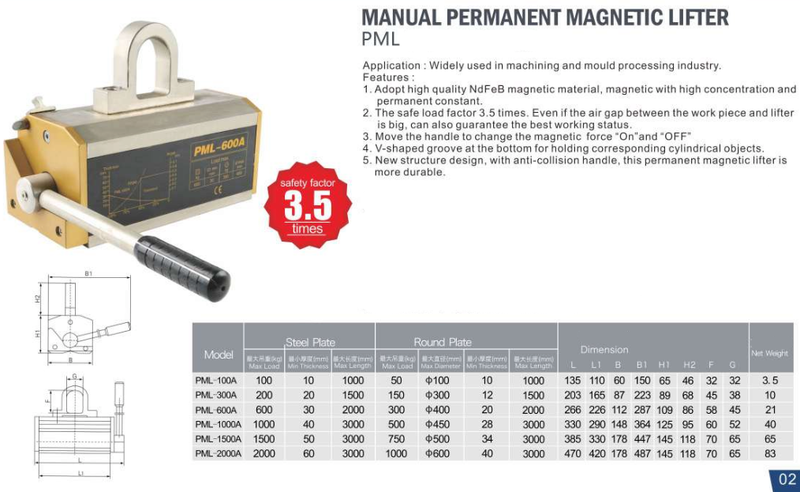

The main structure and parameters
|
ITEM NO.
|
DESCRIPTION
|
||||||||||
|
Rated lifting capacity (KG)
|
Shape Size (MM)
|
N.W. (KG)
|
|||||||||
|
Steel plate
|
Round steel
|
L
|
L1
|
B
|
H1
|
H2
|
B1
|
F
|
G
|
||
|
PML-300
|
300
|
150
|
203
|
165
|
87
|
89
|
68
|
223
|
45
|
38
|
10
|
|
PML-600
|
600
|
300
|
266
|
226
|
112
|
109
|
86
|
287
|
58
|
45
|
21
|
|
PML-1000
|
1000
|
500
|
330
|
290
|
148
|
125
|
95
|
364
|
60
|
52
|
40 |
|
PML-2000
|
2000
|
1000
|
470
|
420
|
178
|
145
|
118
|
487
|
70
|
65
|
83
|
