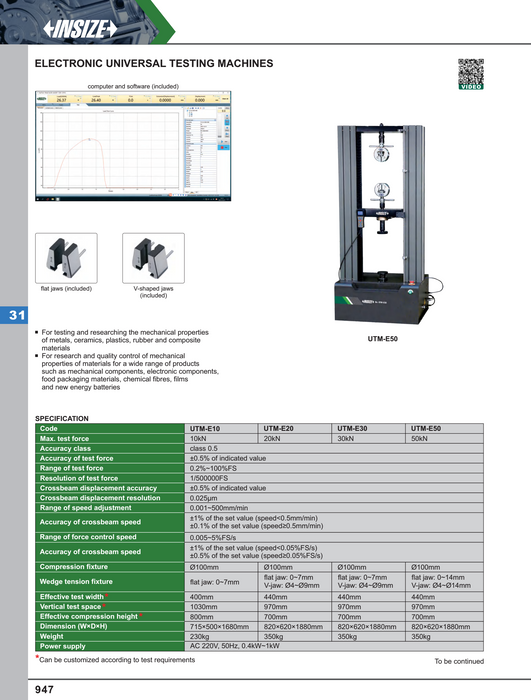

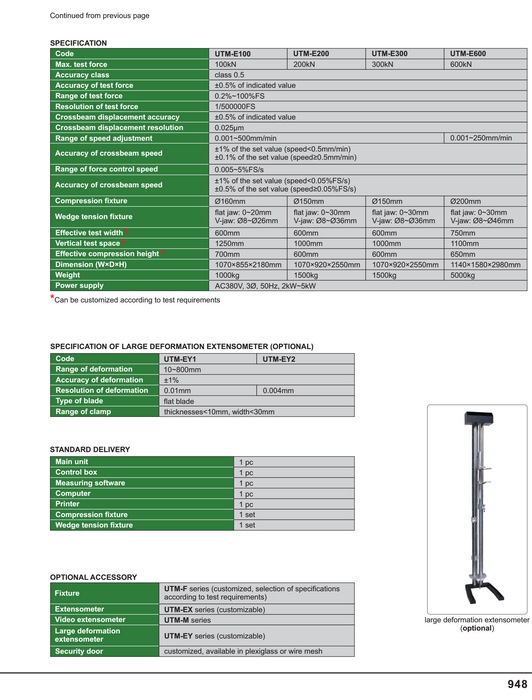

Specifications
- Type: Electronic Universal Testing Machine (UTM)
- Accuracy class: class 0.5
- Test force accuracy: ±0.5% of indicated value
- Test force range: 0.2%~100%FS
- Test force resolution: 1/500000FS
- Crossbeam displacement accuracy: ±0.5% of indicated value
- Crossbeam displacement resolution: 0.025μm
- Speed adjustment range: 0.001~500mm/min (up to 250mm/min on some models)
- Crossbeam speed accuracy: ±1% of set value (speed <0.5mm/min), ±0.1% of set value (speed ≥0.5mm/min)
- Force control speed range: 0.005~5%FS/s
- Accuracy (force control mode): ±1% of set value (speed <0.05%FS/s), ±0.5% of set value (speed ≥0.05%FS/s)
- Compression fixture: included (plate diameter varies by model)
- Wedge tension fixture: included (flat jaw / V-jaw, clamping ranges vary by model)
- Power supply: AC 220V, 50Hz, 0.4kW~1kW or AC 380V, 3Ø, 50Hz, 2kW~5kW (model-dependent)
- Software & computer: included (computer and software included)
- Standard delivery: main unit (1 pc), control box (1 pc), measuring software (1 pc), computer (1 pc), printer (1 pc), compression fixture (1 set), wedge tension fixture (1 set)
- Note: Items marked with (*) can be customized according to test requirements
Description
Electronic Universal Testing Machines are computer-controlled UTMs used to test mechanical properties of materials in tension and compression. They are used for research and quality control on metals, ceramics, plastics, rubber, and composite materials, as well as on components and products such as mechanical/electronic parts, packaging materials, fibers, films, and batteries.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
| SKU | Range | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|
| UTM-E10 | 10kN | 5-8 business days |
+VAT
€19.136,00
|
|
| UTM-E50 | 50kN | 5-8 business days |
+VAT
€21.011,00
|
|
| UTM-E100 | 100kN | On Order |
+VAT
€36.558,00
|
|
| UTM-E300 | 300kN | On Order |
+VAT
€55.654,00
|
