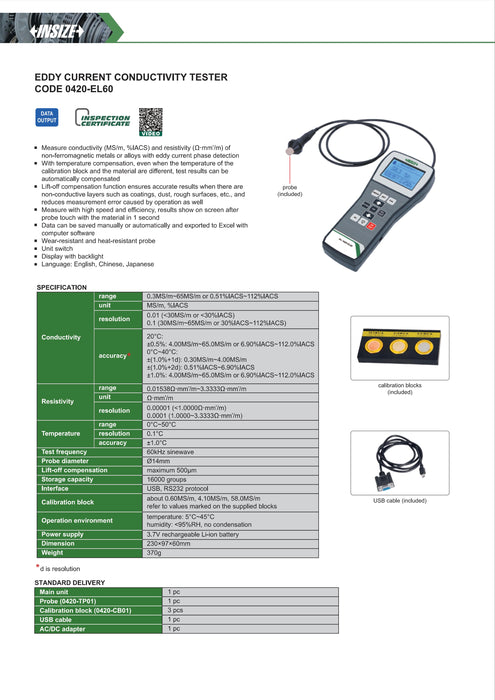

Conductivity:

• Range: 0.3MS/~65MS/m or 0.51%IACS~112%IACS

• Unit: MS/m, %IACS

• Resolution:

  • 0.01 (<30MS/m or <30%IACS)

  • 0.1 (30MS/m~65MS/m or 30%IACS~112%IACS)

• Accuracy: ±0.5% (20°C)· ±1% (0°C~50°C)

Resistivity:

• Range: 0.01538Ω·mm²/m~3.33333Ω·mm²/m

• Unit: Ω·mm²/m

• Resolution: 0.00001Ω·mm²/m

• Accuracy: ±0.5% (20°C)· ±1% (0°C~50°C)

Temperature:

• Range: 0°C~50°C

• Resolution: 0.1°C

• Accuracy: ±0.5°C

Measurement frequency: 60kHz sinusoidal wave

Probe diameter: Ø14mm

Distance compensation from surface: up to 500μm

Storage capacity: 16000 groups

Interface: USB, RS232 protocol

Calibration block: approximately 0.60MS/m, 4.10MS/m, 58.0MS/m

Operating environment:

• Temperature: 0°C~50°C

• Humidity: <95%RH, non-condensing

Power supply: Rechargeable Li-ion battery 3.7V

Dimensions: 230×97×60mm

Weight: 370g

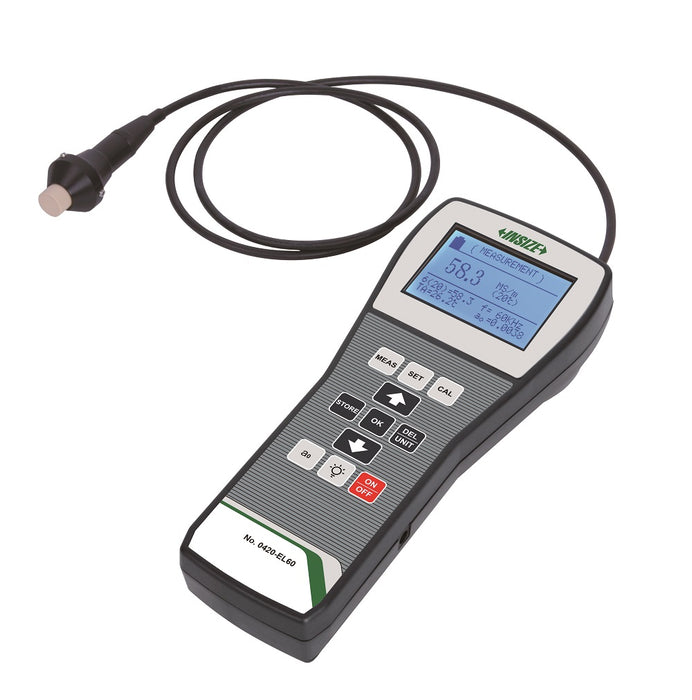

Measurement of conductivity (MS/m, %IACS) and specific resistance (Ω·mm²/m) in non-ferromagnetic metals or alloys with eddy current phase detection

Temperature compensation for automatic correction of results, even if the temperature of the material and calibration block differ

Distance compensation function for accurate measurement in cases of non-conductive layers (e.g., coatings, dust, rough surfaces) and reduction of errors from use

Fast and efficient measurement with results displayed 1 second after probe contact with the material

Data storage capability manually or automatically and export to Excel using computer software

Wear and heat resistant probe

Measurement unit toggle

Backlit display

Supported languages: English, Chinese, Japanese
