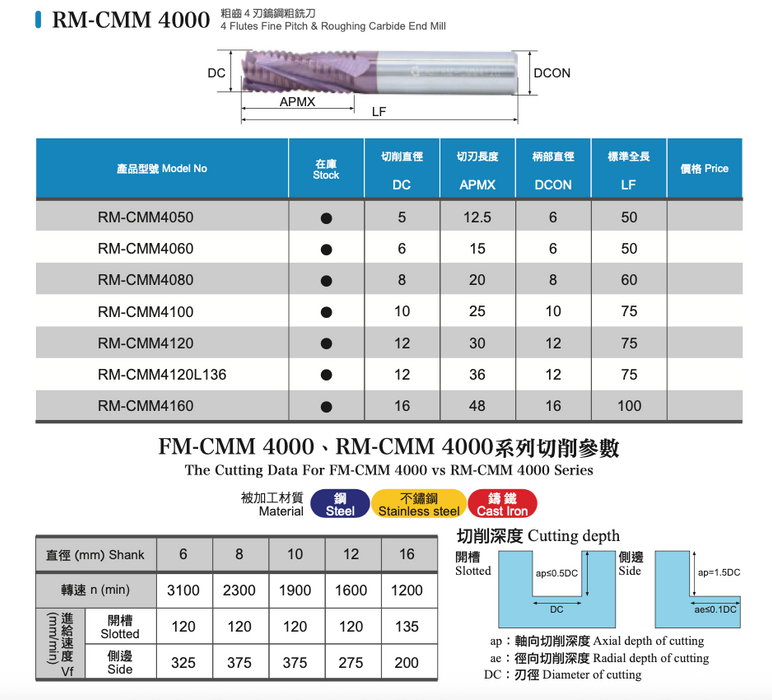

Technical Specifications
-
Type: Carbide Reaper endmill with fine pitch and 4 flutes
-
Material: Carbide
-
Coating: Yes
-
Number of Flutes: 4
-
Available cutting diameters (DC): 5 mm to 16 mm
-
Cutting length (APMX): 12.5 mm to 48 mm
-
Shank diameter (DCON): 6 mm to 16 mm
-
Overall length (LF): 50 mm to 100 mm
-
Suitable for: Steels, stainless steels, cast iron
-
Recommended revolutions per diameter:
-
Ø6 mm: 3100 rpm
-
Ø8 mm: 2300 rpm
-
Ø10 mm: 1900 rpm
-
Ø12 mm: 1600 rpm
-
Ø16 mm: 1200 rpm
-
-
Recommended cutting speed (mm/min):
-
Steel (Slotted): 120–135
-
Steel (Side): 325–375
-
Stainless steel: up to 275
-
Cast iron: up to 200
-
-
Cutting depth:
-
Axial (ap): up to 0.5 × DC (Slotted), up to 1.5 × DC (Side)
-
Radial (ae): up to 0.1 × DC
-
Description
Reaper endmill made of carbide with 4 flutes and fine pitch, suitable for roughing and finishing applications in steel, stainless steel, and cast iron. Available with coating for increased wear resistance and supports deep side milling and controlled depth in longitudinal cutting.

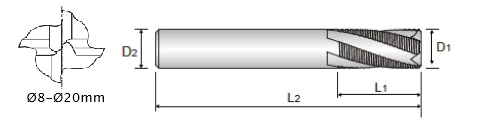

| SKU | D1 (mm) | D2 (mm) | L2 - L1 (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| ET4RE-5 | 5 | 6 | 50 - 12.5 | 7 available |
+VAT
€24,00
€19,20
|
|
| ET4RE-6 | 6 | 6 | 50 - 15 | 10 available |
+VAT
€22,00
€18,00
|
|
| ET4RE-8 | 8 | 8 | 60 - 20 | 8 available |
+VAT
€23,00
€18,50
|
|
| ET4RE-10 | 10 | 10 | 75 - 25 | 1 available |
+VAT
€34,00
€27,60
|
|
| ET4RE-12 | 12 | 12 | 75 - 30 | 3 available |
+VAT
€50,00
€39,70
|
