Specifications
- Magnification: 10X-200X
- Resolution: 1.3M (1280x1024)
- Lighting: Built-in adjustable LED
- Power supply: Built-in rechargeable battery
Includes
- Microscope: 1 pc
- Support ring for 80X/150X: 1 pc
- Support ring for 60X/200X: 1 pc
- Glass graduated ruler (0.1mm): 1 pc
- Plastic graduated ruler (1mm): 1 pc
- Software and USB cable: 1 pc
- AC/DC power supply: 1 pc
Optional Accessories
- Support base (code ISM-PM-STAND)
- Green filter (code ISM-PM-GREEN)
- Yellow filter (code ISM-PM-YELLOW)
- Blue filter (code ISM-PM-BLUE)
Software
-
ISM-PAD (for iPad via WiFi)
- Measurement of line length or distance between two points
- Measurement of radius, circumference, and circle surface with three points
- Angle measurement
-
ISM-APK (for Android via WiFi)
- Measurement of line length or distance between two points
- Measurement of radius, circumference, and circle surface with three points
- Angle measurement
-
ISM-WF Partner (for computer via WiFi)
- Measurement of line length or distance between two points
- Measurement of polygon surface, angle with three points, circle radius, and other geometric measurements
-
ISM-PRO (for computer via USB)
- Advanced measuring tools with edge detection, tool comparison, and data export to CAD or Excel
Description

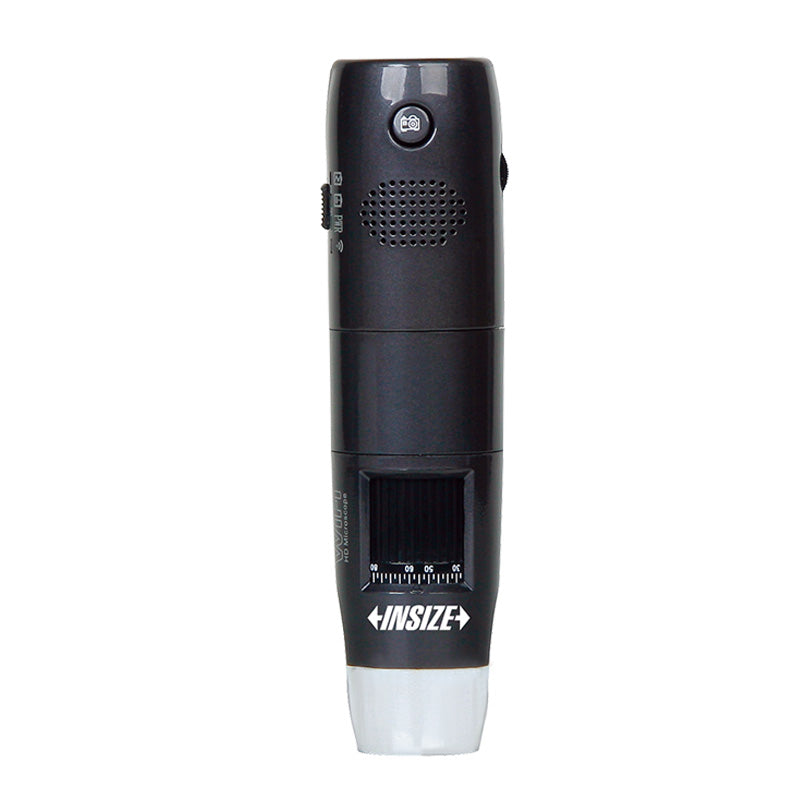

The ISM-WF200 WiFi digital measuring microscope offers magnification from 10X to 200X and a 1.3 megapixel resolution. It features built-in adjustable LED lighting and a rechargeable battery, making it portable and versatile. It can connect wirelessly to iPads, Android devices, or computers via WiFi for real-time observation and recording of images and videos. It is used for precise dimension measurement and surface analysis in various fields such as science, education, and industry.
2 Years Warranty
INSIZE Factory
INSIZE was founded in 1995 and is one of the world’s leading manufacturers of measuring instruments and metrology equipment.
With factories in China and other countries in Asia, as well as production facilities in Germany and Italy for the INSIZE PLUS series, the company offers products that stand out for their accuracy, durability, and reliability, while being distinguished by an excellent quality-to-price ratio.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of INSIZE in Greece since 2007. We have more than 1,500 INSIZE product codes in stock, a number that is continuously increasing. In addition, we can support the entire range of the Insize catalog which includes more than 40,000 different product codes.
In our store we provide technical support for all INSIZE products through trained technicians, while ensuring high availability of spare parts, ensuring prompt service and reliability for our customers.
INSIZE Products
INSIZE offers a complete range of measuring instruments for industrial, machining and laboratory use, such as:
- Calipers and Micrometers
- Dial Indicators and Depth Gauges
- Bore Gauges, Telescopic Gauges, Vernier Height Gauges, as well as Measuring Rules
- Precision Levels, Squares, and Straightedges
- Surface Plates, Height Gauges, and Johansson Gauge Blocks
- Thread, Hole, and Shaft Gauges
- Hardness Testers, Roughness Testers, Ultrasonic Thickness Gauges and Coating Thickness Gauges
- Dynamometers, Tachometers, and Endoscopes
- CMM measuring systems, Profile Projectors, as well as Microscopes
All of its products meet European specifications, following various international quality and safety standards.
