Name: Geiger Radiation Meter with Bluetooth
Brand: PCE Instruments
SKU: PCE-RAM 10
Price: 641.08 EUR
Availability: InStock

Radiation Meters

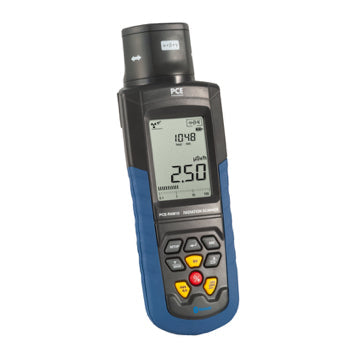

Μετρητής ραδιενέργειας Geiger PCE-RAM 10 PCE, μαύρο-μπλε, με μεγάλη οθόνη και πλήκτρα λειτουργιών

Μετρητής ραδιενέργειας Geiger PCE-RAM 10 PCE, χειρός, με οθόνη LCD και πλήκτρα ελέγχου, μαύρο-μπλε σώμα

Μετρητής ραδιενέργειας Geiger PCE Instruments PCE-RAM 10 με Bluetooth, μαύρο-μπλε, οθόνη και πλήκτρα ελέγχου

Μετρητής ραδιενέργειας Geiger PCE Instruments PCE-RAM 10 με μεγάλη οθόνη LCD, μαύρο-μπλε σώμα, ένδειξη μSv/h

Βαλιτσάκι μεταφοράς με μετρητή ραδιενέργειας Geiger PCE Instruments PCE-RAM 10, οθόνη LCD και πλήκτρα χειρισμού

Χρήση μετρητή ραδιενέργειας Geiger PCE Instruments PCE-RAM 10 σε εργαστήριο, σε πάγκο με δείγματα και εξοπλισμό μέτρησης

Μετρητής ραδιενέργειας Geiger PCE Instruments PCE-RAM 10 σε χρήση, με οθόνη και πράσινο κύβο δείγματος πάνω στον αισθητήρα

Μετρητής ραδιενέργειας Geiger PCE Instruments PCE-RAM 10 με οθόνη μSv/h, σε χρήση δίπλα σε φωσφορίζοντα ραβδιά

Description

Types of radiation	alpha-, beta-, gamma-, and x-radiation
Measuring range	Radiation dose rate: 0.01 ... 1000 μSv / h Pulse dose rate: 0 ... 30,000 cpm, 0 ... 5000 cps Radiation dose accumulation: 0.001 ... μSv ... 9.999 Sv Pulse dose accumulation: 0 . 9.999
Sensitivity	108 pulses or 1000 cpm / mR / hour in a cobalt-60 irradiated environment with 1 μSv / h current Alpha rays: from 4 MeV Beta rays: from 0.2 MeV Gamma rays: from 0.02 MeV X-rays: from 0.02 MeV
Accuracy	<10% (less than 500 μSv / hour) <20% (less than 600 μSv / hour)
Radiation selection	Combination of alpha-, beta-, gamma-, and X-rays
Sensor	Halogen compensation accumulator
Connectivity	Bluetooth
Average process time	Manual or automatic, adjustable between 2 ... 12 seconds
Display	Digital LCD, with bar graph
Alarm function	Acoustic alarm for manually selected value
Normal natural background radiation value	Less than 0 ... 0.2 μSv / h
Memory	Automatic memory for <2000 measured values
Software	Real-time data transmission, analysis and recording
Operating temperature	0 ... +50°C / 0 ... 122°F
Power supply	4 x 1.5V AA batteries
Dimensions	200 x 70 x 45 mm / 7.9 x 2.8 x 1.8 in
Weight	206 g / < 1 lbs

Gauge radiation Geiger for detection of α-, β-, γ- and x-radiation / High accuracy / Internal data memory /
Large LCD screen / Data transfer to computer / Bluetooth interface

The Geiger radiation meter PCE-RAM 10 was developed to detect alpha, beta, gamma, and x radiation. Multiple readings are displayed on the high-resolution LCD screen with backlight. It features internal memory for up to 2000 measurements, which can be stored either manually or automatically, and the capability to connect via Bluetooth to a computer for real-time transfer of measurement data. With the software included in the delivery, the data can then be further processed and checked. The PCE-RAM 10 stands out for its high accuracy and practical design. The meter radioactivity can be applied in the pharmaceutical industry, laboratories, power plants, quarries, emergency services, metal industries, oil tanks, environmental protection, etc.

- Radiation of α-, β-, γ- and x-particles
- High measurement accuracy
- Internal data storage for 2000 values
- Large LCD display
- Bluetooth connection
- Data processing software

Package contents

1 x Geiger Radiation Meter PCE-RAM 10
1 x Software
4 x 1.5 V AA batteries
1 x Carrying case
1 x User manual
