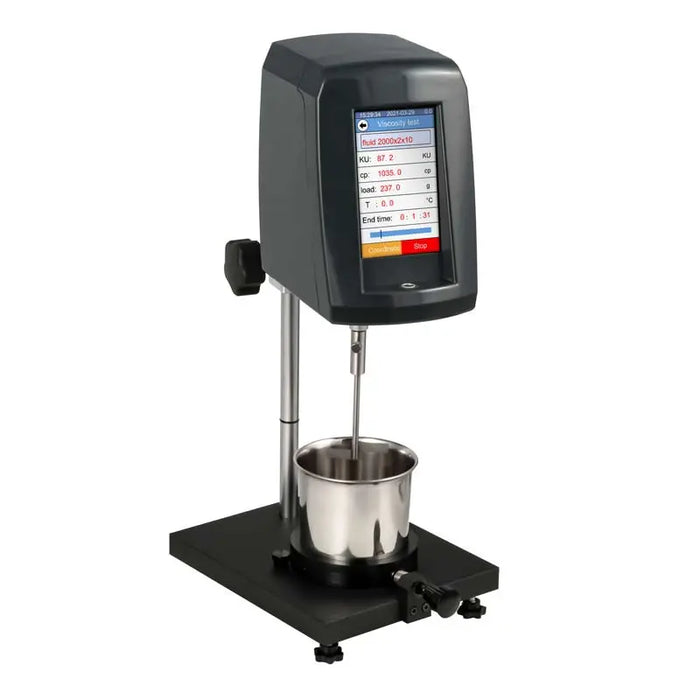

PCE-RVI 8 - Digital Viscometer
| Viscosity | |
| Measurement range | 40.2 ... 141 KU |
| 27 ... 5250 cp (1cP = 1 mPa*s) | |
| 32 ... 1099 g | |
| Reading | 0.1 KU |
| 1 pc | |
| 1 g | |
| Accuracy | ±1 % of full scale |
| Temperature | |
| Measurement range | -20 ... 250 °C / -4 ... 482 °F |
| Reading | 0.1 °C |
| Accuracy | ±0.3 °C |
| Axis | KU1 |
| Rotational speed | 200 rpm |
| Sample volume | 600 ml |
| Screen | Touch 5" LCD |
| Power supply | mains: 100 ... 240 V AC, 0.5 A |
| secondary: 12V DC, 2 A | |
| Operating conditions | 5 ... 35 °C / 41 ... 95 °F, (20 °C / 68 °F recommended temperature), <80 % non-condensing |
| Dimensions | 420 x 180 x 300mm / 16.5 x 7.1 x 11.8" |
| Weight | 5 kg/ 11 lbs |
PC Interface Viscometer / Touch Screen /
Measuring units KU, cP, g / Measuring range 40.2 ... 141 KU / Height-adjustable support base /
For measuring the viscosity of liquids / Shutdown in case of overload / Optional software
Measuring units KU, cP, g / Measuring range 40.2 ... 141 KU / Height-adjustable support base /
For measuring the viscosity of liquids / Shutdown in case of overload / Optional software
The viscometer has a measuring range of 27…. 5250 cp and an accuracy of ±1% of the measuring range. Due to the wide measuring range, it is possible to carry out a wide range of measurements with the viscometer such as the accurate determination of the viscosity of paints, oils and other liquids.
The 5" LCD touch screen allows easy operation of the viscometer. The measured values from the viscometer are displayed during the measurement, while at the same time they are displayed graphically on the screen in order to follow the course of the viscosity.
The external temperature sensor on the viscometer can be used to ensure that the sample is at the correct temperature. This allows the measurement results to be compared with other samples, as temperature affects viscosity. Thus, temperature measurement is an essential part of viscosity determination.

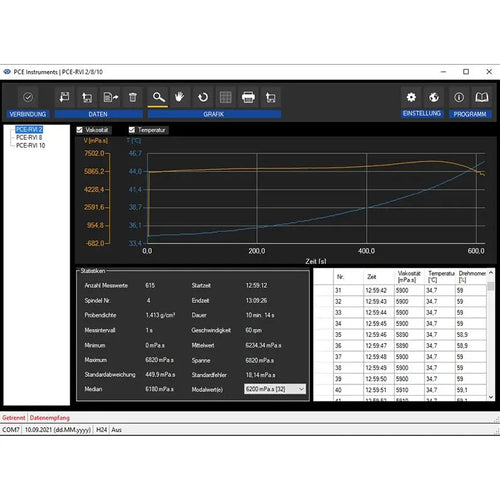

With the optional software, the viscometer can be connected to a PC. The software displays the measurement values from the viscometer live during a measurement. The individual measurement points are displayed in a table as well as graphically. Recorded measured values can be exported as a .csv file for further processing.
The 5" LCD touch screen allows easy operation of the viscometer. The measured values from the viscometer are displayed during the measurement, while at the same time they are displayed graphically on the screen in order to follow the course of the viscosity.
The external temperature sensor on the viscometer can be used to ensure that the sample is at the correct temperature. This allows the measurement results to be compared with other samples, as temperature affects viscosity. Thus, temperature measurement is an essential part of viscosity determination.
With the optional software, the viscometer can be connected to a PC. The software displays the measurement values from the viscometer live during a measurement. The individual measurement points are displayed in a table as well as graphically. Recorded measured values can be exported as a .csv file for further processing.
- Measuring range 27 ... 5250 cp
- Automatic shutdown in case of overload
- Fixed rotation speed of 200 rpm
- Optional software for live viewing
- The KU1 axis is included in the delivery
- Large touch screen for easy operation
Package contents
1 x PCE-RVI 8 Viscometer / Viscosity Meter
1 x Sample container
1 x Height Adjuster
1 x KU1 Axis
1 x Sample container
1 x Height Adjuster
1 x KU1 Axis
1 x Temperature sensor
1 x Base
1 x Touch Screen Pen
1 x Carrying case
1 x Power Adapter
1 x Instruction Manual
1 x Base
1 x Touch Screen Pen
1 x Carrying case
1 x Power Adapter
1 x Instruction Manual
