Μετρητής Σκόνης 0.3-25 μm Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
Specification
| Measuring range | 0.3 ... 25 μm |
| Measuring channel sizes | Factory calibrated at 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm |
| Counting efficiency | 50% at 0.3 μm, 100% at > 0.45 μm according to JIS |
| Flow | 2.83 l / min (0.1 ft3 / min) |
| Random loss | 5% at 4,000,000 particles / ft³ |
| Battery | >8 h |
| Light source | Long-life laser diode |
| Zero count | <1 count / 5 min (<2 particles / ft3) according to ISO 21501-4 and JIS |
| Counting modes | Automatic, manual, real-time, cumulative / |
| differential, mass concentration | |
| Alarms | 1 ... 9999999 counts, adjustable |
| Calibration | Traceable to NIST |
| Display | 4.3" WQVGA color touch display, 480x272 px |
| Printer | External thermal printer |
| Aspiration | Internal pump with automatic |
| flow control | |
| Air outlet | Internal HEPA filter |
| Battery pack | Replaceable Li-Ion battery |
| Charging time | About 4 hours |
| Reports | ISO 14644-1 |
| EU GMP Annex 1 | |
| FS 209E | |
| Configuration | Memory for 50 custom configurations |
| Standards | ISO 21501-4 and JIS B9921 |
| Dimensions | 13.3 x 10.5 x 21 cm |
| Weight | 1.8 kg |
| Storage | 45000 data sets (ring memory) consisting of |
| particle counting, temp. and humidity, places and times | |
| Sample locations | up to 1000 places can be stored |
| Sample duration | 1 s ... 99 h adjustable |
| Power supply | 110 ... 240V AC 50/60 Hz |
| Operating conditions | 5 ... 40degreesC / 41 ... 104degreesF |
| Up to 95% RH not condensing | |
| Storage conditions | 0 ... 50degreesC / 32 ... 122degreesF |
| Up to 98% RH not condensing | |
| Temp. / Humidity sensor intern | 0 ... 50degreesC (32 ... 122degreesF), 15 ... 90% rh |
| Resolution | 0.5degreesC / plus-minus 0.9degreesF |
| Accuracy | plus-minus 0.5degreesC / plus-minus 0.9degreesF, plus-minus 2% RH |
| Interface | Ethernet, USB |
| Optional interfaces | Wifi 802.11 b / g, RS485 or RS232 |
| Number of measuring channels | 6 |
Description

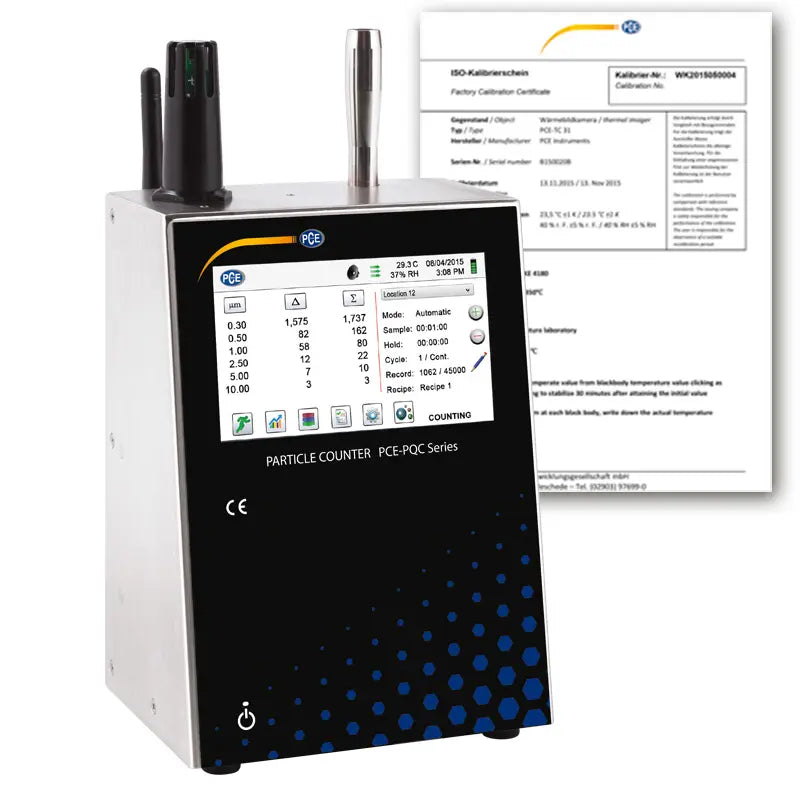

Air particle counter PCE-PQC 2xEU series incl. calibration certificate
Counting of six particle sizes / flow rate of 2.83 l / min / 4.3" color touch display / Ethernet and USB (optional Wifi) / Incl. temperature and humidity sensor
Counting of six particle sizes / flow rate of 2.83 l / min / 4.3" color touch display / Ethernet and USB (optional Wifi) / Incl. temperature and humidity sensor
The PCE-PQC 2xEU series air particle counters are portable detection systems that include particles of specific sizes in the air. Furthermore, the air temperature and the relative humidity are monitored. The fixed flow rate of 2.83 l / min complies with current standards for air particle counter ISO 21501-4 and JIS B9921. Due to the compact design, the air particle counter of the PCE-PQC 2xEU series can be used in a variety of ways. These include the monitoring and inspection of clean rooms, filter systems in operating theaters and bottling plants in the pharmaceutical industry.
The internal memory of the air particle counter is sufficiently large for up to 45000 data sets. These data sets each include the metering parameters, temperature and humidity sensor readings, locations, and timestamp. An optionally available printer enables the measurement results to be printed directly. On the other hand, the stored data records of the air particle counter can be read out and processed via the supplied software via Ethernet, USB or Wifi.
Delivery Scope
1 x Particle counter PCE-PQC 20EU
1 x Temperature and humidity sensor
1 x Isokinetic probe
1 x Cleaning filter
1 x Li-Ion rechargeable battery
1 x Software for data download
1 x USB cable
1 x Power supply / battery charger
1 x User manual
1 x Calibration certificate according to NIST
1 x Temperature and humidity sensor
1 x Isokinetic probe
1 x Cleaning filter
1 x Li-Ion rechargeable battery
1 x Software for data download
1 x USB cable
1 x Power supply / battery charger
1 x User manual
1 x Calibration certificate according to NIST
