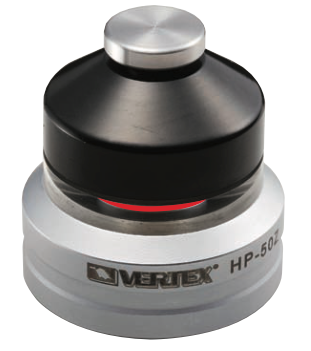

Height 50 mm and 100 mm.
With Magnetic base.
The red lamp will be lighted up when touched. Accuracy 0.005 mm.
Combined vertical and horizontal in a unit. Weight:0.7 kgs
HP-100ZM
HP-100Z
A. HP-50 / 100 / ZM / EM SERIES BUILT-IN MEGNETS FOR EASIER SETUP. VERTICAL & HORIZONTAL ! B. STANDARD HEIGHT : 50 OR 100 MM
C. WEIGHT ABOUT 0.7-1.2 KGS
D. WHEN TOUCHED, THE RED LAMP LIGHTS ON.
E. ACCURACY : WITHIN 0.005 MM
F. BATTERY TYPE : LR44 / A76 / G13 X 2 PCS
MANUAL:
1. THERE IS A MECHNISM BELOW THE TOUCH PLATE CAN BE ADJUSTED BY GAUGE BLOCK.
2. WHEN MACHINE SPEED IS HIGH, PLEASE REDUCE THE SPEED & GO UP /DOWNWARD UNTIL THE RED LIGHT IS OFF. 3. PROCEED AGAIN IN LOWER SPEED.
4. HORIZONTAL POSITION (HPXXX-XXEM/ZM SERIES-MAGNETIC FUNC.ONLY)
PLEASE USE THE TOP TIP OF THE CUTTER TO TOUCH THE TOUCH PLATE. CAN NOT USE VERNIER TO CHECK / RE-SET
| SKU | Ύψος | Τύπος | Διαθεσιμότητα |
Τιμή
+ΦΠΑ
|
Καλάθι
Προσφορά
|
|---|---|---|---|---|---|
| HP-50Z | 50 mm | Standard | Κατόπιν Παραγγελίας |
+ΦΠΑ
€174,00
|
|
| HP-50ZM | 50 mm | Μαγνητικό | Κατόπιν Παραγγελίας |
+ΦΠΑ
€194,00
|
|
| HP-100Z | 100 mm | Standard | Κατόπιν Παραγγελίας |
+ΦΠΑ
€258,00
|
|
| HP-100ZM | 100 mm | Μαγνητικό | Κατόπιν Παραγγελίας |
+ΦΠΑ
€291,00
|
