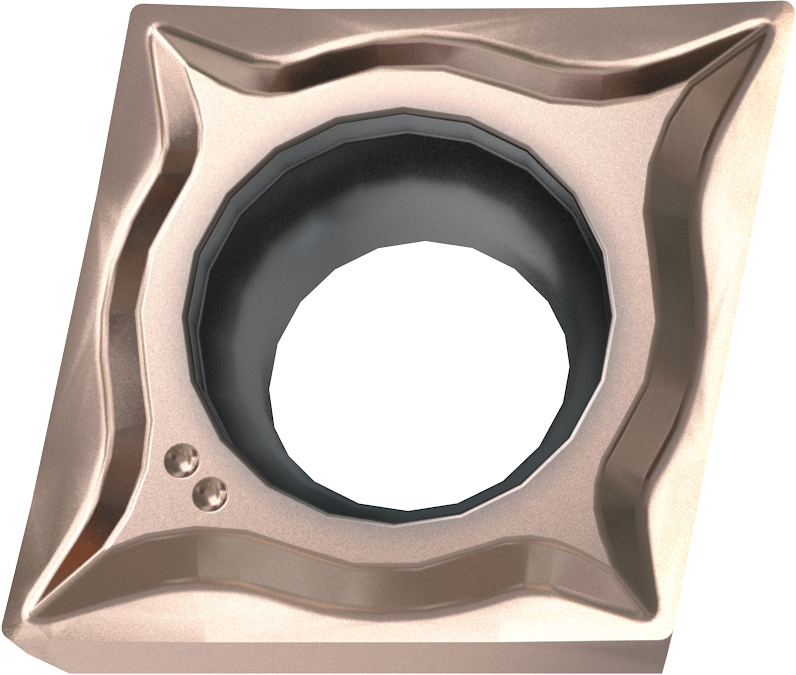

CCGT0903**-SF Inserts for Superalloys
S
CCGT0903**-SF
| Κωδικός | Cutting Depth (mm) | Radius (mm) | Grade | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| CCGT09T301-SF-YG401 | 0.10~2.5 | 0.1 | YG401 | €6,60 | 8 διαθέσιμα | ||
| CCGT09T302-SF-YG401 | 0.10~2.5 | 0.2 | YG401 | €6,60 | 5-8 εργάσιμες | ||
| CCGT09T308-SF-YG401 | 0.10~2.5 | 0.8 | YG401 | €6,60 | 5-8 εργάσιμες | ||
| CCGT09T304-SF-YG401 | 0.10~2.5 | 0.4 | YG401 | €6,60 | 5 διαθέσιμα | ||
Τιμές χωρίς ΦΠΑ 24%
Workpiece Materials
- (S) - Heat Resistant Superalloys (Fe,Ni,Co) - Titanium Alloys (HRSA, Titanium alloys)
Chipbreaker
- (SF) - Geometry specially designed for finishing machining of superalloys and titanium alloys. Features a large rake angle (rake angle) with a short length and is available with small cutting radii (RE). Suitable for small cutting depths (Ap) and low feeds (Fn). Ensures excellent surface quality.
Grade
- YG401 – For superalloys (HRSA) (S10–S20). Durable PVD TiAlSiN coating for excellent protection and lubrication.
Feed
- Fn = 0.03~0.20 mm/rev
Cutting Speed
- (S31-37) - Vc=30~90 m/min
Turning inserts from YG1, a leading cutting tool manufacturer from Korea. The choice of the appropriate insert depends on the chipbreaker, that is the geometry that helps in breaking and removing the chip, as well as the grade, which describes the microstructure and coating of the insert and directly affects hardness and fracture toughness. The cutting conditions (speed, feed, depth) must be carefully defined to achieve maximum tool performance and life.
