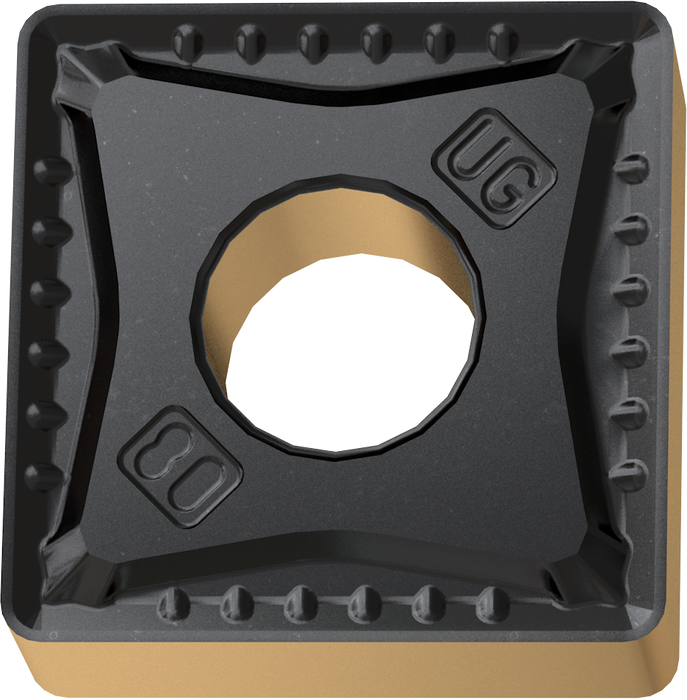

SNMG1204**-UG Inserts for Steels - Continuous Cutting
P
SNMG1204**-UG
| Κωδικός | Cutting Depth (mm) | Radius (mm) | Grade | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| SNMG120408-UG-YG3125 | 1.0~3.0 | 0.8 | YG3125 | €5,90 | 10 διαθέσιμα | ||
| SNMG120412-UG-YG3125 | 1.5~3.0 | 1.2 | YG3125 | €5,90 | 5-8 εργάσιμες | ||
| SNMG120416-UG-YG3125 | 2.0~3.0 | 1.6 | YG3125 | €5,90 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
Cutting Materials
- (P) - Steels - Alloy Steels (Steel - Alloy Steel)
Chipbreaker
- (UG) - Geometry for general machining of steels. It features a relatively large rake angle (rake angle) for smoother chip flow and a reinforced cutting edge with a flat section on the edge (T-land). Suitable for medium machining and continuous cutting. Combines toughness (toughness) and high wear resistance (wear resistance)
Grade
- YG3020 – First choice for general steel machining (P15–P30). CVD TiCN–Al₂O₃ coating. Substrate specially designed for high toughness and smooth surface for increased wear resistance.
Feed
- Fn = 0.20~0.40 mm/rev
Cutting Speed
- (P1-5) - Vc=160~380 m/min
- (P5-9) - Vc=140~320 m/min
- (P10-11) - Vc=60~130 m/min
Turning inserts from YG1, a top cutting tool manufacturer from Korea. The choice of the appropriate insert depends on the chipbreaker, that is the geometry that helps in breaking and removing the chip, as well as the grade, which describes the microstructure and coating of the insert and directly affects hardness and toughness. The cutting conditions (speed, feed, depth) must be carefully set to achieve maximum tool performance and life.
