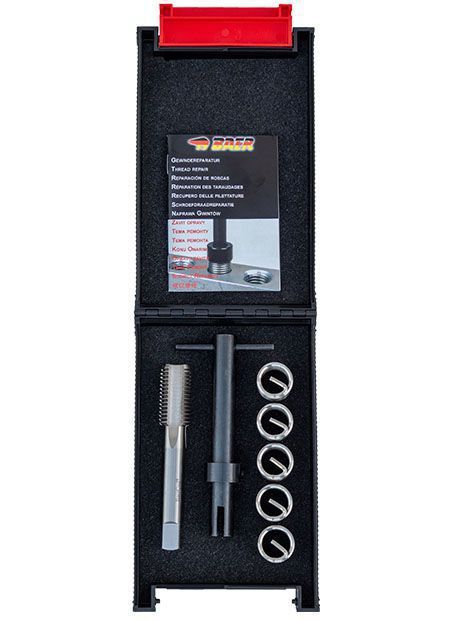

NPT Thread Repair Kit Inch American Pipe
WTI-NPT

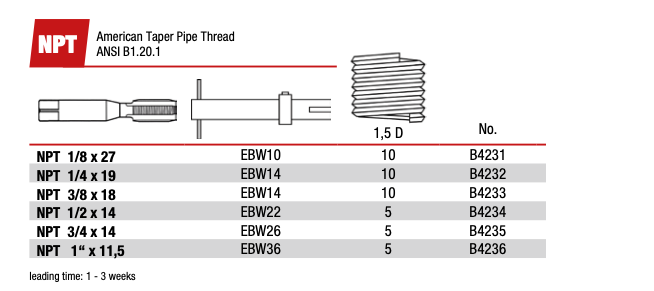

| Κωδικός | Diameter | TPI | Thread | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| WTI-NPT-1/8-27 | 1/8" | 27 | NPT | €213,00 | 5-8 εργάσιμες | ||
| WTI-NPT-1/4-19 | 1/4" | 19 | NPT | €213,00 | 5-8 εργάσιμες | ||
| WTI-NPT-3/8-18 | 3/8" | 18 | NPT | €213,00 | 5-8 εργάσιμες | ||
| WTI-NPT-1/2-14 | 1/2" | 14 | NPT | €213,00 | 5-8 εργάσιμες | ||
| WTI-NPT-3/4-14 | 3/4" | 14 | NPT | €316,00 | 5-8 εργάσιμες | ||
| WTI-NPT-1-11.5 | 1" | 11.5 | NPT | €334,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
Thread repair kits are used to fix damaged or defective threads in metals, many plastics, or composite materials.
The process of repairing threads in a damaged hole, using a V-COIL Set, involves the following steps:
- Drill out the damaged threads using a drill of the correct size.
- Then create a new thread with the tap included in the set.
- Screw the spring into the new thread in the hole, using the insertion tool, just below the surface of the component.
- Unscrew the insertion tool. The threaded insert will expand slightly as the torque is released from the insertion tool. This will cause it to lock into the component.
-
BaerCoil thread inserts can be shortened, depending on the required length, with a side cutter or similar tool.
