Technical Specifications

• Measurement range: 0.05–10mm (adjustable for coatings >10mm)

• Output voltage: 0.6–30.0kV (continuously adjustable)

• Reading: 0.1kV

• Power: ≤5W

• Power supply: Rechargeable Ni-MH 12V battery

• Dimensions: 240×135×115mm

• Weight: 2.5kg

Includes

• Main unit: 1 pc

• Probe: 1 pc

• Strip brush: 1 pc

• Flat brush: 1 pc

• Grounding cable: 1 pc

• Grounding rod: 1 pc

• Earphones: 1 pc

• AC/DC adapter: 1 pc

Description

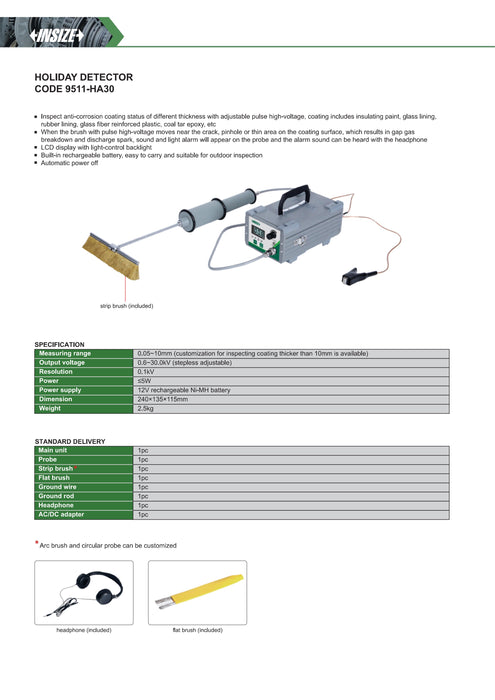

The pore detector 9511-HA30 is used for inspecting anti-corrosion coatings, detecting cracks, pores, or thin areas in materials such as insulating paints, glass coatings, rubber, and epoxy resins. It features adjustable pulsed high voltage, acoustic and visual alerts, an LCD display with backlight, and an auto power-off function. It is suitable for outdoor inspections.
