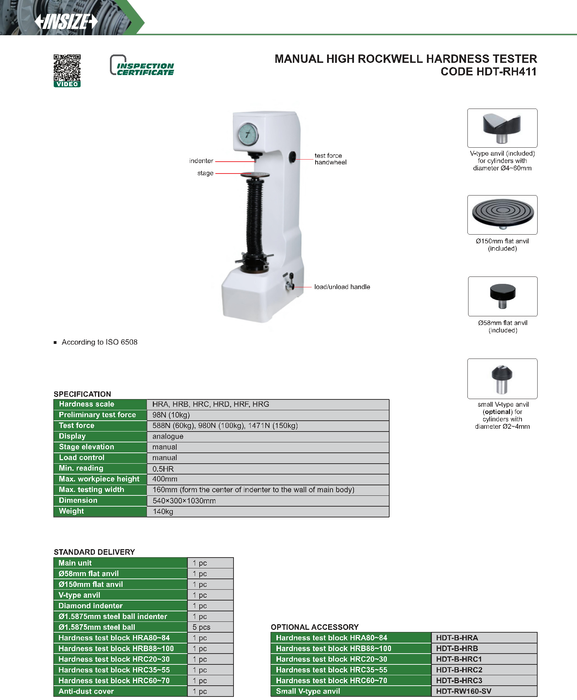

Technical Specifications

• Hardness scales: HRA, HRB, HRC, HRD, HRF, HRG

• Preliminary test force: 98N (10kg)

• Test forces: 588N (60kg), 980N (100kg), 1471N (150kg)

• Display: analog

• Table lifting: manual

• Load control: manual

• Minimum reading: 0.5HR

• Maximum specimen height: 400mm

• Maximum specimen width: 160mm (from the center of the indenter to the body wall)

• Dimensions: 540×300×1030mm

• Weight: 140kg

• Includes:

  • Main unit

  • Flat base Ø58mm

  • Flat base Ø150mm

  • V-type anvil for cylinders Ø4–Ø60mm

  • Diamond indenter

  • 1.5875mm ball indenter

  • 5 steel balls 1.5875mm

  • Hardness test block HRA80–84, HRB88–100, HRC20–30, HRC35–55, HRC60–70

  • Anti-vibration base

Description
Analog Rockwell hardness tester for measurements on six scales, with analog display and manual load control and table lifting. Suitable for specimens up to 400mm height and 160mm width, includes accessories for cylindrical and flat objects.
