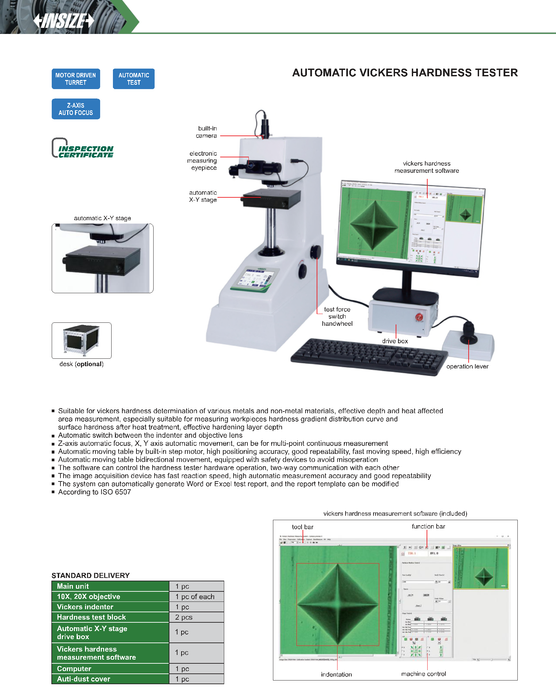

Desktop digital Vickers hardness tester - Touch screen - Computer - Autofocus Z axis
HDT-AVH
| Κωδικός | Vickers Units | Τιμή | Στοκ | ||
|---|---|---|---|---|---|
| HDT-AVH05 | HV0.3, HV0.5, HV1, HV2, HV3, HV5 | €28.490,00 | Κατόπιν Παραγγελίας | ||
| HDT-AVH10 | HV0.3, HV0.5, HV1, HV3, HV5, HV10 | €28.490,00 | Κατόπιν Παραγγελίας | ||
| HDT-AVH30 | HV1, HV3, HV5, HV10, HV20, HV30 | €28.490,00 | Κατόπιν Παραγγελίας | ||
| HDT-AVH50 | HV1, HV5, HV10, HV20, HV30, HV50 | €28.490,00 | Κατόπιν Παραγγελίας | ||

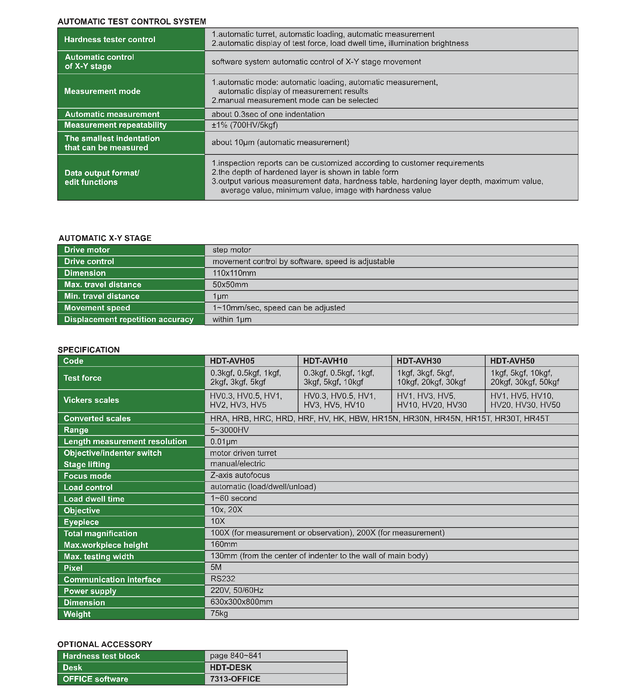

Technical Specifications
-
Suitable for Vickers hardness measurement on metals and non-metallic materials, case depth, and heat-treated surfaces
-
Measurement of hardness distribution curve and case depth
-
Automatic switching between indenter and objective lens
-
Automatic focusing of Z axis
-
Automatic movement of X, Y, and Z axes for continuous multi-point measurements
-
Built-in motor for X–Y table, high positioning accuracy and repeatability
-
Automatic two-dimensional table movement with safety systems
-
Vickers measurement software with report export to Word and Excel
-
According to ISO 6507
-
Includes:
-
Main unit
-
10X and 20X objective lenses
-
Vickers indenter
-
Hardness test block
-
Automatic X–Y table with drive unit
-
Vickers measurement software
-
Computer
-
Anti-vibration base
-
Description
Automatic Vickers hardness tester with three-axis movement, automatic focusing, and high-precision measurement software. Suitable for hardness distribution analysis and case depth measurement on heat-treated samples.
