PCE-SPM 1 - Photovoltaic (PV) Photometer
| Measurement range | 0 ... 2000 W/m² |
| Reading | 1 W/m² |
| Accuracy |
±10 W/m² or ±5 % (highest price applies) |
| Spectral range | 400 ... 1100 nm |
| Data memory | 32,000 measurements |
| Rate of measurement | adjustable |
| Data transfer | via RS-232 |
| Screen | LCD |
| Ambient temperature range | 0 ... +50 °C / 32 ... 122 °F |
| Maximum humidity | <80% RH |
| Power supply |
4 x 1.5V AAA Li-ion batteries (for about 16 days of continuous use) |
| Dimensions | 111 x 64 x 34mm / 4.3 x 2.5 x 1.3" |
| Weight | 165g / 5.8oz |
Photovoltaic photometer with built-in sensor, determines the energy efficiency of solar systems /

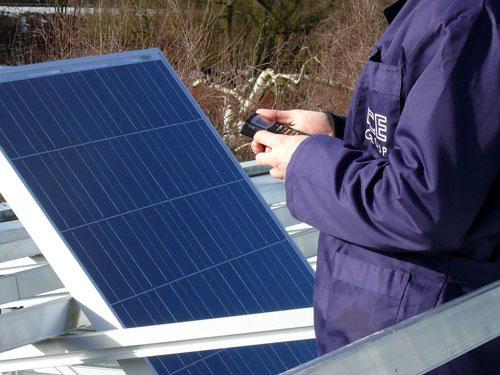

Investigating the optimal location for the installation of photovoltaic panels
The PCE-SPM 1 is a photovoltaic (PV) system photometer used to measure solar radiation, solar energy or solar power. The meter's easy-to-read 4-digit LCD displays P tot in W/m² or BTU/(ft² xh), while the device's built-in data memory stores up to 43,000 readings, data that can be further processed and analyzed on a computer via of the software available.
- Range: 0 ... 2000 W/m² or 0 ... 634 BTU/(ft² xh)
- MAX, MIN, HOLD functions
- Allows long-term measurement through internal memory (32,000)
- Powered by 4 Li-ion batteries (lifetime approx. 16 days with continuous use)
- RS-232 for data transfer to a computer
- Has Windows compatible software CD-ROM
- Ideal for installation, inspection and monitoring of solar panels as well as research and development of solar energy products
- MAX, MIN, HOLD functions
- Allows long-term measurement through internal memory (32,000)
- Powered by 4 Li-ion batteries (lifetime approx. 16 days with continuous use)
- RS-232 for data transfer to a computer
- Has Windows compatible software CD-ROM
- Ideal for installation, inspection and monitoring of solar panels as well as research and development of solar energy products
Package contents
1 x PCE-SPM 1 Photometer
1 x Internal sensor
1 x Internal data memory
1 x RS-232 cable
1 x Software
4 x Battery
1 x Carrying case
1 x User Manual
1 x Internal sensor
1 x Internal data memory
1 x RS-232 cable
1 x Software
4 x Battery
1 x Carrying case
1 x User Manual
