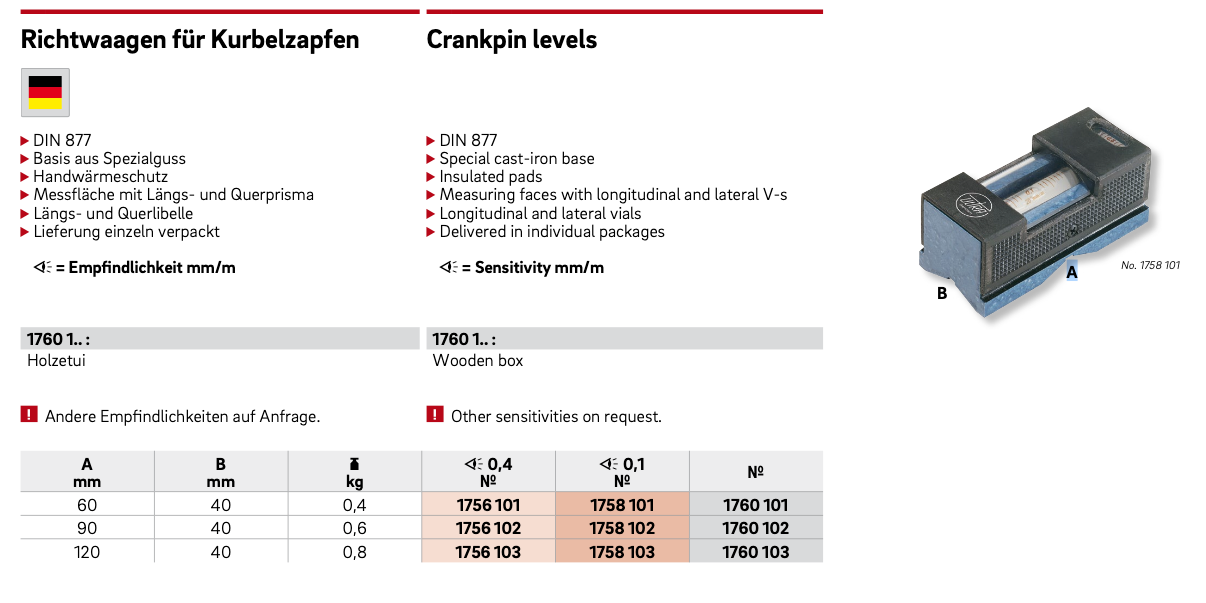

Technical Specifications
-
Manufactured according to DIN 877
-
Base made of special cast iron
-
Insulating covers for protection from hand heat
-
Measuring surfaces with longitudinal and transverse V prisms
-
Longitudinal and transverse vial
-
Delivered in individual packages
-
Available with sensitivity of 0.4 mm/m or 0.1 mm/m
-
Supplied in a wooden case
Dimensions & Weight:
-
60 x 40 mm, 0.4 kg
-
90 x 40 mm, 0.6 kg
-
120 x 40 mm, 0.8 kg
Description
Level for crankshafts, designed for precise alignment and level measurement in mechanical components using longitudinal and transverse V-prisms.
Προσφορά
| SKU | Dimensions | Sensitivity | Διαθεσιμότητα |
Τιμή
+ΦΠΑ
|
Διακρίβωση |
Καλάθι
Προσφορά
|
|---|---|---|---|---|---|---|
| 1756101 | 60x40mm | 0.4 mm / m | 1 μήνας |
+ΦΠΑ
€191,00
|
+ €50,00
5-8 εργάσιμες
|
|
| 1756102 | 90x40mm | 0.4 mm / m | 1 μήνας |
+ΦΠΑ
€209,00
|
+ €50,00
5-8 εργάσιμες
|
|
| 1756103 | 120x40mm | 0.4 mm / m | 1 μήνας |
+ΦΠΑ
€219,00
|
+ €50,00
5-8 εργάσιμες
|
