Metal Hardness Testers

Availability & price

3 codes

Code Probe Availability excl. VATincl. VAT Certificate Cart
PCE-3500 50N
€4.065,00
€5.040,60
0
PCE-3500-10 10N Upon Request
€4.065,00
€5.040,60
0
PCE-3500-98 98N Upon Request
€4.065,00
€5.040,60
0

= Express from Europe: at our premises in 1-2 working days, from €35 + VAT Express from Europe, from €35 + VAT

Express from Europe

At our premises in 1-2 working days if you place the order by 13:00
Cost depending on weight from €35 + VAT

If it takes more than 2 working days, we refund the cost.

Contact us

Mon–Fri 08:30–18:00

Description

  • Non-destructive UCI hardness testing
  • HV, HRC, HRB, HB and MPa scales
  • 136 ° Vickers diamond

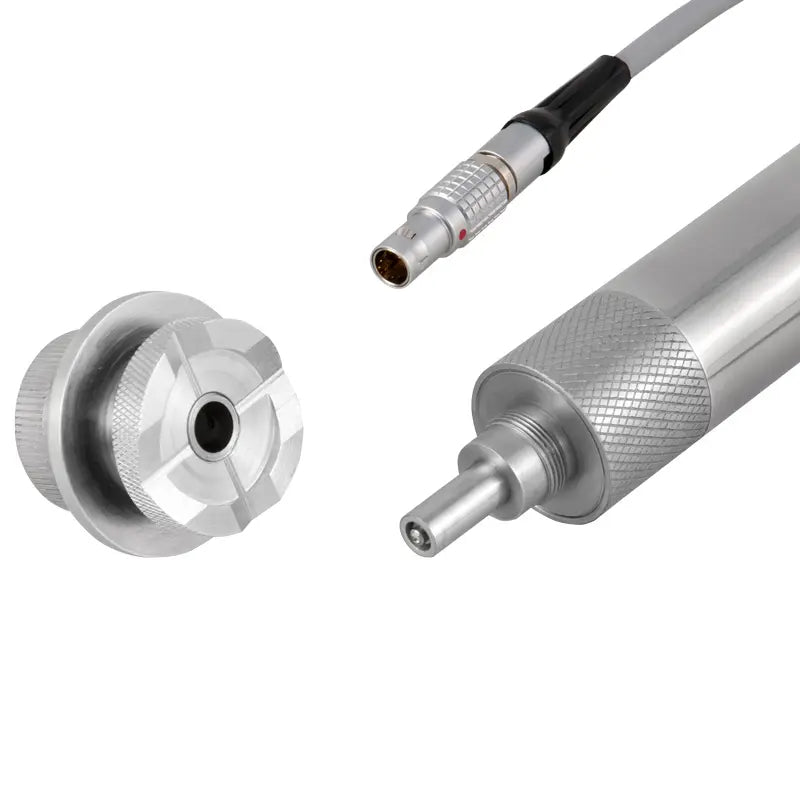

  • Interchangeable 10 N / 50 N / 98 N probes
  • Large colour LC display
  • PC software included

The PCE-3500 is a UCI (Ultrasonic Contact Impedance) hardness tester for non-destructive hardness measurement of metal components. A Vickers diamond on the probe vibrates at its resonant frequency. When pressed onto the surface, the frequency drops depending on the hardness and the material's elastic modulus. The device calculates hardness from this frequency shift using the material's characteristic curve. The indentation is microscopic and normally not visible.

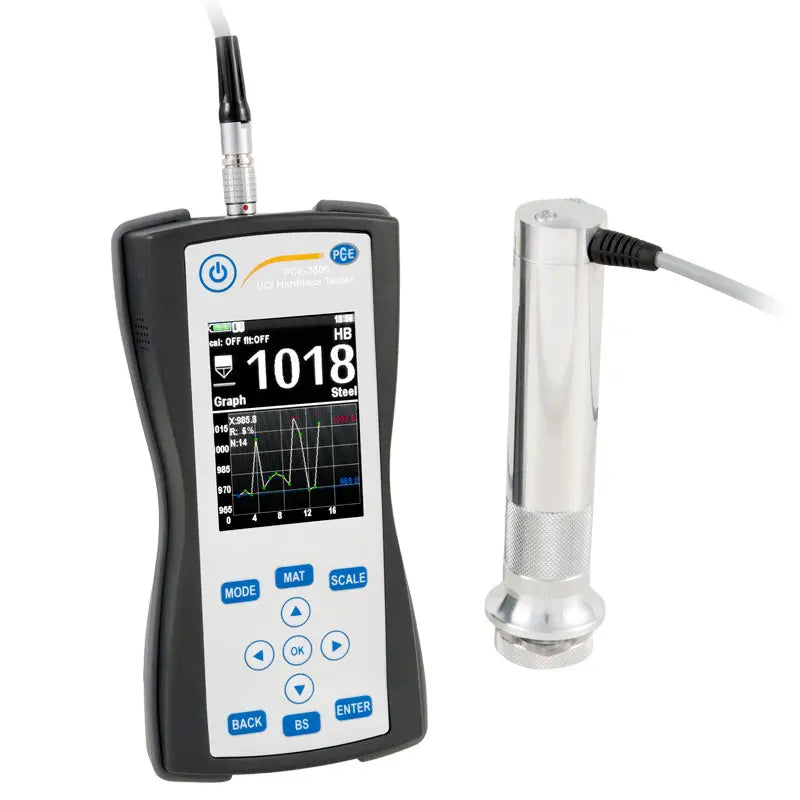

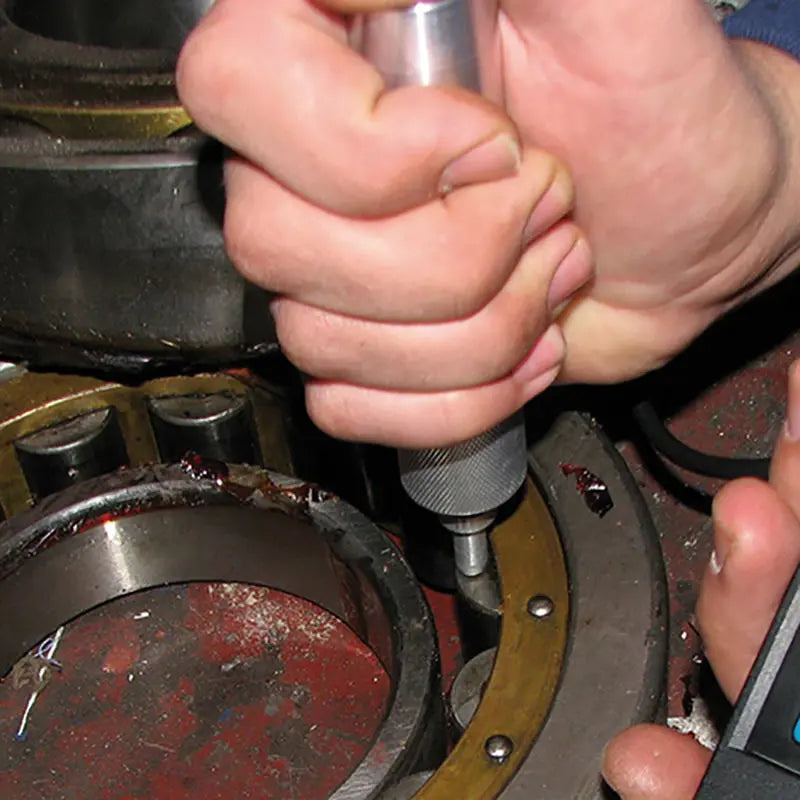

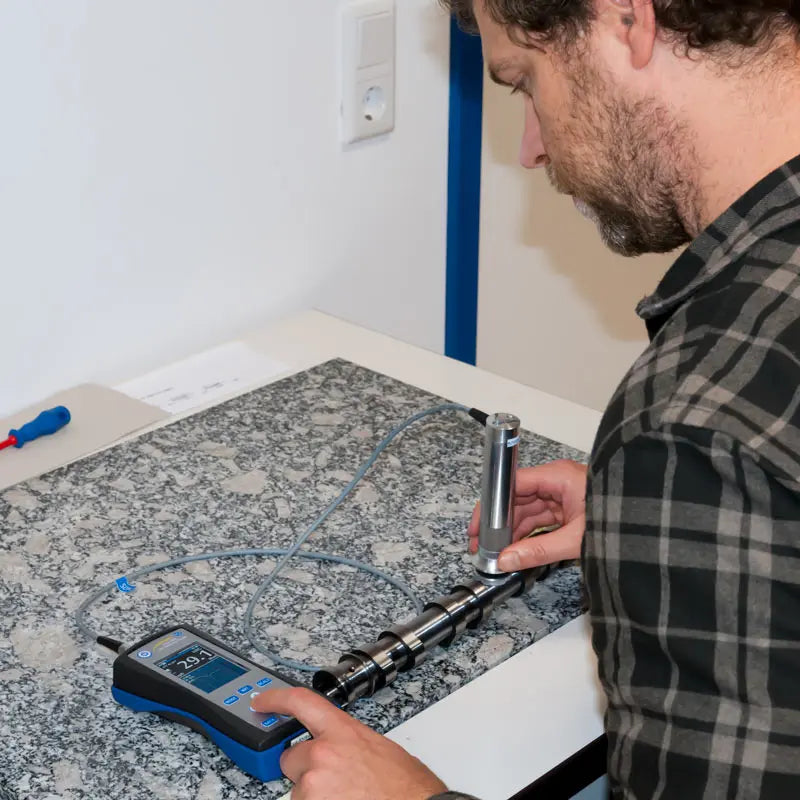

Its low penetration depth suits surface-hardened parts, e.g. nitrided or induction-hardened. Typical uses: punching tools, presses, thin-walled parts, gear wheels, turbine blades, camshafts and weld seams. It shows statistics and a bar chart. Readings are stored and evaluated with the software.

Highlights

  • 360 ° measuring direction
  • Data storage on 2 GB SD card
  • Pre-calibrated material curves
  • Statistics: MIN, MAX, average, standard deviation
  • To ASTM A1038
  • IP54 protection
  • Mini-USB interface

Specifications

Hardness
Measuring range (HV)230 ... 940 HV
Resolution (HV)1 HV
Accuracy (Vickers)±15 HV
Measuring range (HRC)20 ... 70 HRC
Resolution (HRC)0,1 HRC
Accuracy (Rockwell C)±2 HRC
Measuring range (HB)90 ... 650 HB
Resolution (HB)1 HB
Accuracy (Brinell)±10 HB
Tensile strength370 ... 1740 MPa
General technical data
Hardness scalesHRC, HB, HV, HRB, MPa
Measuring principleUltrasonic contact impedance method
Standard(s)ASTM A1038
Measuring functionsSingle measurement, MIN, MAX, average value, number of measurements, standard deviation, coefficient of variation, bar chart, smart mode (filters outliers)
Measuring angle360 °
Minimum material thickness1 mm (UCI probe only)
MaterialsSteel, Cast iron, Stainless steel, Aluminium, Bronze
Display typeLCD graphic display with backlight
Display size2,8 Inch
Storage mediumSD card
Storage capacity2 GB
InterfaceSD card, Mini-USB
Menu languageEnglish, Russian
Battery3 x 1,5V AA rechargeable batteries (NiCd or NiMH)
Battery capacity2600 mAh
Operating timeapprox. 10 hours (NiMH), approx. 6 hours (NiCd)
Automatic power-off1 ... 30 min.
Power supply (charger)Primary: 100 ... 240V AC | 50/60 Hz, Secondary: 5V DC / 2 A
Charger connector typeDevice-europlug
Protection class (device)IP54
Operating conditions-20 ... 40 °C, 30 ... 80 % RH
Storage conditions-20 ... 40 °C, 30 ... 80 % RH
Dimensions of the information processing unit (L x W x H)160 x 75 x 30 mm
Weight of the information processing unit0,25 kg

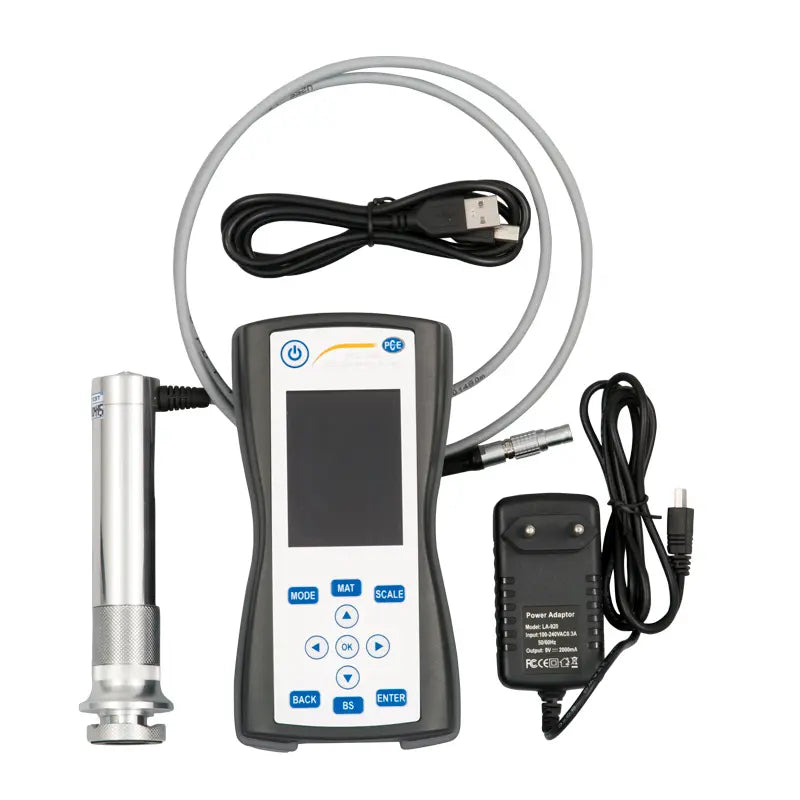

Package Contents

  • 1×UCI hardness tester

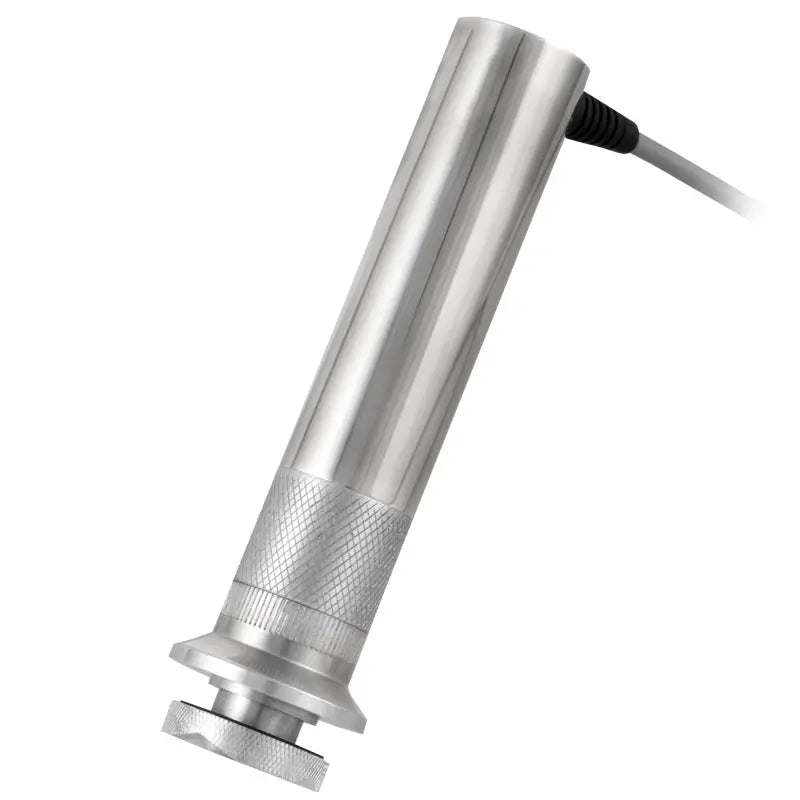

  • 1×UCI probe
  • 1×2 GB SD card
  • 1×USB cable
  • 1×PC software
  • 1×Instruction manual
