Hardness measurement range by material |
|
|
Steel iron |
HRC: 19.8 ... 68.5 HRB: 59.6 ... 99.6 HRA: 59.1 ... 85.8 HB: 80 ... 651 HV: 83 ... 976 HS: 32.2 ... 115 |
| Forged steel |
HB: 143 ... 650 |
| Cold rolled steel |
HRC: 20.4 ... 67.1 HV: 80 ... 898 |
| Stainless steel |
HRB: 45.5 ... 101.7 HB: 85 ... 655 HV: 85 ... 802 |
| Cast iron |
HB: 93 ... 334 |
|
Ductile iron |
HB: 131 ... 387 |
| Aluminum alloy |
HRB: 23.8 ... 84.6 HB: 19 ... 164 |
| Brass |
HRB: 13.5 ... 95.3 HB: 40 ... 173 |
| Bronze |
HB: 60 ... 290 |
| Forged copper alloy |
HB: 45 ... 315 |
|
General Features |
|
| Accuracy |
± 6 HL at 730 ... 790 HL ± 10 HL at 490 ... 570 HL |
| Repeatability |
6 HL at 730 ... 790 HL 10 HL at 490 ... 570 HL |
| Total measurement range |
170 ... 960 HL |
| Units |
HL (HLD): Leeb (Type D impact device) HB: Brinell HRC: Rockwell C HRB: Rockwell B HRA: Rockwell A HV: Vickers HS: Shore |
| Impact device |
Type D |
| Direction measurement |
360° |

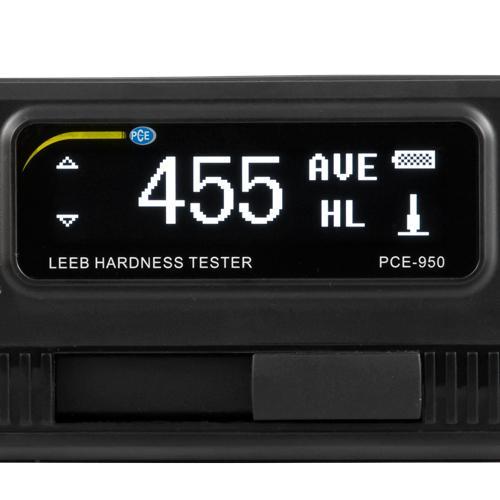

| Display |
128 x 32 OLED |
| Memory |
Internal memory stores up to 600 readings |
| Power supply |
Built-in rechargeable Li-ion battery |
| Battery life |
Approximately 50 hours |

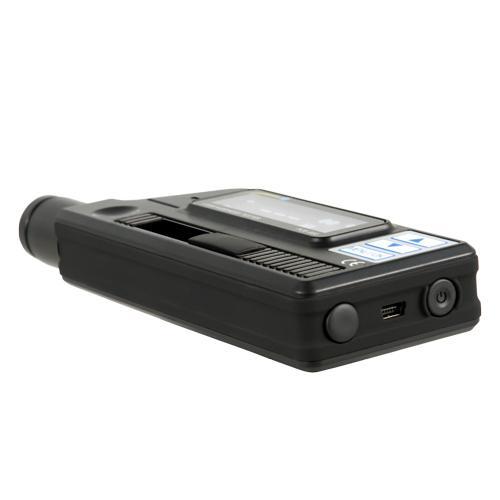

| Output |
Mini USB |
| Dimensions |
Approximately 153 x 54 x 24 mm / 6.02 x 2.13 x 0.95 in |
| Weight | Approximately 250 g / < 1 lbs |

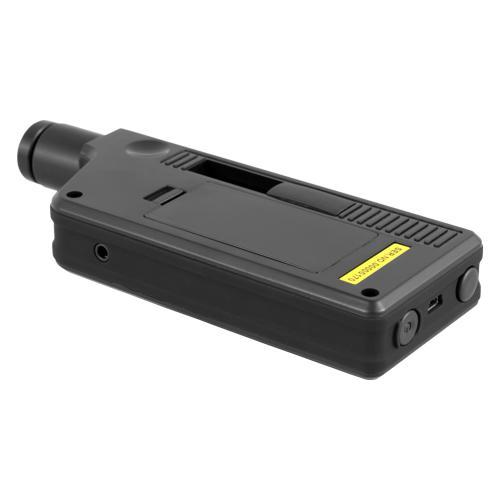

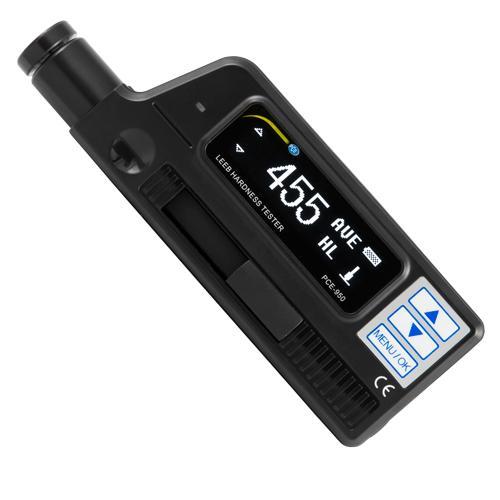

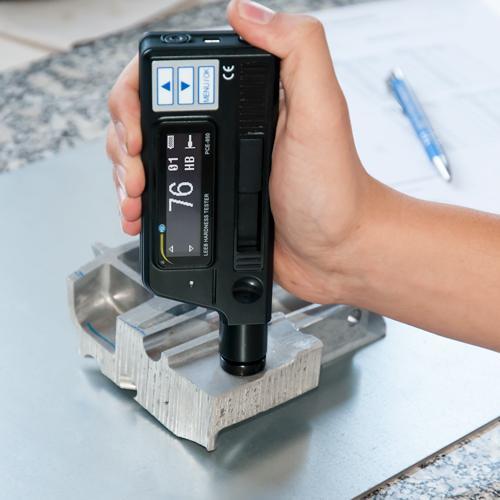

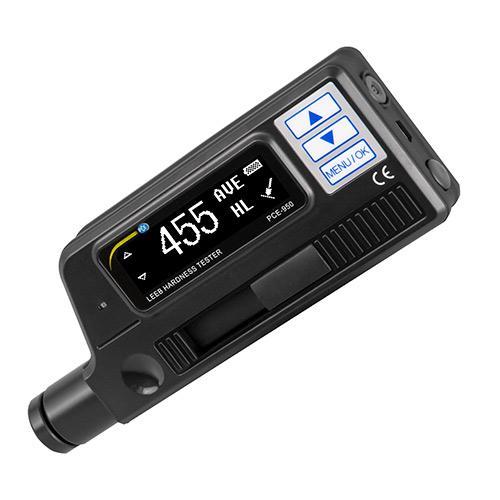

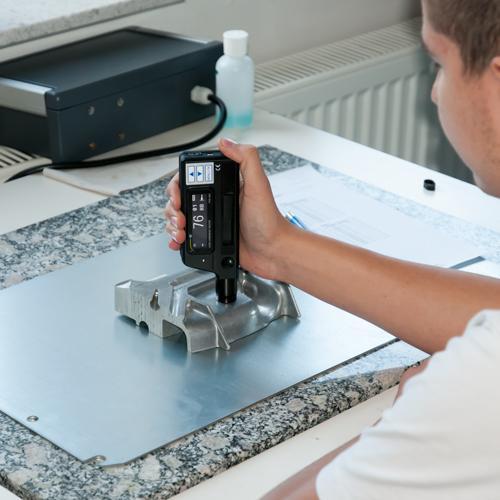

The PCE-950 is a portable hardness tester used to determine the hardness of 10 different types of metal (e.g., cast iron, forged steel, cold-rolled steel, stainless steel, cast iron, malleable iron, aluminum alloy, brass, forged copper alloy) according to the Leeb rebound method. In addition to Leeb hardness units (HL), the metal hardness tester displays hardness measurements in Rockwell C, Rockwell B, Rockwell A, Brinell, Vickers, and Shore units. In this dynamic hardness testing method, a small carbide ball strikes the test surface. The ratio of rebound to impact velocity is directly related to the material's hardness and can be converted into different hardness scales, as mentioned above. Thanks to the ergonomic small size design of the instrument and the integrated impact device, hardness tests can be performed quickly and easily. An internal memory allows storage of up to 600 measurements, and thanks to the included software, further processing of the results on a computer via USB is possible. The PCE-950 is ideal for internal and external inspection of metal parts, as it can serve as a key tool for engineers in quality control.
- Hardness units: HL, HRC, HRB, HRA, HB, HV, HS
- Measures all common hardness parameters
- Accuracy: ± 6 HL at HL = 790

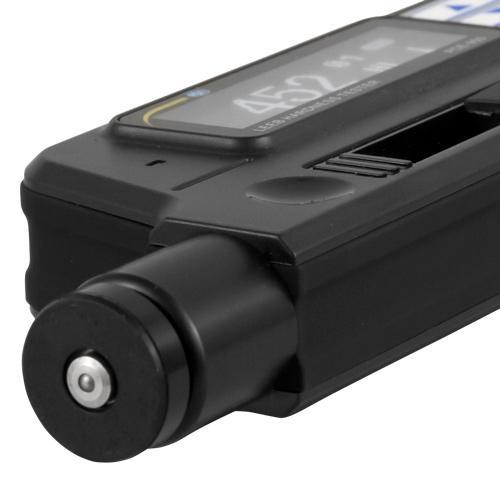

- Impact sensor: Type D (built-in), small carbide ball
- Integrated impact device = no cable for sensor
- Maximum hardness measurement: 976 HV
- Data memory: 600 measurements
- PC-compatible software provided
- Rechargeable battery with charger
- Automatic shutdown and alarm function
- For use on forged steel, cold-rolled steel, stainless steel, cast iron, malleable iron, aluminum alloy, brass, copper, and forged copper alloy metals

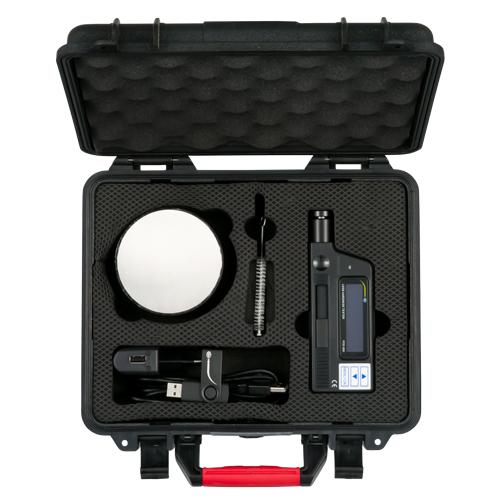

Package contents
1 x Portable hardness measuring device PCE-950 with built-in rechargeable battery

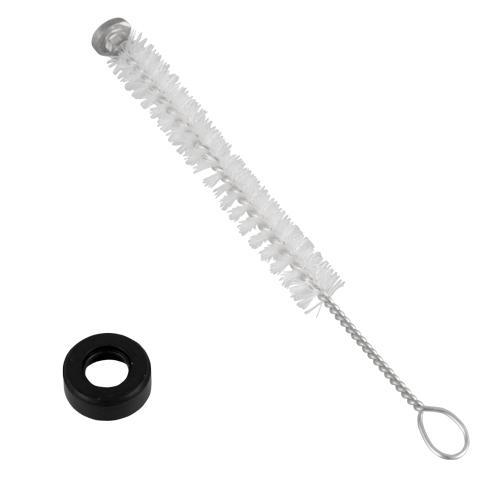

1 x Brush
1 x USB cable
1 x USB stick with PC-compatible software
1 x Battery charger / AC power supply
1 x User manual
1 x Carrying case
