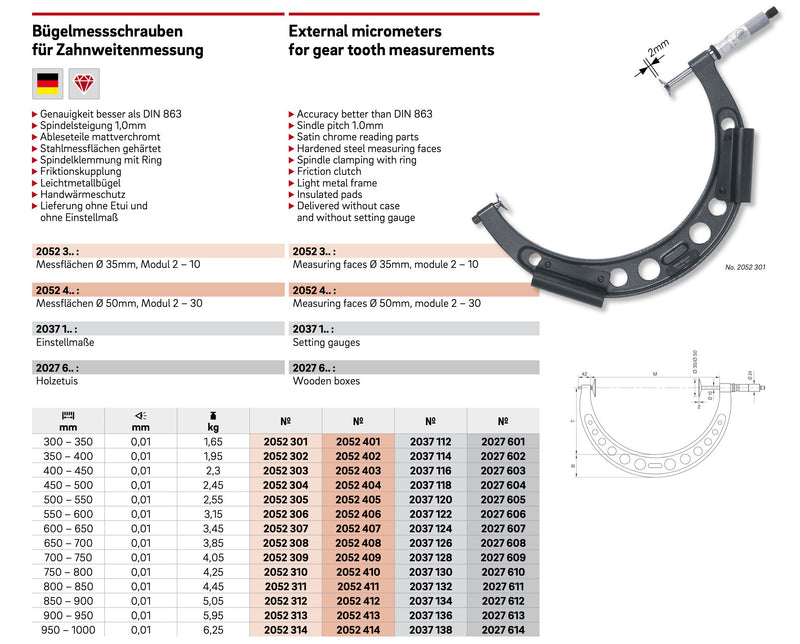

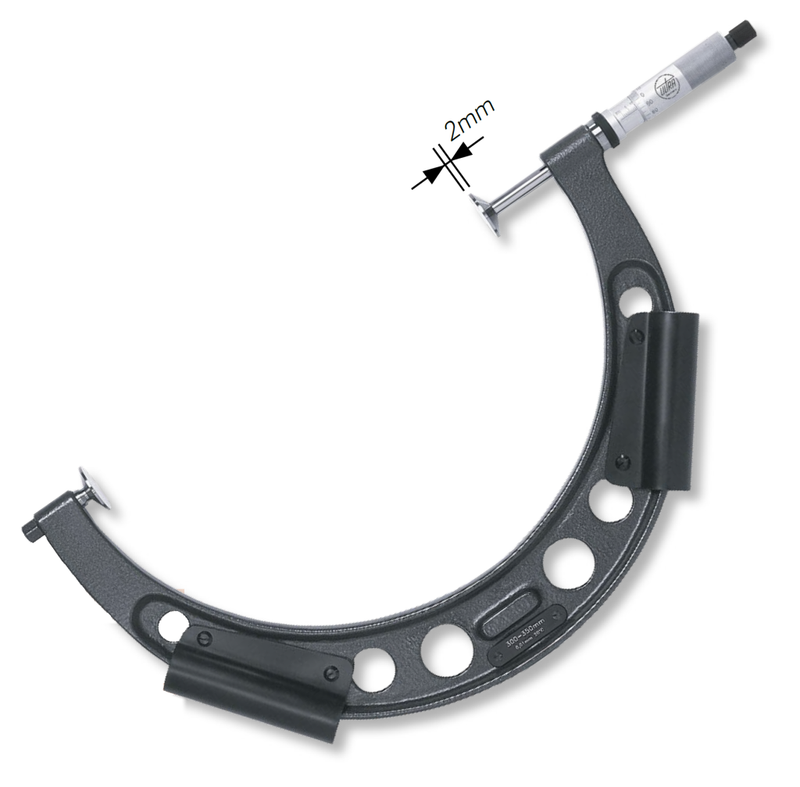

Large capacity external micrometer, designed specifically for gear tooth measurements (W dimension measurement). Constructed with a light alloy frame and hardened steel measuring feet, the instrument covers a measuring range from 300mm to 1000mm, supporting different modules depending on the diameter of the measuring surfaces.
Technical Specifications
-
Application: External measurement of gear teeth.
-
Measurement Range: 300 mm – 1000 mm (depending on model).
-
Reading: 0.01 mm.
-
Accuracy: Better than DIN 863.
-
Spindle Pitch: 1.0 mm.
-
Measuring Feet: Hardened steel.
-
Ø 35mm for Modules 2 – 10.
-
Ø 50mm for Module 2 – 30.
-
-
Construction: Lightweight metal frame with insulated handles for heat protection.
-
Reading Parts: Satin chrome.
-
Features: Spindle lock with ring, friction ratchet.
-
Delivery: Delivered without case and without adjustment template.
1 Year Warranty
Factory ULTRA Präzision
The ULTRA Präzision Messzeuge GmbH, headquartered in Glattbach, Germany, has been operating since 1888 and is one of the most historic companies in the field of precision instruments. The ULTRA Präzision offers a complete range of “Made in Germany” products, including gauges, dimensional standards, micrometers, calipers, and surface plates, as well as special inspection tools and molds manufactured according to customer drawings. Its solutions cover demanding applications in machining, automotive industry, aerospace, toolmaking, and laboratory metrology. With more than a century of experience and a consistent commitment to quality and technological development, ULTRA Präzision is a reference point in the manufacture of high-precision measuring instruments and standards.
Official Representation
Our company, TRIANTAFYLLOU K SIA E.E. is an official representative of ULTRA in Greece since 2014 and we can support the entire range of its catalog, which includes more than 10,000 different product codes and many options for custom products.
| SKU | Module | Range (mm) | Reading | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| 2052301 | module 2-10, pitch 1.0mm | 300-350 | 0.01 mm | 1 month |
+VAT
€1.540,00
|
5-8 business days
|
|
| 2052302 | module 2-10, pitch 1.0mm | 350-400 | 0.01 mm | 1 month |
+VAT
€1.606,00
|
5-8 business days
|
|
| 2052303 | module 2-10, pitch 1.0mm | 400-450 | 0.01 mm | 1 month |
+VAT
€1.671,00
|
5-8 business days
|
|
| 2052304 | module 2-10, pitch 1.0mm | 450-500 | 0.01 mm | 1 month |
+VAT
€1.750,00
|
5-8 business days
|
|
| 2052305 | module 2-10, pitch 1.0mm | 500-550 | 0.01 mm | 1 month |
+VAT
€1.842,00
|
5-8 business days
|
|
| 2052306 | module 2-10, pitch 1.0mm | 550-600 | 0.01 mm | 1 month |
+VAT
€1.828,00
|
5-8 business days
|
|
| 2052307 | module 2-10, pitch 1.0mm | 600-650 | 0.01 mm | 1 month |
+VAT
€1.908,00
|
5-8 business days
|
|
| 2052308 | module 2-10, pitch 1.0mm | 650-700 | 0.01 mm | 1 month |
+VAT
€1.992,00
|
5-8 business days
|
|
| 2052309 | module 2-10, pitch 1.0mm | 700-750 | 0.01 mm | 1 month |
+VAT
€2.076,00
|
5-8 business days
|
|
| 2052310 | module 2-10, pitch 1.0mm | 750-800 | 0.01 mm | 1 month |
+VAT
€2.155,00
|
5-8 business days
|
|
| 2052311 | module 2-10, pitch 1.0mm | 800-850 | 0.01 mm | 1 month |
+VAT
€2.237,00
|
5-8 business days
|
|
| 2052312 | module 2-10, pitch 1.0mm | 850-900 | 0.01 mm | 1 month |
+VAT
€2.322,00
|
5-8 business days
|
|
| 2052313 | module 2-10, pitch 1.0mm | 900-950 | 0.01 mm | 1 month |
+VAT
€2.426,00
|
5-8 business days
|
|
| 2052314 | module 2-10, pitch 1.0mm | 950-1000 | 0.01 mm | 1 month |
+VAT
€2.528,00
|
5-8 business days
|
|
| 2052401 | module 2-30, pitch 1.0mm | 300-350 | 0.01 mm | 1 month |
+VAT
€1.870,00
|
5-8 business days
|
|
| 2052402 | module 2-30, pitch 1.0mm | 350-400 | 0.01 mm | 1 month |
+VAT
€1.833,00
|
5-8 business days
|
|
| 2052403 | module 2-30, pitch 1.0mm | 400-450 | 0.01 mm | 1 month |
+VAT
€1.894,00
|
5-8 business days
|
|
| 2052404 | module 2-30, pitch 1.0mm | 450-500 | 0.01 mm | 1 month |
+VAT
€1.969,00
|
5-8 business days
|
|
| 2052405 | module 2-30, pitch 1.0mm | 500-550 | 0.01 mm | 1 month |
+VAT
€2.054,00
|
5-8 business days
|
|
| 2052406 | module 2-30, pitch 1.0mm | 550-600 | 0.01 mm | 1 month |
+VAT
€2.136,00
|
5-8 business days
|
|
| 2052407 | module 2-30, pitch 1.0mm | 600-650 | 0.01 mm | 1 month |
+VAT
€2.219,00
|
5-8 business days
|
|
| 2052408 | module 2-30, pitch 1.0mm | 650-700 | 0.01 mm | 1 month |
+VAT
€2.303,00
|
5-8 business days
|
|
| 2052409 | module 2-30, pitch 1.0mm | 700-750 | 0.01 mm | 1 month |
+VAT
€2.385,00
|
5-8 business days
|
|
| 2052410 | module 2-30, pitch 1.0mm | 750-800 | 0.01 mm | 1 month |
+VAT
€2.467,00
|
5-8 business days
|
|
| 2052411 | module 2-30, pitch 1.0mm | 800-850 | 0.01 mm | 1 month |
+VAT
€2.547,00
|
5-8 business days
|
|
| 2052412 | module 2-30, pitch 1.0mm | 850-900 | 0.01 mm | 1 month |
+VAT
€2.633,00
|
5-8 business days
|
|
| 2052413 | module 2-30, pitch 1.0mm | 900-950 | 0.01 mm | 1 month |
+VAT
€2.737,00
|
5-8 business days
|
|
| 2052414 | module 2-30, pitch 1.0mm | 950-1000 | 0.01 mm | 1 month |
+VAT
€2.835,00
|
5-8 business days
|
