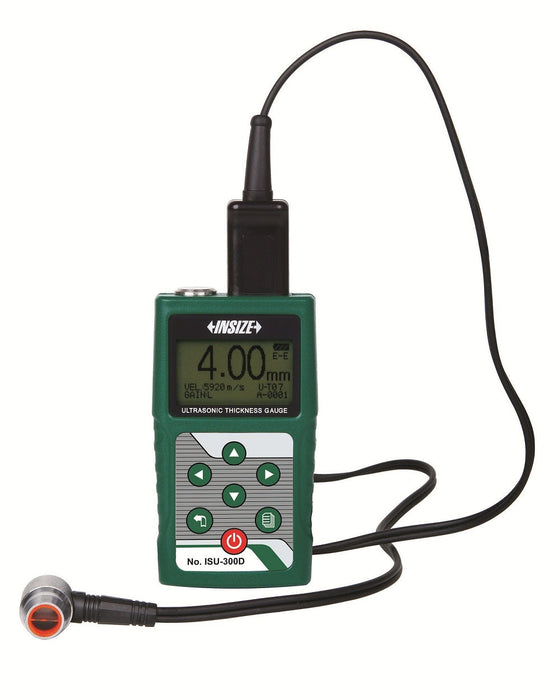

Ultrasonic Caliper - Through Coating (Ignores Paint) - Accepts Extra Sensors
| Κωδικός | Range | Reading | Min Ø | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| ISU-300D | 1.5-200 mm | 0.01 mm | Ø20mm x 1.2mm | €2.103,00 | 1 διαθέσιμo | ||
Τιμές χωρίς ΦΠΑ 24%
- Measurement range: E-E mode: coating thickness 0~1mm, substrate thickness 4~25mm
- T-E mode substrate thickness 1.5 ~ 200mm
- Reading: 0.01mm (range<100mm), 0.1mm (range≥100mm)
- Repeatability: 0.03mm (range<100mm), 0.1mm (range≥100mm)
- Velocity: 1000~9999m/s
- Accuracy:
- ±0.04 mm (range<10mm)
- ±(0.04+H/1000)mm (range 10~100mm)
- ±H/333mm (range>100 mm), where H is the thickness to be measured in mm
- Two measurement types: Echo-Echo (E-E) and Transmit-Echo (T-E):
- E-E applies to surfaces with non-metallic coating (such as paint, plastic resin, etc.) on a metal substrate, it can penetrate the coating and measure the thickness of the substrate
- T-E is the measurement of material thickness without coating, such as metal, plastic, glass, nylon, resin, ceramics, rubber, ice, etc.
- Upper and lower alarm limit
- Average calculation of 9 measurements (maximum)
- Memory: max. 500 measurements
- Power supply: 2 x 1.5V AAA batteries
- Dimensions: 64 x 116 x 27 mm
- Weight: 220 g
