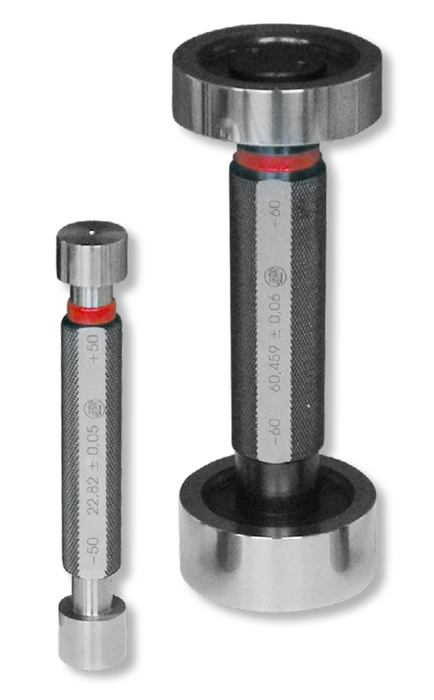

10813 Go & NoGo Hole Gauges EXPRESS DELIVERY - Custom Sizes - Custom Tolerance

Go & NoGo Hole Gauges EXPRESS DELIVERY - Custom Sizes - Custom Tolerance
Quote
SKU Diameter (mm) Type Availability
Price
+VAT
Certificate
Cart
Quote
1081301ex Ø 2,001-3,000/0.001mm (Go + NoGo) 1 month
+VAT
€85,00
1 month
1081302ex Ø 3,001-6,000/0.001mm (Go + NoGo) 1 month
+VAT
€84,00
1 month
1081303ex Ø 6,001-10,000/0.001mm (Go + NoGo) 1 month
+VAT
€83,00
1 month
1081304ex Ø 10,001-14,000/0.001mm (Go + NoGo) 1 month
+VAT
€86,00
1 month
1081305ex Ø 14,001-18,000/0.001mm (Go + NoGo) 1 month
+VAT
€94,00
1 month
1081306ex Ø 18,001-24,000/0.001mm (Go + NoGo) 1 month
+VAT
€107,00
1 month
1081307ex Ø 24,001-30,000/0.001mm (Go + NoGo) 1 month
+VAT
€116,00
1 month
1081308ex Ø 30,001-35,000/0.001mm (Go + NoGo) 1 month
+VAT
€145,00
1 month
1081309ex Ø 35,001-40,000/0.001mm (Go + NoGo) 1 month
+VAT
€152,00
1 month
1081310ex Ø 40,001-44,000/0.001mm (Go + NoGo) 1 month
+VAT
€213,00
1 month
1081311ex Ø 44,001-50,000/0.001mm (Go + NoGo) 1 month
+VAT
€241,00
1 month
1081312ex Ø 50,001-60,000/0.001mm (Go + NoGo) 1 month
+VAT
€283,00
1 month
1081313ex Ø 60,001-68,000/0.001mm (Go + NoGo) 1 month
+VAT
€380,00
1 month
1081314ex Ø 68,001-70,000/0.001mm (Go + NoGo) 1 month
+VAT
€386,00
1 month
1081315ex Ø 70,001-76,000/0.001mm (Go + NoGo) 1 month
+VAT
€433,00
1 month
1081316ex Ø 76,001-87,000/0.001mm (Go + NoGo) 1 month
+VAT
€465,00
1 month
1081317ex Ø 87,001-90,000/0.001mm (Go + NoGo) 1 month
+VAT
€474,00
1 month
1081318ex Ø 90,001-100,000/0.001mm (Go + NoGo) 1 month
+VAT
€489,00
1 month
1081319ex Ø 100,001-105,000/0.001mm (Go + NoGo) 1 month
+VAT
€654,00
1 month
1081320ex Ø 105,001-110,000/0.001mm (Go + NoGo) 1 month
+VAT
€667,00
1 month
1081321ex Ø 110,001-115,000/0.001mm (Go + NoGo) 1 month
+VAT
€677,00
1 month
1081322ex Ø 115,001-120,000/0.001mm (Go + NoGo) 1 month
+VAT
€701,00
1 month
Tolerances & Fits
Wiki

Tolerances & Fits

The tolerances and fits form the foundation of component interchangeability in modern industry. The tolerance defines the permissible limit of deviation from the nominal dimension, while the fit defines the relationship between two components (hole and shaft) that are to be joined, ensuring the correct operation of the mechanism.

  • Types of Fits: They are classified as clearance (clearance), transition (transition) and interference (interference), depending on the intended clearance or interference.
  • Standards: They follow the international ISO system, using letters for the tolerance position (uppercase for holes, lowercase for shafts) and numbers for the quality (IT Grade).
  • Importance: Correct selection ensures reduced production cost, accuracy in assembly, and the long service life of mechanical assemblies.
