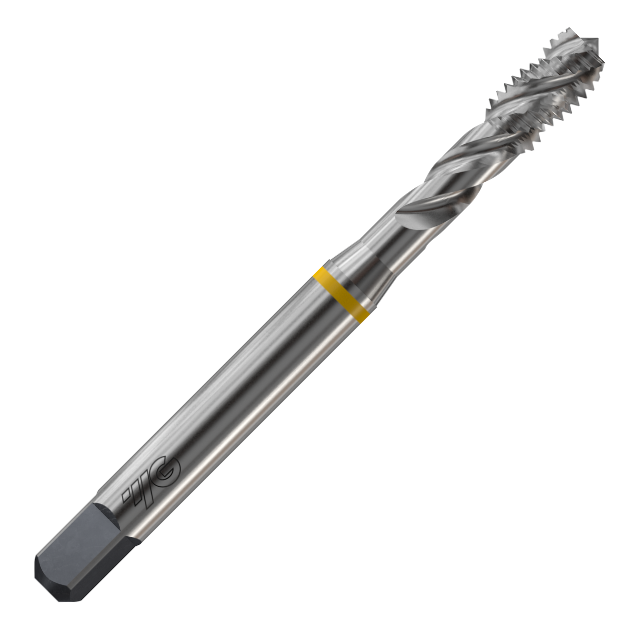

Machine Tap M-Metric - Blind Holes
YG-TM-SP
| Κωδικός | Thread | ØD2 (mm) | Ød1 (mm) | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| YG-TM-SP-M2 | M2 x 0.4 | 2.8 | 1.6 | €12,50 | 5-8 εργάσιμες | ||
| YG-TM-SP-M2.2 | M2.2 x 0.45 | 2.8 | 1.75 | €13,90 | 5-8 εργάσιμες | ||
| YG-TM-SP-M2.3 | M2.3 x 0.4 | 2.8 | 1.9 | €15,60 | 5-8 εργάσιμες | ||
| YG-TM-SP-M2.5 | M2.5 x 0.45 | 2.8 | 2.05 | €10,30 | 1 διαθέσιμo | ||
| YG-TM-SP-M2.6 | M2.6 x 0.45 | 2.8 | - | €9,90 | 1 διαθέσιμo | ||
| YG-TM-SP-M3 | M3 x 0.5 | 3.5 | 2.5 | €8,20 | 1 διαθέσιμo | ||
| YG-TM-SP-M3.5 | M3.5 x 0.6 | 4 | 2.9 | €9,30 | 1 διαθέσιμo | ||
| YG-TM-SP-M4 | M4 x 0.7 | 4.5 | 3.3 | €8,20 | 1 διαθέσιμo | ||
| YG-TM-SP-M4.5 | M4.5 x 0.75 | 4.5 | - | €8,50 | Κατόπιν Παραγγελίας | ||
| YG-TM-SP-M5 | M5 x 0.8 | 6 | 4.2 | €8,50 | 1 διαθέσιμo | ||
| YG-TM-SP-M6 | M6 x 1.0 | 6 | 5 | €8,50 | 1 διαθέσιμo | ||
| YG-TM-SP-M7 | M7 x 1.0 | 7 | 6 | €11,10 | 5-8 εργάσιμες | ||
| YG-TM-SP-M8 | M8 x 1.25 | 8 | 6.8 | €11,10 | 2 διαθέσιμα | ||
| YG-TM-SP-M9 | M9 x 1.25 | 9 | 7.8 | €13,30 | 5-8 εργάσιμες | ||
| YG-TM-SP-M10 | M10 x 1.5 | 10 | 8.5 | €13,30 | 2 διαθέσιμα | ||
| YG-TM-SP-M11 | M11 x 1.5 | 8 | 9.5 | €17,80 | 5-8 εργάσιμες | ||
| YG-TM-SP-M12 | M12 x 1.75 | 9 | 10.2 | €17,80 | 1 διαθέσιμo | ||
| YG-TM-SP-M14 | M14 x 2.0 | 11 | 12 | €21,70 | 1 διαθέσιμo | ||
| YG-TM-SP-M16 | M16 x 2.0 | 12 | 14 | €27,20 | 1 διαθέσιμo | ||
| YG-TM-SP-M18 | M18 x 2.5 | 14 | 15.5 | €35,90 | 5-8 εργάσιμες | ||
| YG-TM-SP-M20 | M20 x 2.5 | 16 | 17.5 | €42,90 | 5-8 εργάσιμες | ||
| YG-TM-SP-M22 | M22 x 2.5 | 18 | 19.5 | €53,20 | 5-8 εργάσιμες | ||
| YG-TM-SP-M24 | M24 x 3.0 | 18 | 21 | €57,90 | 1 διαθέσιμo | ||
| YG-TM-SP-M27 | M27 x 3.0 | 20 | 24 | €83,00 | 1 διαθέσιμo | ||
| YG-TM-SP-M30 | M30 x 3.5 | 22 | 26.5 | €106,00 | 5-8 εργάσιμες | ||

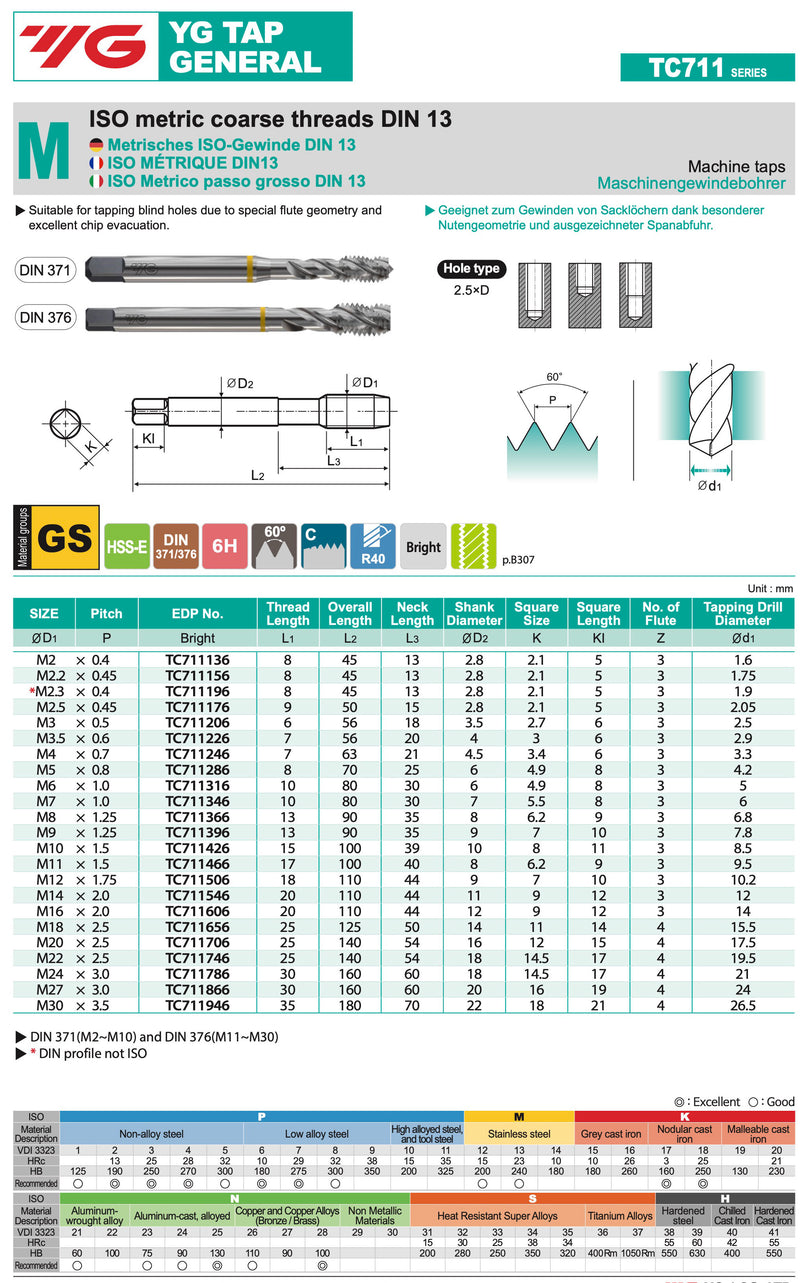

Technical Specifications:
-
Thread type: ISO metric, coarse thread DIN 13
-
Standards: DIN 371 (M2–M10) and DIN 376 (M11–M30)
-
Suitable for: blind holes
-
Hole shape: 2.5×D
-
Tool material: HSS-E
-
Thread angle: 60°
-
Coating: Bright (uncoated)
-
Groove type: R40 (right-hand thread)
-
Tolerance class: 6H
-
Available sizes: M2 to M30
-
Number of grooves: 3 or 4, depending on diameter
-
Application table: Recommended for steel, stainless steel, cast iron, copper alloys, and light metals
Description:
Industrial machine taps suitable for cutting coarse ISO metric threads DIN 13 in blind holes. They provide good chip evacuation due to the special groove geometry and right-hand form. They cover a diameter range from M2 to M30, with use in a variety of metal materials, according to the application chart. Available according to DIN 371 and DIN 376 standards, depending on the diameter.
