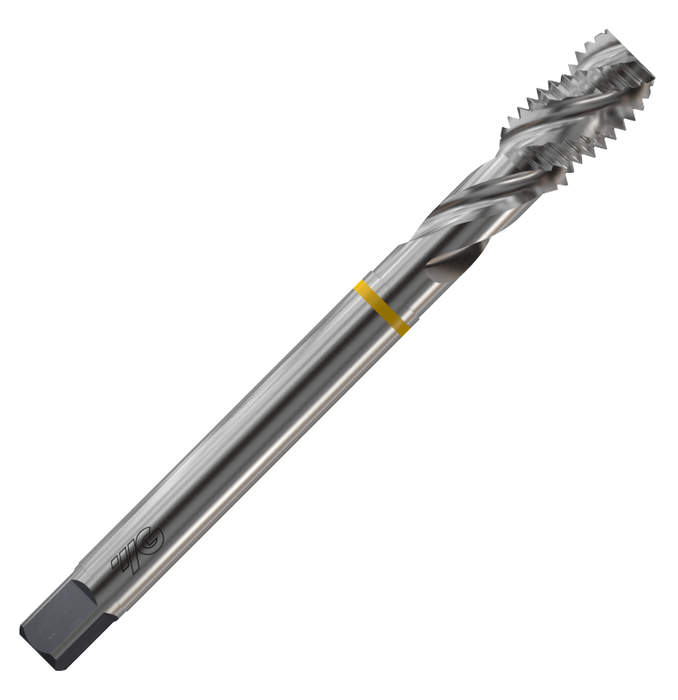

Machine Tap BSP (G)-British Pipe Thread Inch - Blind Holes
TM-SP-BSP

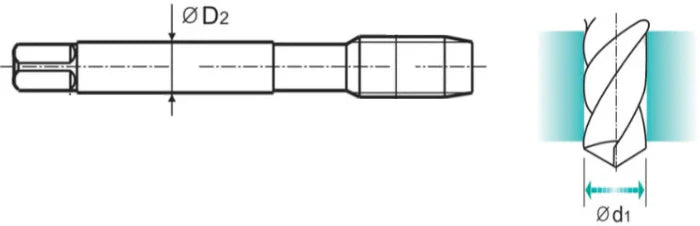

| Κωδικός | Thread | ØD2 (mm) | Ød1 (mm) | Τιμή | Στοκ | ||
|---|---|---|---|---|---|---|---|
| TM-SP-BSP-1/8-28 | 1/8" x 28 | 7 | 8.8 | €19,70 | 2 διαθέσιμα | ||
| TM-SP-BSP-1/4-19 | 1/4" x 19 | 11 | 11.8 | €26,20 | 1 διαθέσιμo | ||
| TM-SP-BSP-3/8-19 | 3/8" x 19 | 12 | 15.25 | €29,80 | 1 διαθέσιμo | ||
| TM-SP-BSP-1/2-14 | 1/2" x 14 | 16 | 19 | €43,10 | 1 διαθέσιμo | ||
| TM-SP-BSP-3/4-14 | 3/4" x 14 | 20 | 24.5 | €81,00 | 5-8 εργάσιμες | ||
| TM-SP-BSP-1-11 | 1" x 11 | 25 | 30.75 | €118,00 | 5-8 εργάσιμες | ||
Τιμές χωρίς ΦΠΑ 24%
Technical Specifications
-
Thread type: Whitworth G (BSP) pipe threads according to DIN ISO 228/1
-
Standardization: DIN 5156
-
Material: HSS-E
-
Profile angle: 55°
-
Hole type: Blind Hole, 2.5×D
-
Number of flutes: 4
-
Designed for efficient chip evacuation
-
Coating: None (Bright)
-
Cutting direction: Right-hand
-
Machining quality: C (general use)
-
Strength grade: R40
-
Suitable for threading blind holes in metals
Description
Machine tap for G type (BSP) pipe threads, according to DIN ISO 228/1 standard. Ideal for creating internal threads in blind holes, with special groove geometry for efficient chip removal. Features a 55° profile and is made of HSS-E for increased durability.
