Technical Specifications
-
Measuring range: ±0.05 mm or ±0.03 mm (depending on the model)
-
Scale subdivision value: 1 μm or 0.5 μm
-
Number format on the face: 50–0–50 or 25–0–25
-
Error limits (G, GES, GT): 1/1.2/0.7 μm or 0.5/0.6/0.4 μm
-
Measurement backlash: 0.5 μm or 0.3 μm
-
Repeatability: 0.5 μm or 0.3 μm
-
Standard: DIN 879-1 or Factory standard
-
Free travel: 2.8 mm
-
Measuring force: 1 N
-
Scale diameter: 50 mm
-
Dial color: Yellow or White
-
Protection class: IP54
-
Support spindle diameter: 8 mm
Description

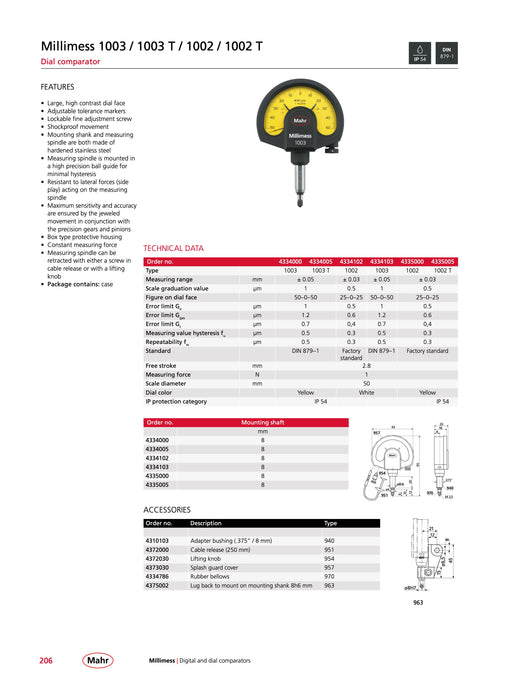

The Millimess 1003/1003 T/1002/1002 T is a high-precision dial gauge designed for accurate displacement measurements in inspection tasks and machining applications. It features a durable design with an anti-shock mechanism, stainless steel spindle, and jeweled movement to minimize backlash and lateral deviations. It is suitable for measurements with constant measuring force and spindle reset capability via screw or lever.
Mahr Factory
The German company Mahr Group, from 1861 to the present day, headquartered in Esslingen, Germany, is synonymous with precision and reliability in the field of metrology. It has established itself worldwide as a specialist in the development and manufacture of mechanical measuring instruments, from calipers, micrometers, portable surface roughness testers and up to fully automated stations for form, contour, and shaft measurement. Mahr’s deep expertise, especially in surface measurements (MarSurf) and cylindricity (MarForm), makes it a leading choice for industries that do not accept compromises in quality. By providing robust solutions both for the metrology laboratory and for the harsh production environment, Mahr ensures process control and compliance with the strictest specifications.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε., is the official representative of Mahr in Greece and we can support the entire range of its catalog, which includes more than 10,000 different product codes.
| SKU | Range - Accuracy | Protection | Color | Availability |
Price
+VAT
|
Certificate |
Cart
Quote
|
|---|---|---|---|---|---|---|---|
| MA-4334000 | ±50µm / 1µm | - | yellow scale | 5-8 business days |
+VAT
€276,00
|
5-8 business days
|
|
| MA-4334005 | ±50µm / 1µm | IP54 | IP54 - yellow scale | 5-8 business days |
+VAT
€300,00
|
5-8 business days
|
|
| MA-4334102 | ±25µm/0.5µm | - | white scale | 5-8 business days |
+VAT
€494,00
|
5-8 business days
|
|
| MA-4334103 | ±50µm / 1µm | - | white scale | 5-8 business days |
+VAT
€276,00
|
5-8 business days
|
|
| MA-4335000 | ±25µm / 0.5µm | - | yellow scale | 5-8 business days |
+VAT
€494,00
|
5-8 business days
|
|
| MA-4335005 | ±25µm / 0.5µm | IP54 | IP54 - yellow scale | 5-8 business days |
+VAT
€507,00
|
5-8 business days
|
