Technical Specifications

• Measurement units: Shore A / Shore D

• Test type:

  • Shore A: for medium hard rubber and thermoplastics

  • Shore D: for hard rubber and thermoplastics

• Measuring tip:

  • HDT-ESA: blunt 35° cone with 0.79 mm diameter

  • HDT-ESD: sharp 30° cone with SR0.1 mm radius

• Indenter recess: 2.5 mm

• Display: OLED 1.5"

• Power supply: Built-in rechargeable battery

• Data output: USB

• Weight: 300 g

• Dimensions: 150×60×50 mm

• Functions:

  • Average value up to 9 measurements

  • Time delay from 0 to 30 seconds

  • No calibration with standard block required

• Standards: ISO 48, ISO 7619, ISO 21509

• Includes: USB cable, software, power supply

• Optional: Measuring stand (code HDT-ES-STD)

Description

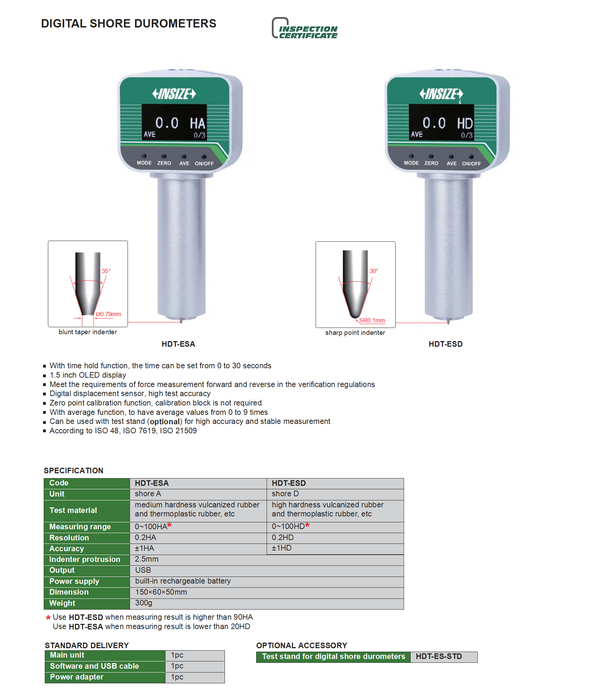

The Shore HDT-ESA and HDT-ESD digital rubber hardness testers are used to measure hardness in elastomers and thermoplastic materials. The HDT-ESA is suitable for medium hardness materials, while the HDT-ESD is for high hardness materials. They feature an OLED digital display, built-in battery, and data output capability via USB.
