Technical Specifications

• Measuring surface diameter (plate): Ø98 mm

• Maximum workpiece height: 180 mm

• Maximum measuring width: 115 mm (from the measuring point to the column)

• Dimensions: Ø200 × 500 mm

• Weight: 18 kg

• Compatibility:

  • ISH-S30A (with 1 kg weight block - included)

  • ISH-S30D (requires optional 4 kg weight block)

• Includes:

  • Measuring bench

  • 1 kg weight block (for ISH-S30A)

  • Calibration block

• Optional:

  • 4 kg weight block for ISH-S30D (code: ISH-OS2-W4)

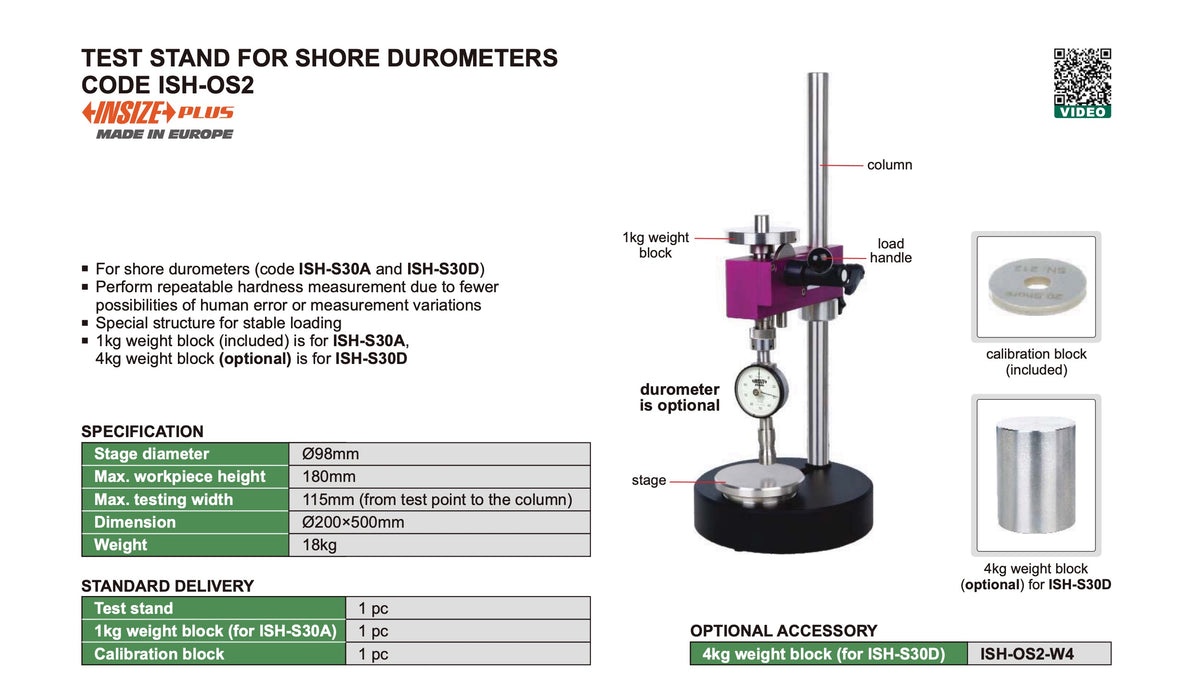

Description
The ISH-OS2 test stand is designed for use with Shore type hardness testers (ISH-S30A and ISH-S30D), offering stable and repeatable hardness measurement. The construction reduces operator errors and ensures consistent pressure through adjustable weight blocks. It includes bases and calibration blocks for immediate use.
