Description:
High-quality machine Tap from YG-1, a leading cutting tool manufacturer from Korea. It offers reliability, long service life, and excellent cutting performance even on demanding materials. Ideal for productive use, with precise threading and cutting stability, it is a premium choice for professional applications.
Machining Materials
Excellent choice for:
- (P1-5) - Common Carbon Steels - (Irons - Black - St37 - ck40)
- (P5-9) - Mild Alloyed Steels - (Steels - Structural Steels)
- (M12) - Ferritic Stainless Steels - (Series 400 - Unpolished, Annealed)
- (M13) - Martensitic Stainless Steels - (Series 400 - Painted)
- (M14) - Austenitic Stainless Steels - (Series 300 - Common INOX)
- (K15-16) - Gray - Cast Irons (2.5-4.0%C , 1.0-3.0%Si)
- (K17-18) - Ductile Cast Irons with Spheroidal Graphite (2.0-2.6%C , 1.1-1.6%Si)
- (N23-24) - Cast Aluminum - Up to 12%Si
- (N26) - Copper Alloys - Lead Alloys
- (N27) - Copper Alloys - Brass (Cu+Zn)
- (N28) - Copper Alloys - Bronze - Lead-free Alloys
Suitable but not optimal choice for:
- (P10-11) - Strong Alloyed Steels - Tool Steels - (Hard, Difficult Steels)
- (N21) - Common Forming Aluminum - Series (1xxx - 3xxx - 5xxx)
- (N22) - Common Forming Aluminum - Series (2xxx - 6xxx - 7xxx)
- (N25) - Cast Aluminum - Over 12%Si
Cutting Material
-
HSS-PM – Powder Metallurgy High-Speed Steel Improved microstructure and homogeneity compared to common high-speed steels. Offers very good wear resistance, high hardness, and thermal stability.
-
X-Coating (YG-1 Proprietary Coating) – Advanced multi-layer nanostructured coating designed by YG-1. Combines the advantages of TiAlN and AlCrN coatings, offering excellent wear resistance, high thermal stability, and improved resistance to thermal shock.

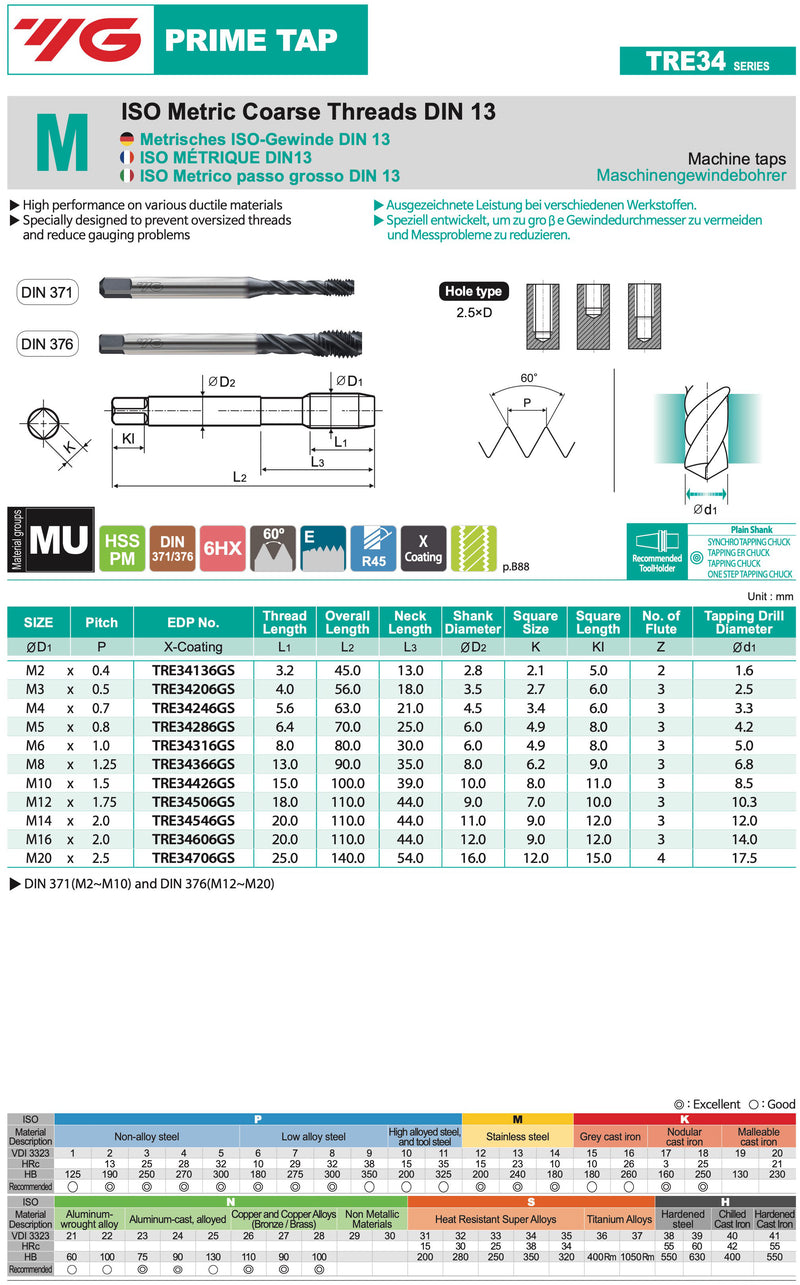

Technical Specifications:
-
Thread: (M) Metric Standard 60° DIN 13
-
Hole Type: Blind holes up to 2.5xD
-
Form: Form E - Chamfer 1.5~2 threads
-

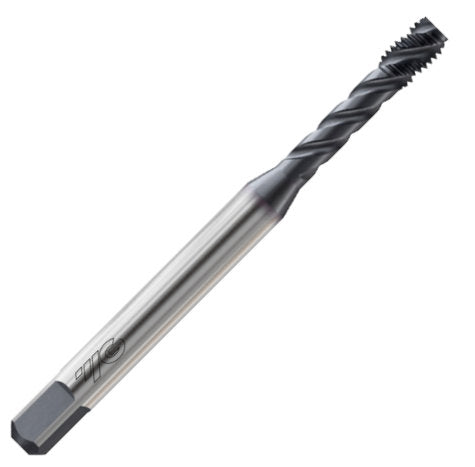

Geometry: (Spiral flute) Spiral Tap with chip guidance upwards. Produces continuous chip. Used in blind holes.
-
Tolerance: 6HX (DIN 802 part 1, special tolerance, used in materials with high elastic deformation or in forming)
-
Shank: DIN 371 (M2~M10) and DIN 376 (M11~M..)
YG-1 Factory
The YG-1 is one of the leading and fastest-growing global forces in the field of cutting tool manufacturing, with headquarters in Incheon, South Korea. The company was founded in 1981, now counting more than four decades of experience and development, and has established itself as the largest manufacturer in South Korea and one of the top five worldwide in the specialized field of end mills. The company operates 15 production plants and more than 30 subsidiaries worldwide, serving customers in more than 75 countries.
Official Representation
Our company, ΤΡΙΑΝΤΑΦΥΛΛΟΥ Κ ΣΙΑ Ε.Ε. is the official representative of YG-1 in Greece. We have more than 3,000 YG-1 product codes in stock, a number that continues to increase. In addition, we can support the entire range of the YG-1 catalog, which includes more than 50,000 different product codes.
The YG-1 offers one of the most comprehensive ranges of cutting tools worldwide, covering every metal machining requirement. Its production is based on modern technology and advanced materials for maximum performance and service life.
| SKU | Thread | ØD2 (mm) | Ød1 (mm) | Availability |
Price
+VAT
|
Cart
Quote
|
|---|---|---|---|---|---|---|
| TM-SP-PRIME-2 | M2x0.4 | 2.8 | 1.6 | 5-8 business days |
+VAT
€25,10
|
|
| TM-SP-PRIME-3 | M3x0.5 | 3.5 | 2.5 | 5-8 business days |
+VAT
€17,40
|
|
| TM-SP-PRIME-4 | M4x0.7 | 4.5 | 3.3 | 5-8 business days |
+VAT
€17,70
|
|
| TM-SP-PRIME-5 | M5x0.8 | 6 | 4.2 | 5-8 business days |
+VAT
€18,40
|
|
| TM-SP-PRIME-6 | M6x1 | 6 | 5 | 1 available |
+VAT
€18,80
|
|
| TM-SP-PRIME-8 | M8x1.25 | 8 | 6.8 | 5-8 business days |
+VAT
€25,90
|
|
| TM-SP-PRIME-10 | M10x1.5 | 10 | 8.5 | 5-8 business days |
+VAT
€31,80
|
|
| TM-SP-PRIME-12 | M12x1.75 | 9 | 10.3 | 5-8 business days |
+VAT
€41,80
|
|
| TM-SP-PRIME-14 | M14x2 | 11 | 12 | 5-8 business days |
+VAT
€50,00
|
|
| TM-SP-PRIME-16 | M16x2 | 12 | 14 | 5-8 business days |
+VAT
€61,00
|
|
| TM-SP-PRIME-20 | M20x2.5 | 16 | 17.5 | 5-8 business days |
+VAT
€104,00
|
